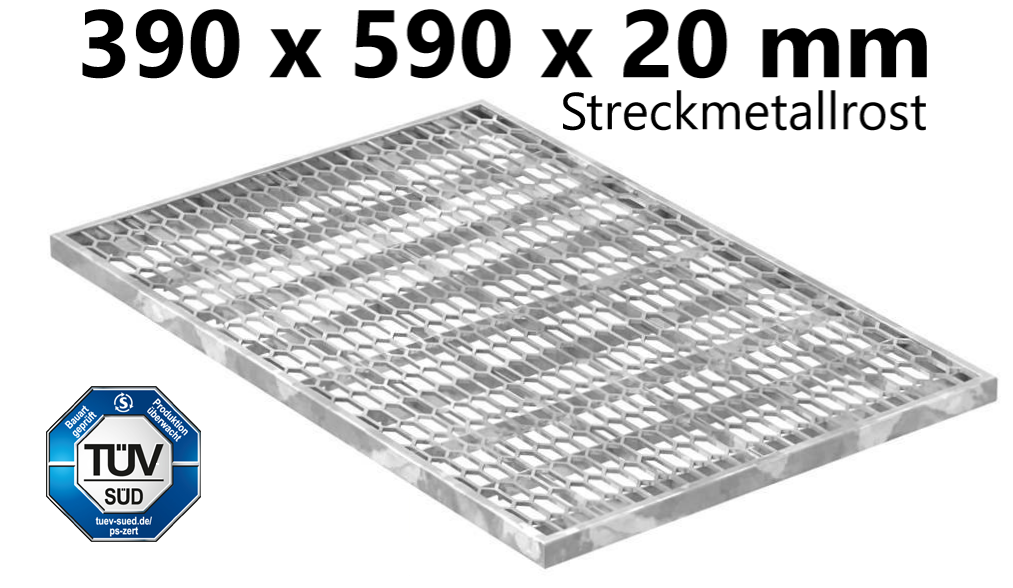

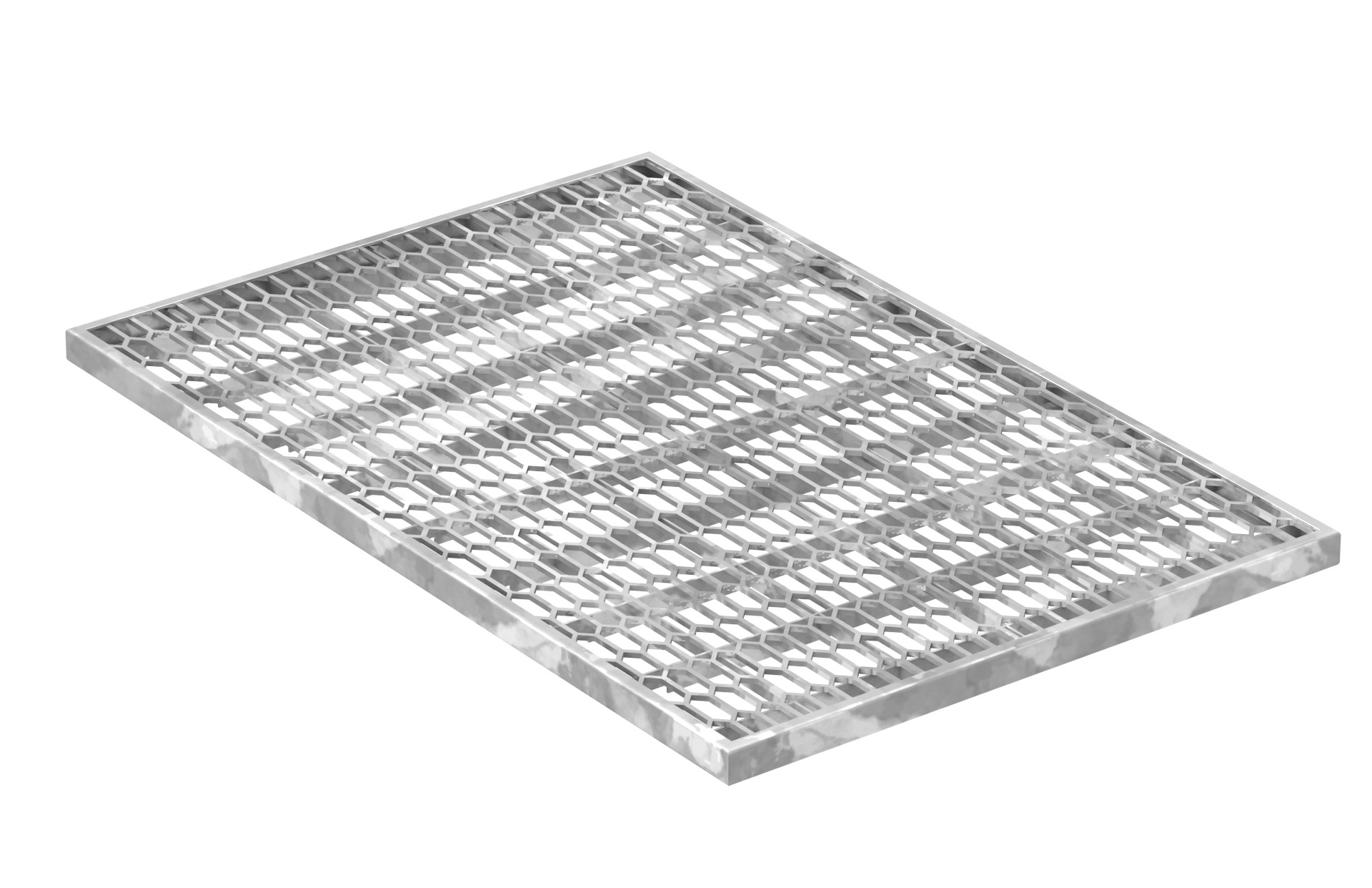

Expanded metal grating 390x590x20 mm | made from S235JR (St37-2), hot-dip galvanised
Stock:
78
Product number:
23.3959STRECK.7
EAN:
4251412901089
Weight:
3.014 kg
Description
Product information "Expanded metal grating 390x590x20 mm | made from S235JR (St37-2), hot-dip galvanised"
Expanded metal grating 390x590x20 mm | made from S235JR (St37-2), hot-dip galvanised
[ Technical details ] S235JR (St37-2), hot-dip galvanised

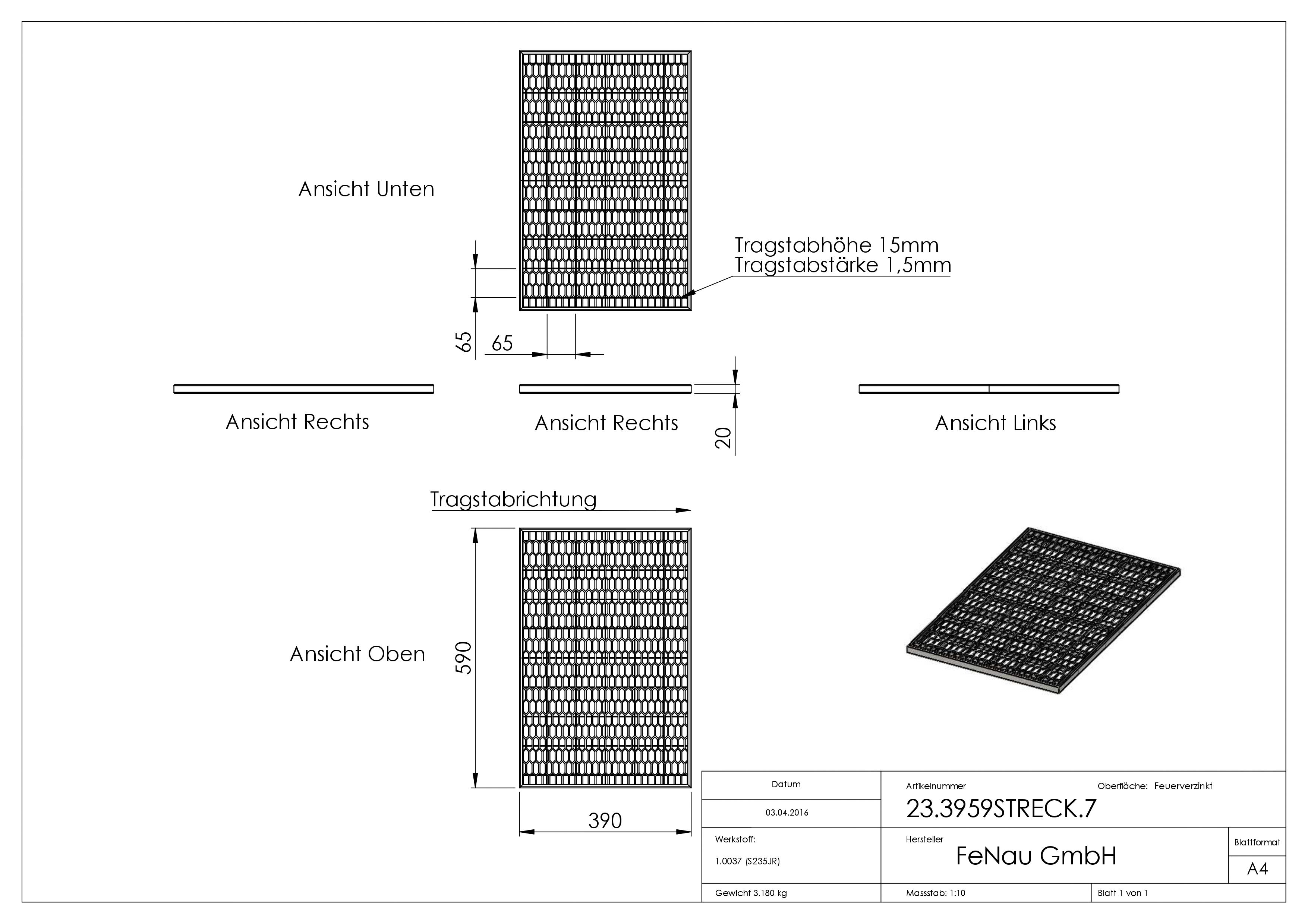

[ Specific details ] Length (support bar direction): 390 mm – lowered; Width (cross-bar direction): 590 mm; with 5 mm expanded metal overlay; total height: 25 mm; cross-bar (height/material thickness): 20/1.5 mm

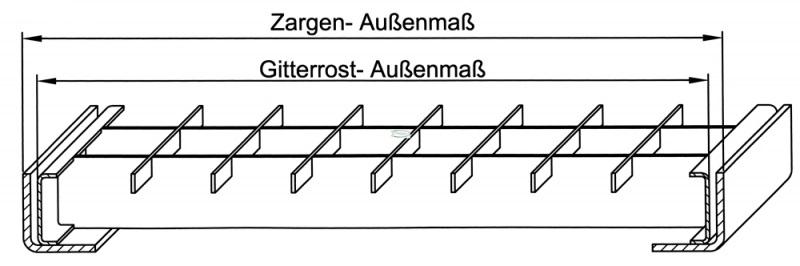

[ Further specific details ] with U-profile edging
Properties
| Breite: | 600 mm |
|---|---|
| Höhe: | 20 mm |
| Länge: | 400 mm |
| Maschenweite | Steps | Drahtgewebe: | 30/10 mm |
| Oberfläche: | Feuerverzinkt |
Skip the product gallery
£28.45*
Accessories
23.406020.7
Frame | Dimensions: 400x600x23 mm | for grating height 20 mm | made from S235JR (St37-2), hot-dip galvanised
Frame | Dimensions: 400x600x23 mm | for grating height 20 mm | made from S235JR (St37-2), hot-dip galvanised
[ Technical details ] S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length: 400 mm; Width: 600 mm; Height: 23 mm for grating height: 20 mm
[ Further specific details ] Angle steel dimensions: 23/16/2 mm; with 2 small recesses (wall anchors) on each side
Available, : 1-3 days
