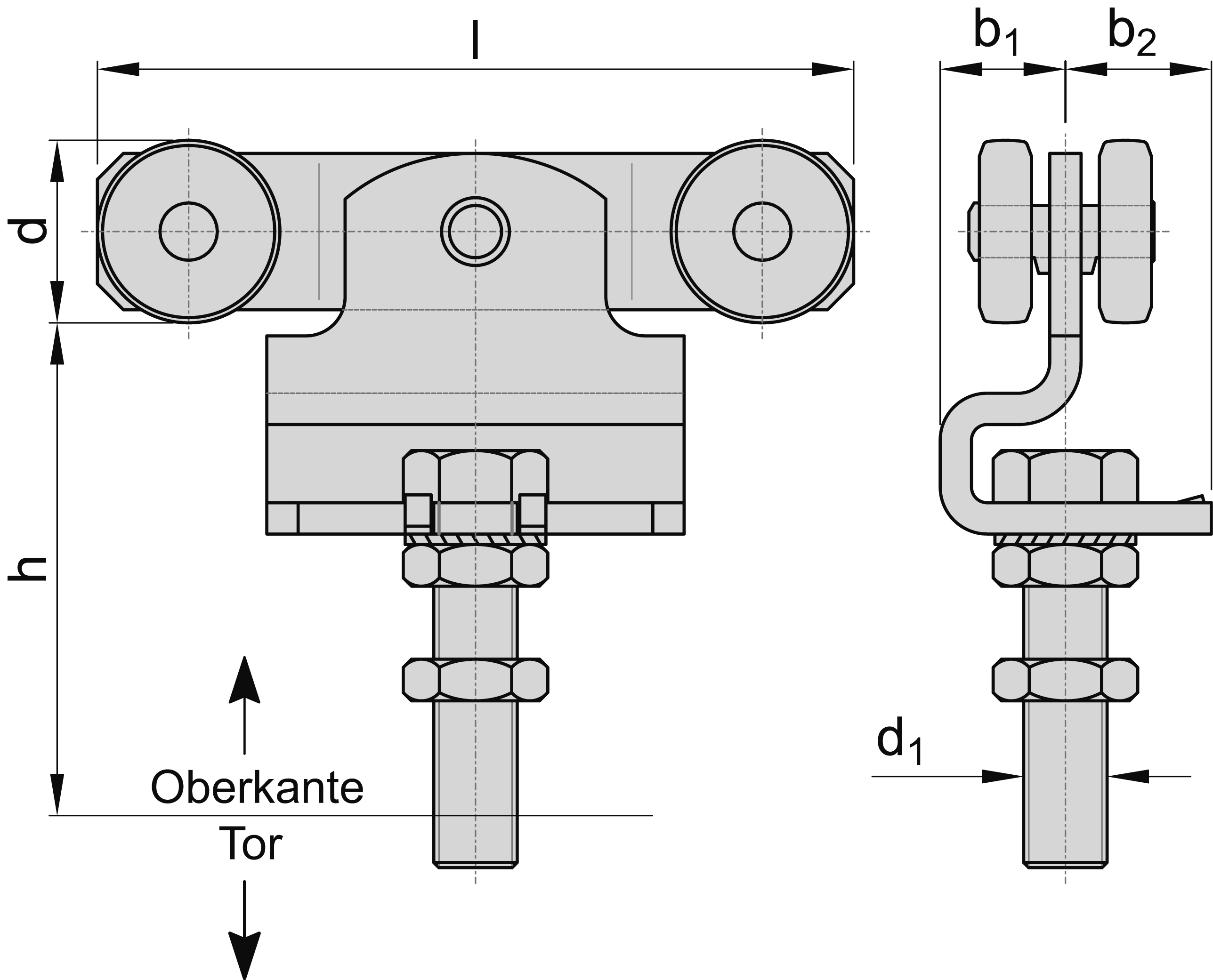

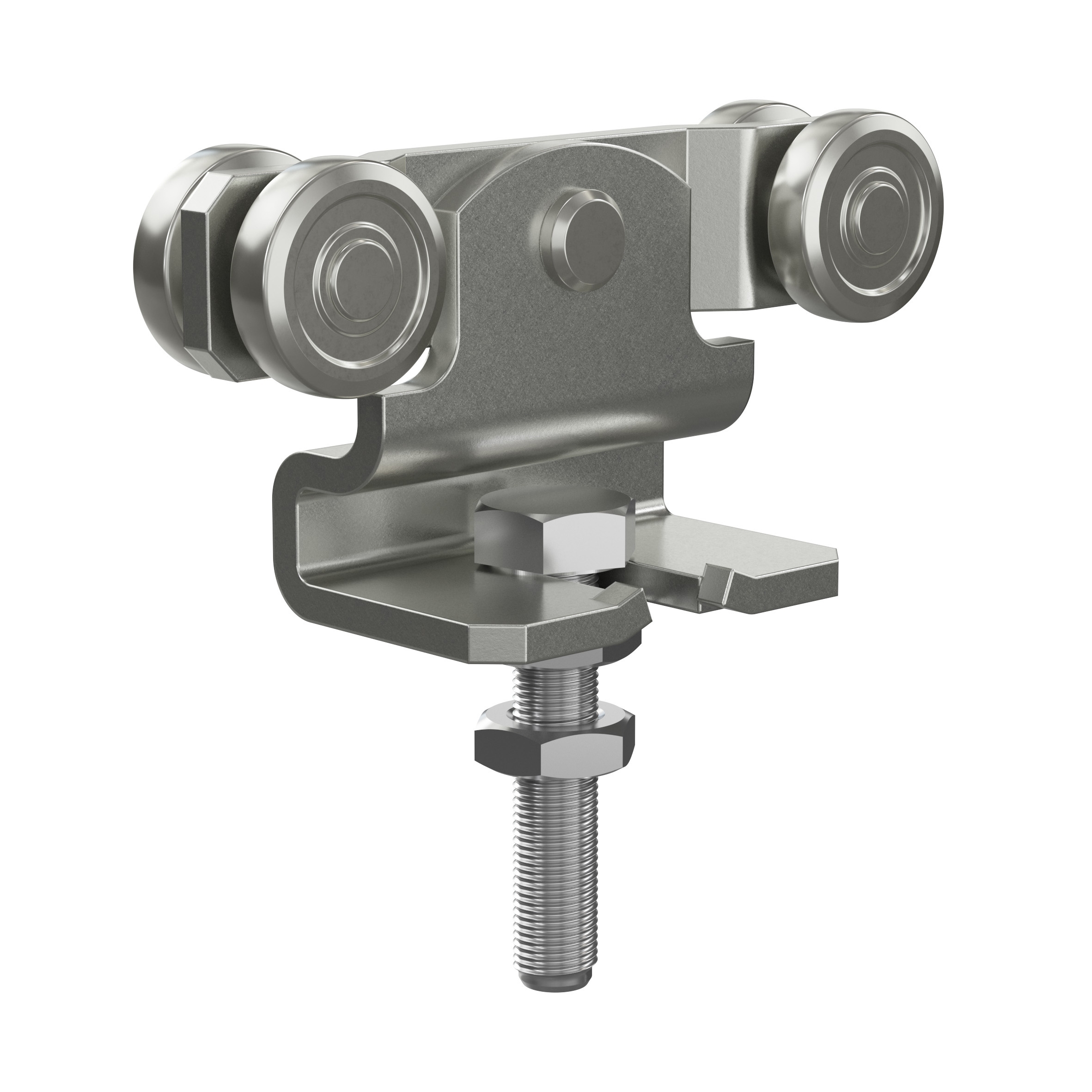

Double roller, size 0 Made of S235JR steel, electro-galvanised Dimension b1: 16 mm Dimension b2: 16 mm Dimension d: 22 mm Thread: M 10 Dimension h: 47–61 mm Dimension l: 102 mm Dimension h = min./max. distance from bottom edge of roller to top edge of door

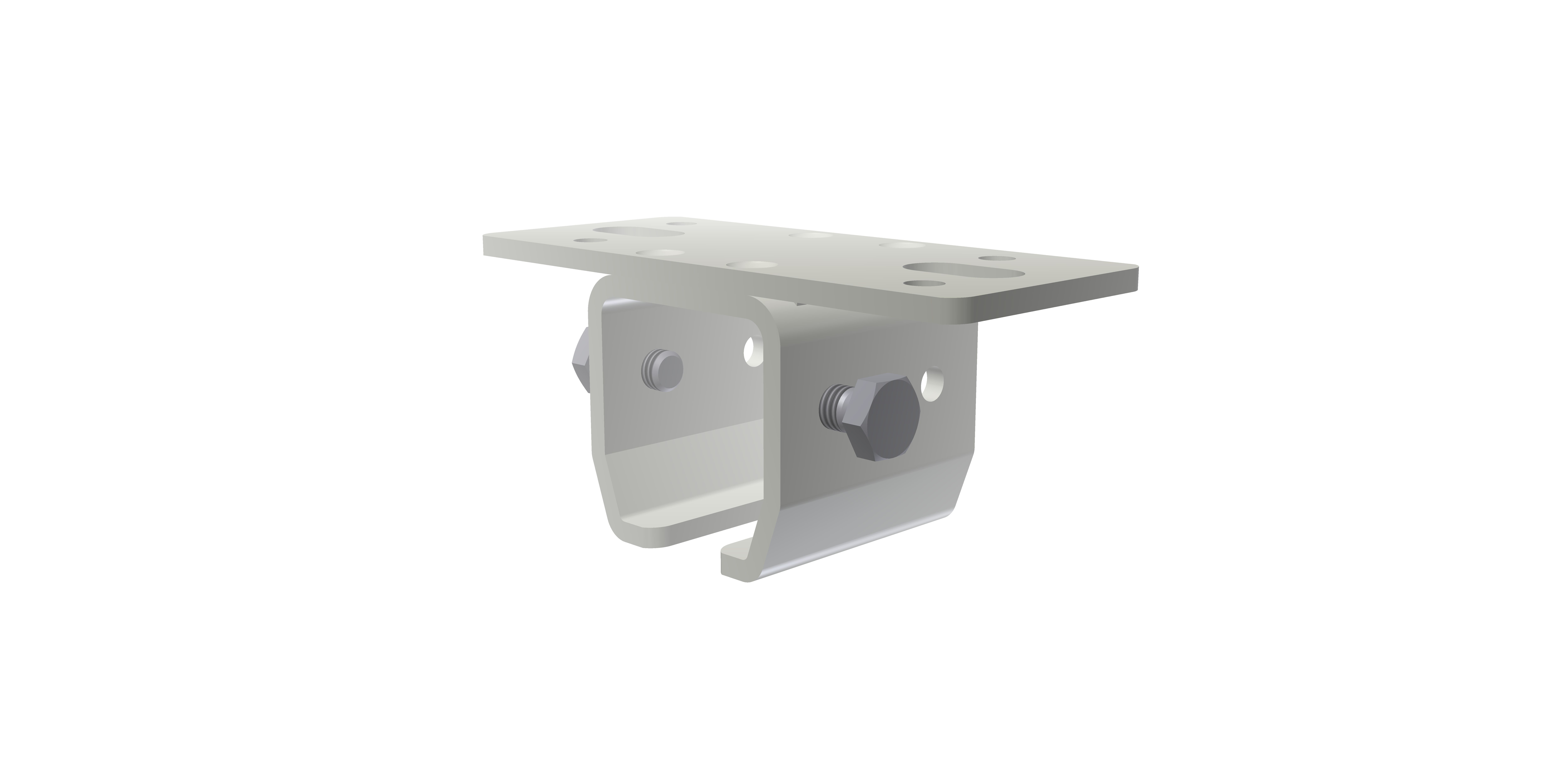

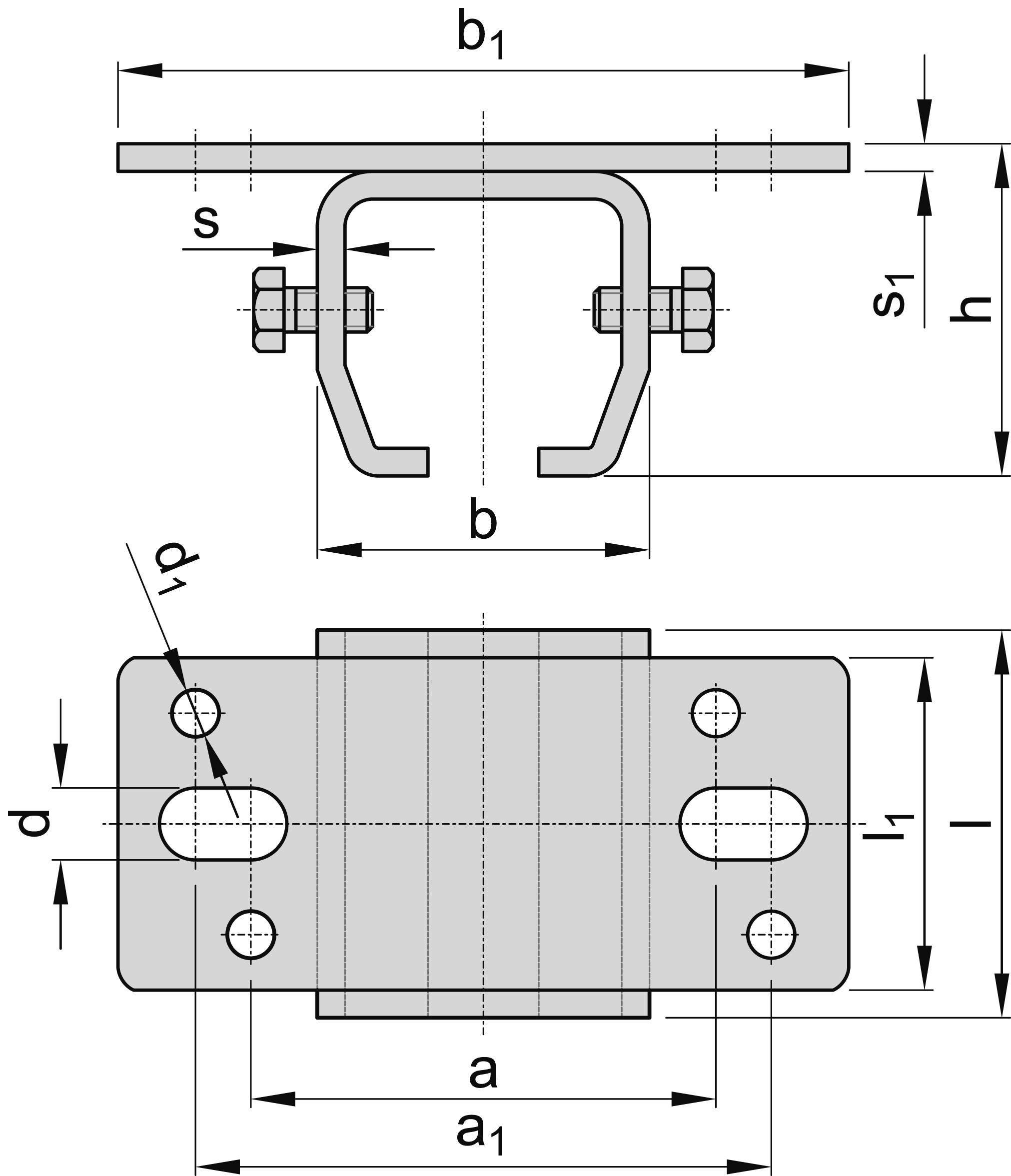

Ceiling mounting bracket, size 0 made of S235JR steel, electro-galvanised Dimension a: 55 mm Dimension a1: 71 mm Dimension b: 38 mm Dimension b1: 92 mm Dimension d: 9 mm Dimension d1: 5 mm Dimension h: 41 mm Dimension l: 40 mm Dimension l1: 40 mm Dimension s: 3 mm Dimension s1: 3 mm

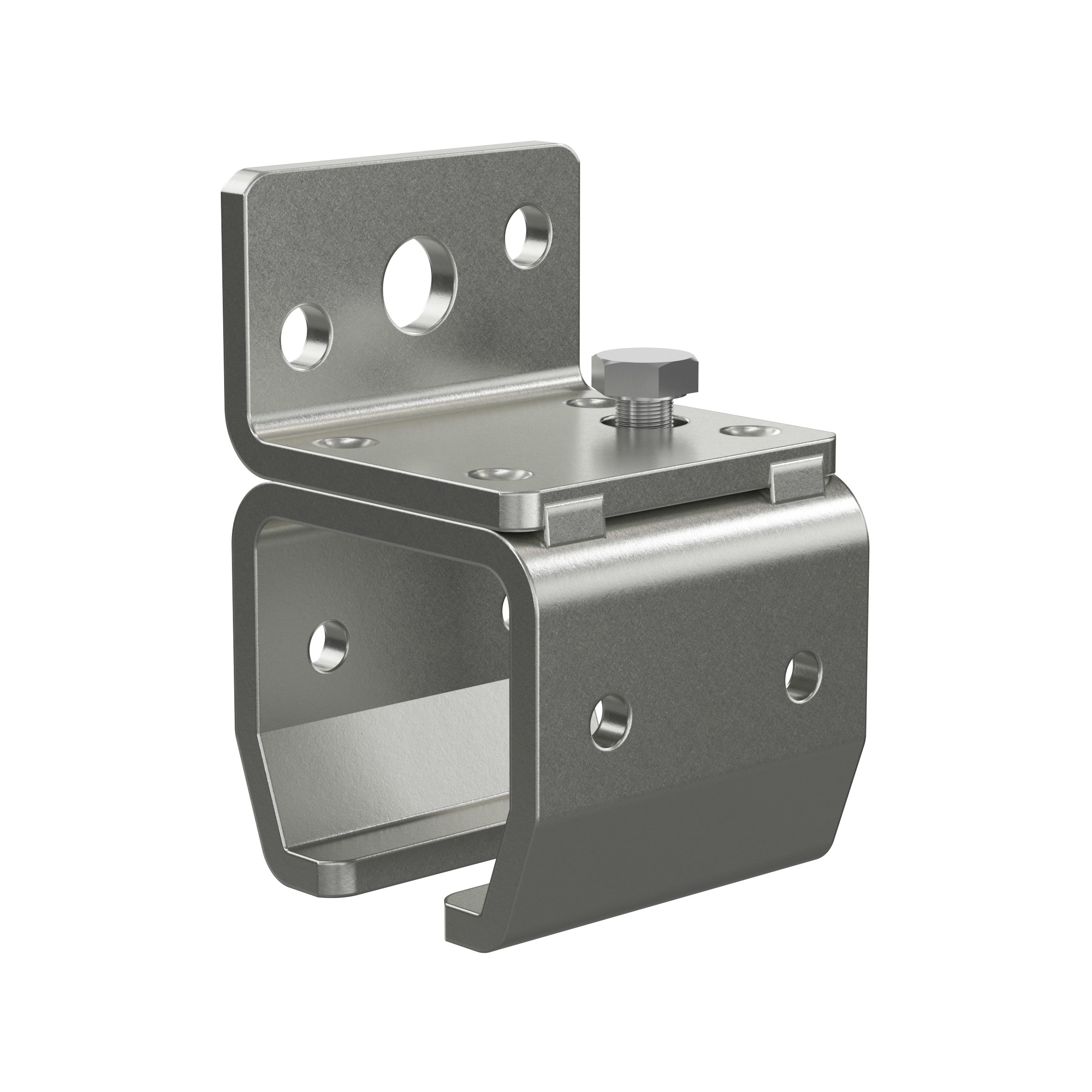

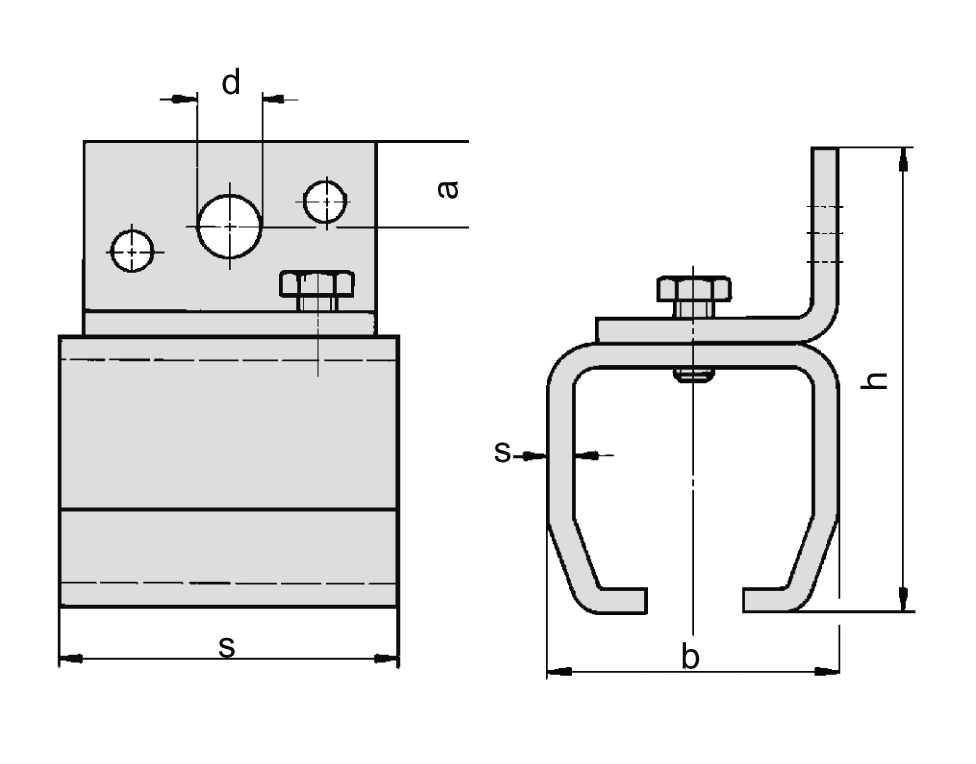

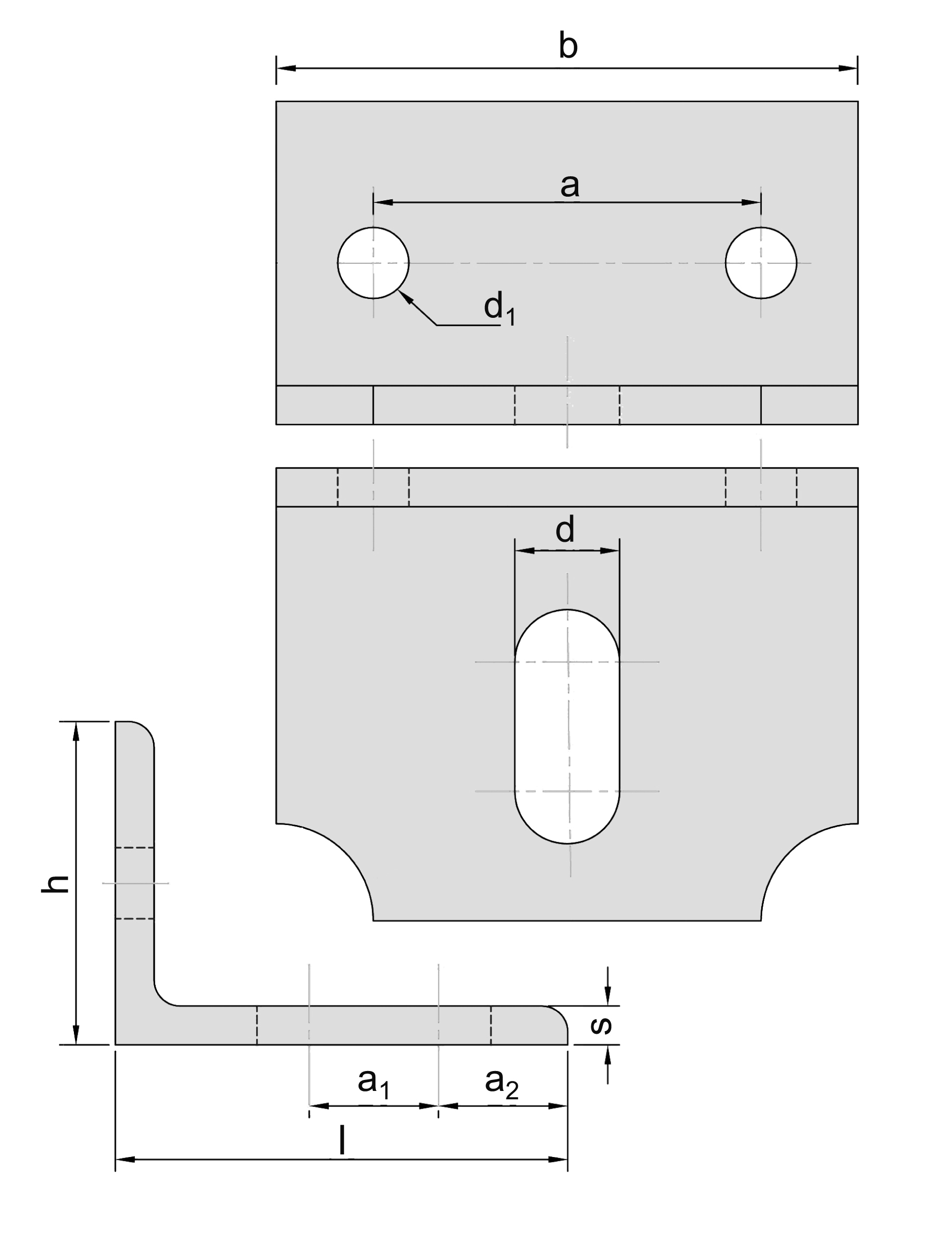

Wall mounting bracket, size 0 made of S235JR steel, electro-galvanised Dimension a: 10 mm Dimension b: 38 mm Dimension b1: 39 mm Dimension b2: 20 mm Dimension d: 9 mm Dimension d1: 5 mm Dimension h: 63 mm Dimension l: 40 mm Dimension s: 3 mm

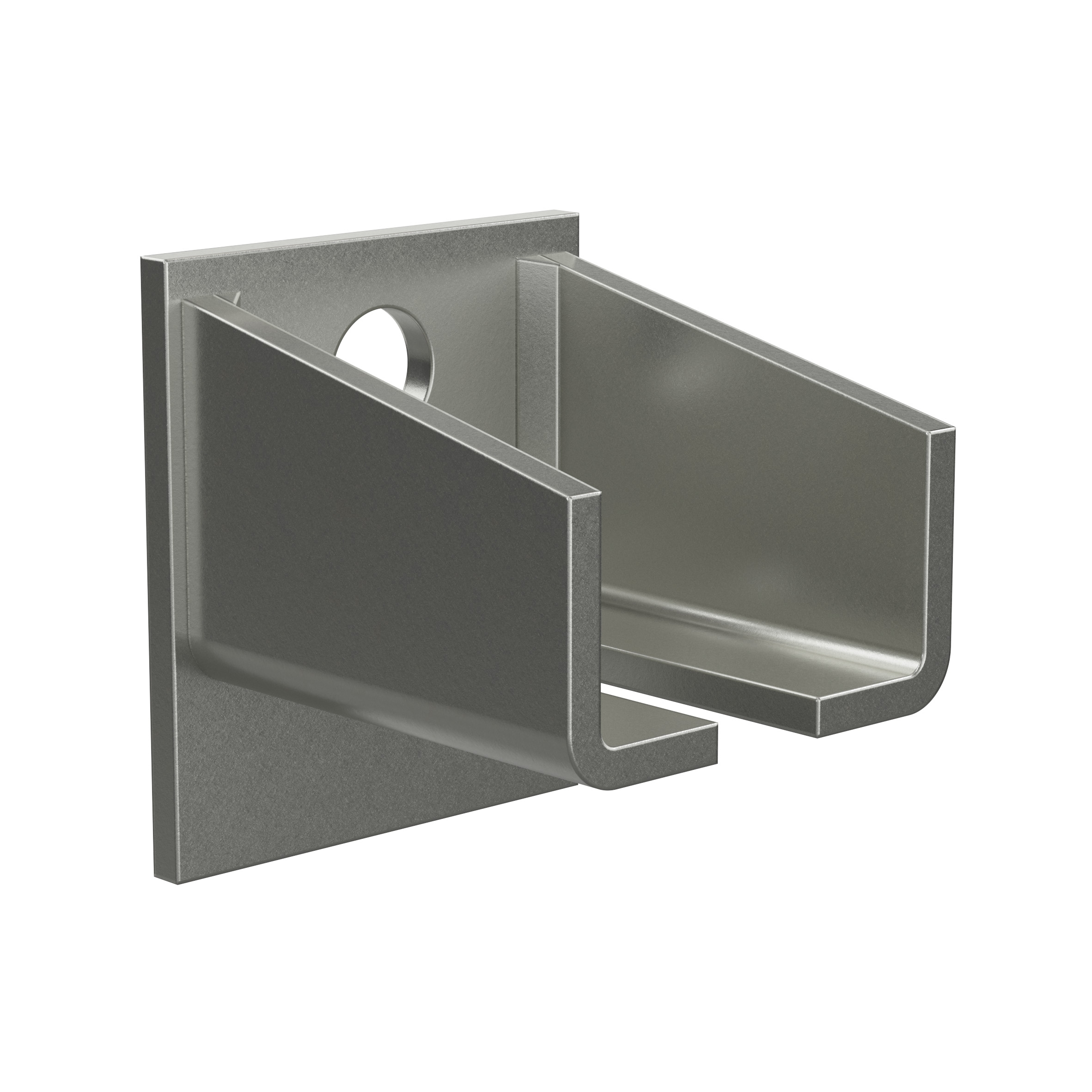

Single bracket, size 0, for a single rail made of S235JR steel, hot-dip galvanised Length l: 53 mm Shank Ø b: 60 mm Dimension a: 15 mm Dimension d: 13 mm Dimension f max: 43 mm Dimension v: 20–45 mm Dimension h: 50 mm

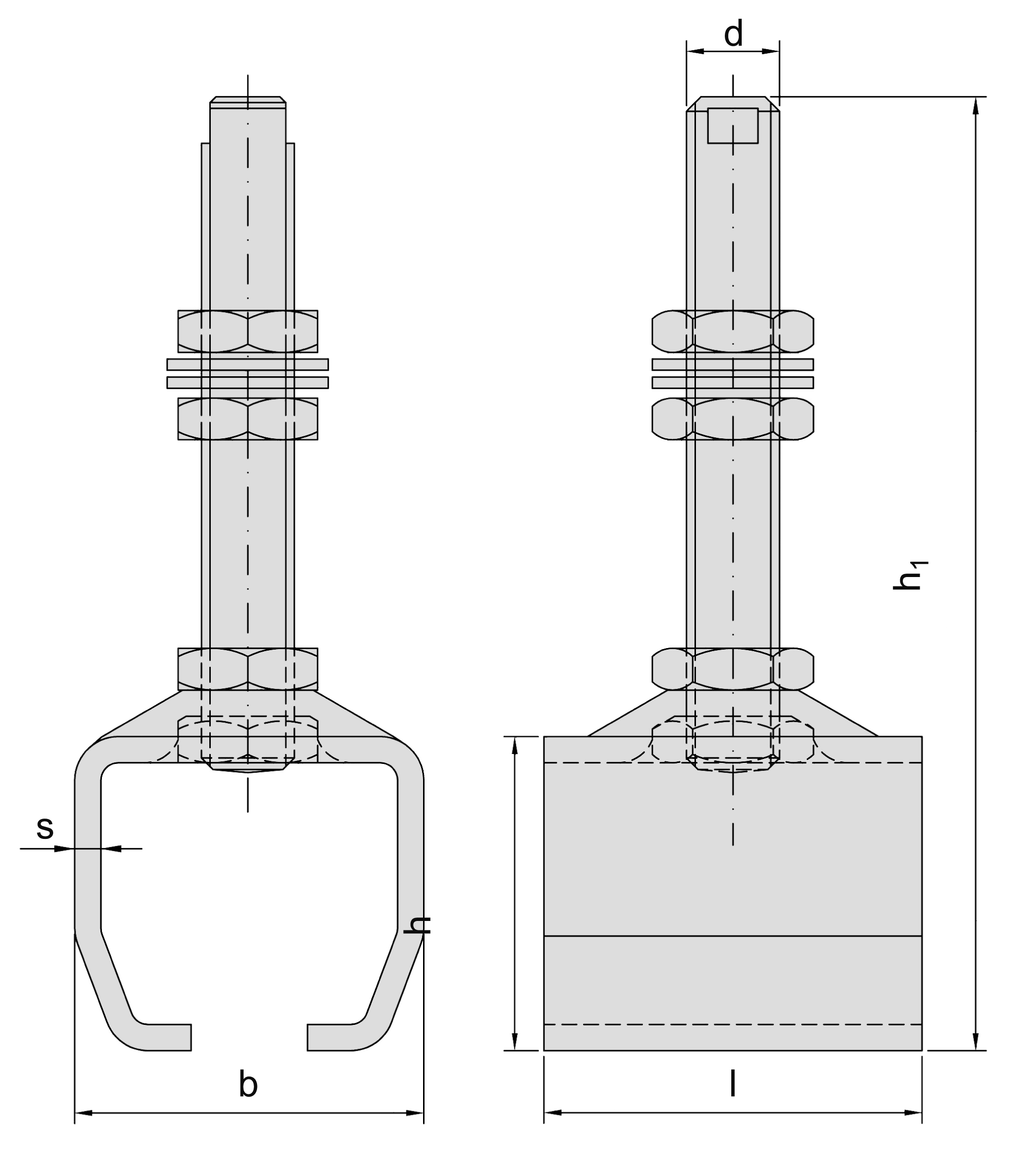

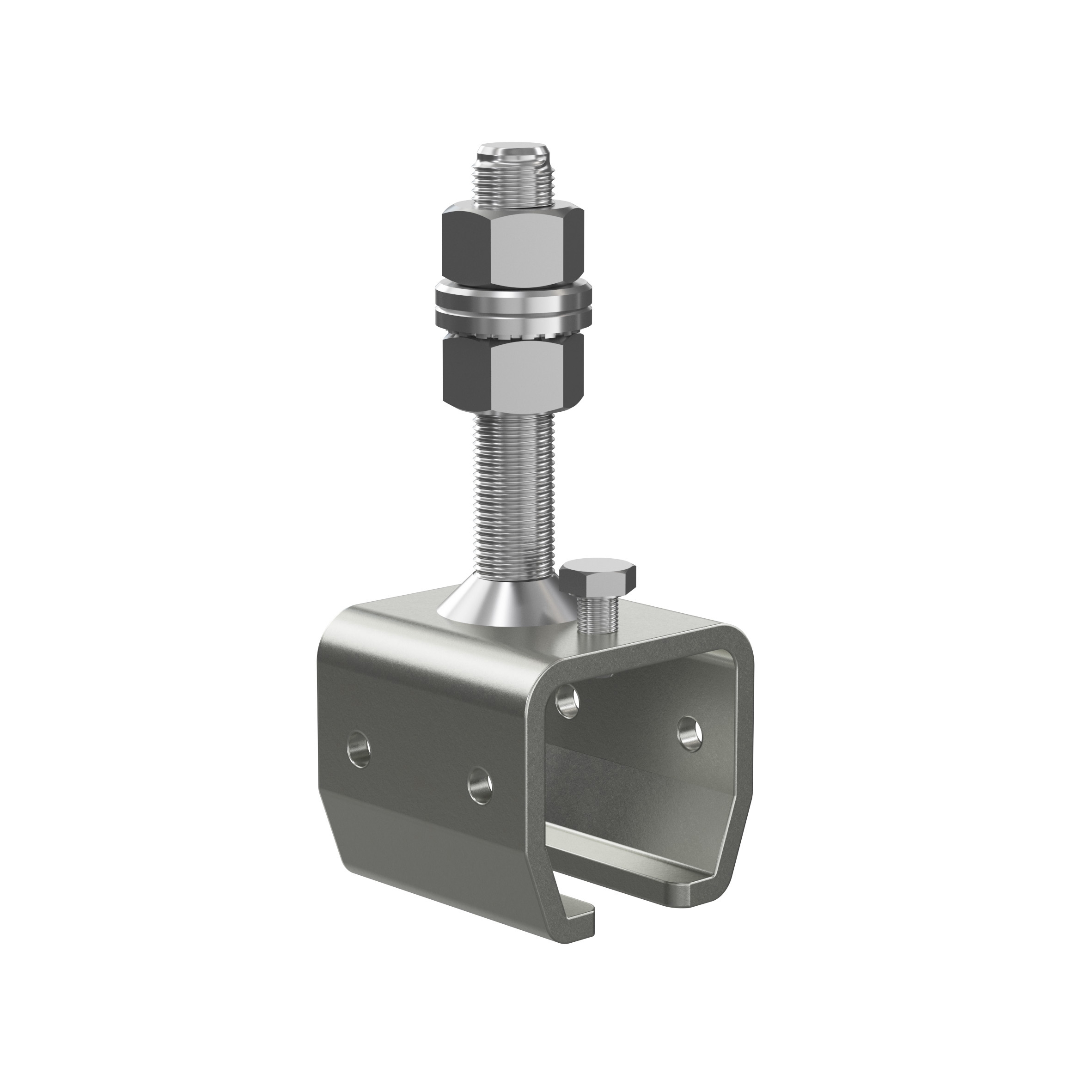

Sleeve size 0, height/side adjustment MEA 10335505 Made of S235JR steel, electro-galvanised Dimension b: 38 mm Thread: M10 Dimension h: 98 mm Dimension h1: 38 mm Dimension l: 40 mm Dimension s: 3 mm

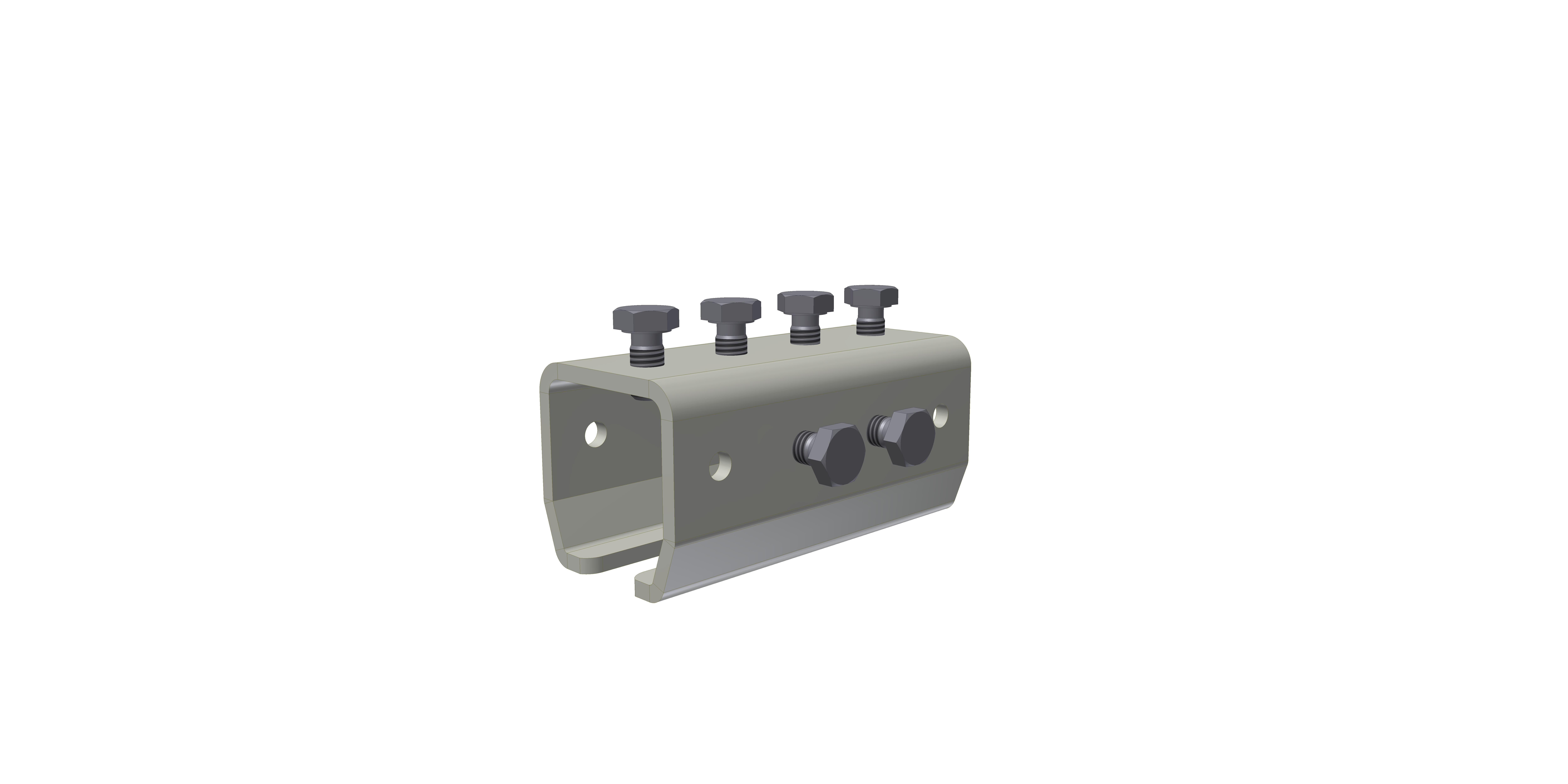

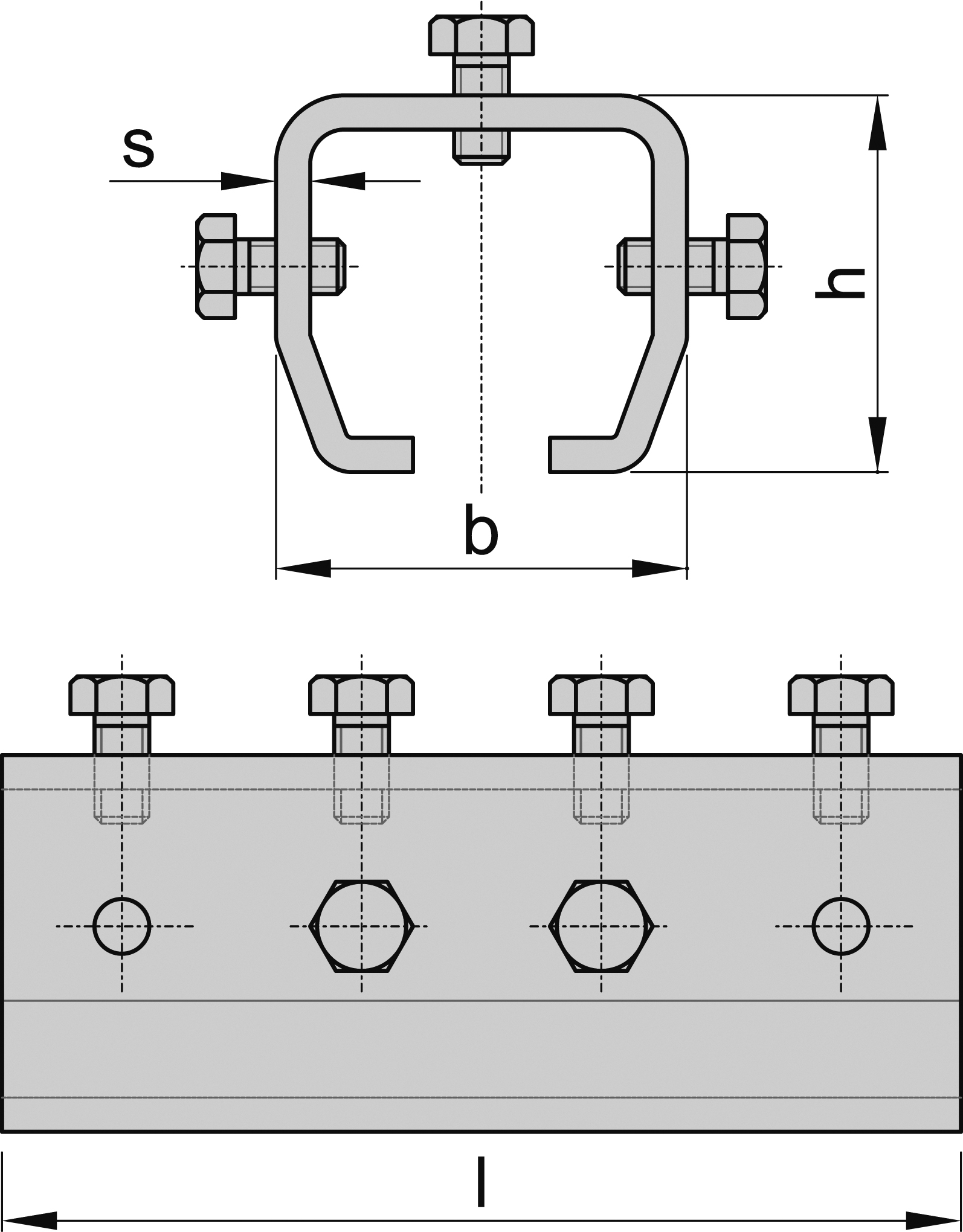

Connecting sleeve, size 0 made of S235JR steel, electro-galvanised Dimension b: 38 mm Dimension h: 38 mm Dimension l: 80 mm Dimension s: 3 mm

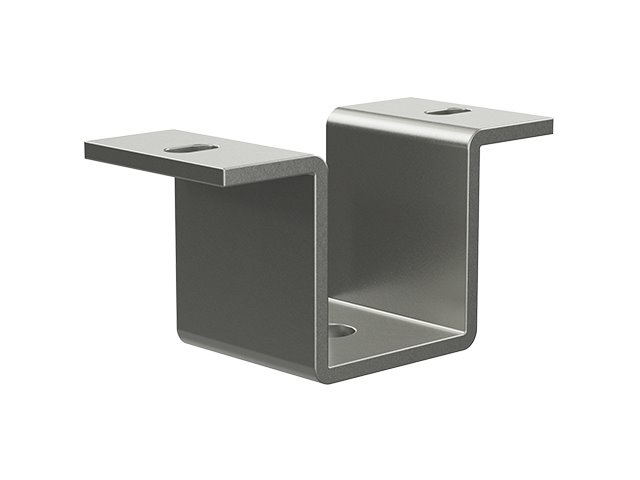

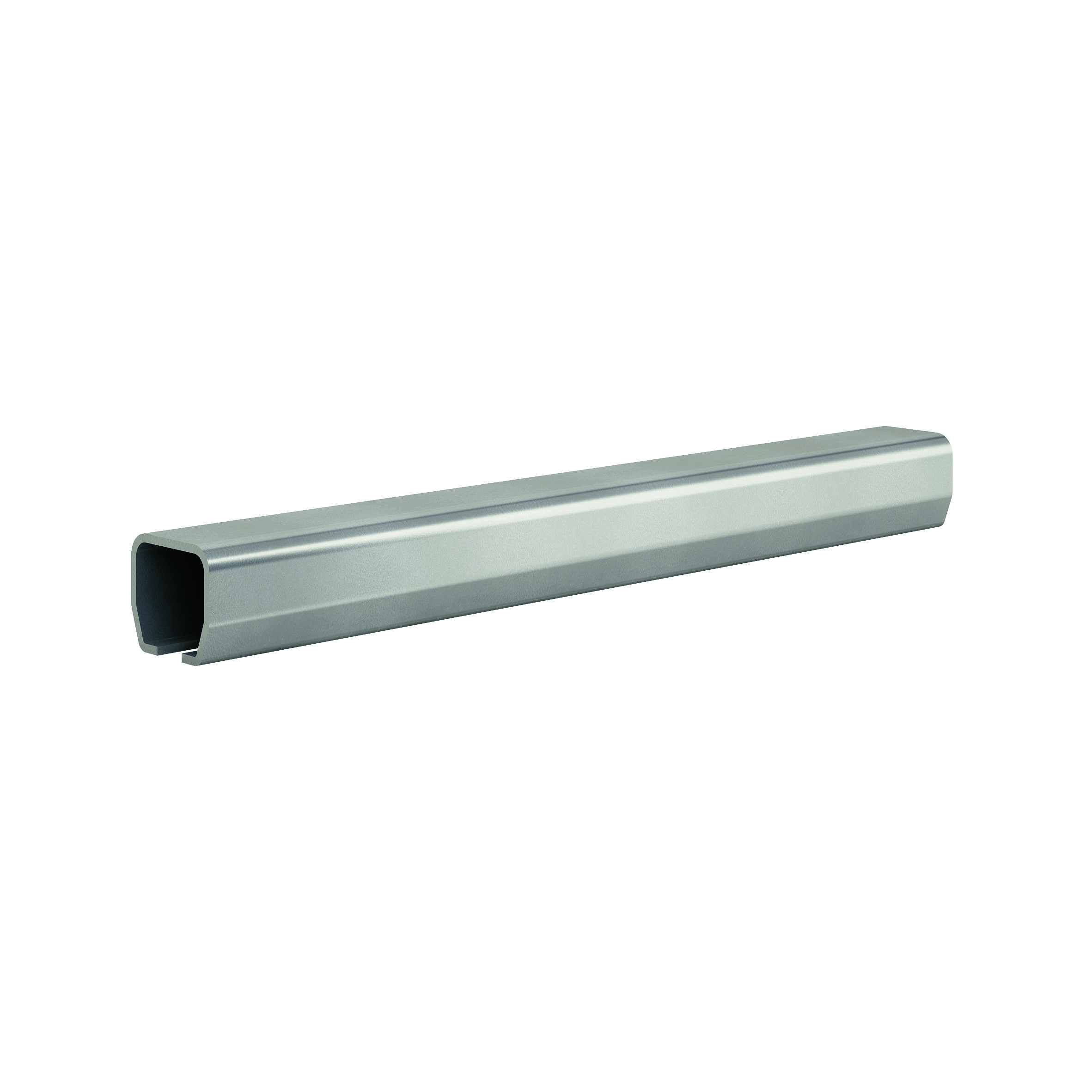

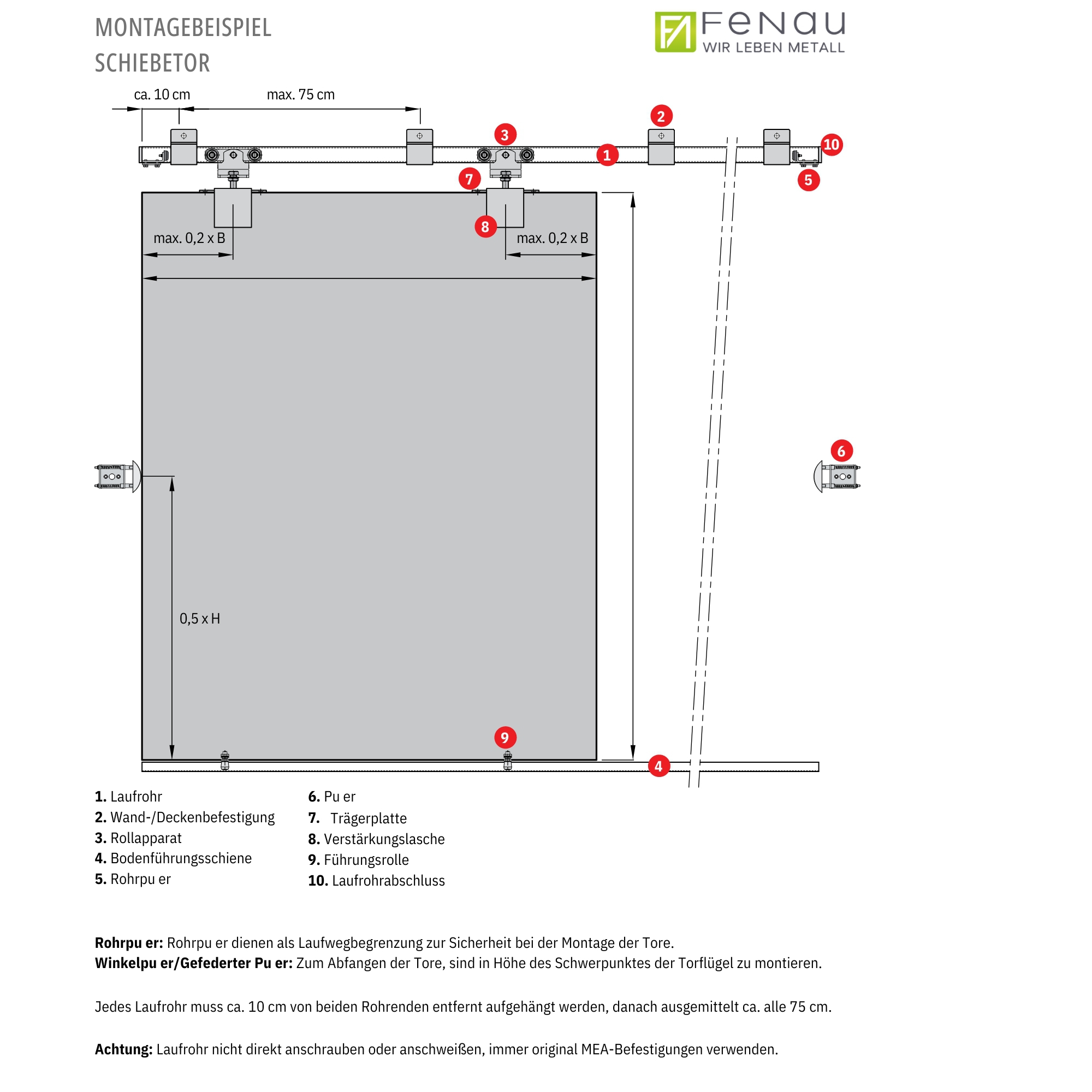

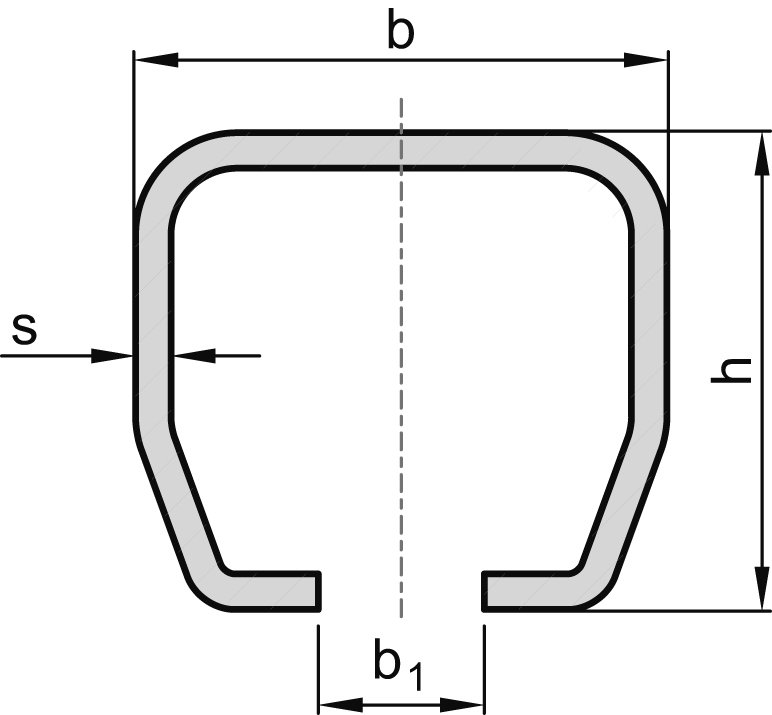

MEA Single Ceiling Bracket, Size No. 0 | Item No. 10335801 The ceiling bracket supports the duct below the ceiling. When used in conjunction with H/S sockets, the system can be adjusted both vertically and horizontally. This original component from MEA Metal Applications is available in size No. 0: hot-dip galvanised finish. Why choose this componentElectro-galvanised – protected against the elements for standard outdoor useDimensionally compatible with all MEA components in size No. 0Available individually or in packs of 10 Application and installationThe bracket is fixed to the ceiling; the fixing materials must be selected by the client according to the substrate. H/S sleeves must be ordered separately. Technical dataManufacturerMEA Metal ApplicationsMEA item number10335801Product typeSingle ceiling bracketMEA sizeNo. 0Width40 mmHeight48 mmLength102 mmMaterial/wall thickness3 mmBore diameter13 mmMaterialSteelSurfaceelectro-galvanisedWeight per piece0.2 kgPackaging unit10 piecesFurther MEA dimensions (mm)w 40 · d 13 · h 48 · l 102 · t 3 · v 30–70 Contents1 ceiling bracket. H/S sleeves and fixing materials are not included. Compatible components from the MEA systemTo ensure the system operates correctly, all components must have the same MEA size. These items are compatible:H/S socket size No. 0 – Item No. 60.0214.7Pipe, size No. 0 – Item No. 60.0000.7 What to look out for when selecting componentsAll components of an MEA sliding gate system are designed to work together. Ensure that the guide rail, roller assembly, fixings and accessories are all the same MEA size. All dimensions are approximate figures according to MEA and may vary within the usual technical tolerances. Not sure which size is right for your gate? Tell us the gate’s weight, width and installation type – we’ll put together the right components for you.
