Garage grating | Dimensions: 590 x 590 x 40 mm, 30/30 mm | made from S235JR (St37-2), hot-dip galvanised

Skip the photo gallery
Garagen-Gitterrost - Masse- 590x590x40 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-59593040.7
Garagen-Gitterrost - Masse- 590x590x40 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-59593040.7
Garagen-Gitterrost - Masse- 590x590x40 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-59593040.7
Garagen-Gitterrost - Masse- 590x590x40 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-59593040.7
Garagen-Gitterrost - Masse- 590x590x40 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-59593040.7
Garagen-Gitterrost - Masse- 590x590x40 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-59593040.7
Garagen-Gitterrost - Masse- 590x590x40 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-59593040.7
Garagen-Gitterrost - Masse- 590x590x40 mm 30-30 mm - aus S235JR -St37-2- im Vollbad feuerverzinkt-23-59593040.7

£30.73*

Prices exclude VAT and are subject to delivery charges

Stk
Product number: 23.59593040.7
EAN: 4251412900839
Weight: 7.76 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Garage grating | Dimensions: 590 x 590 x 40 mm, 30/30 mm | made from S235JR (St37-2), hot-dip galvanised"

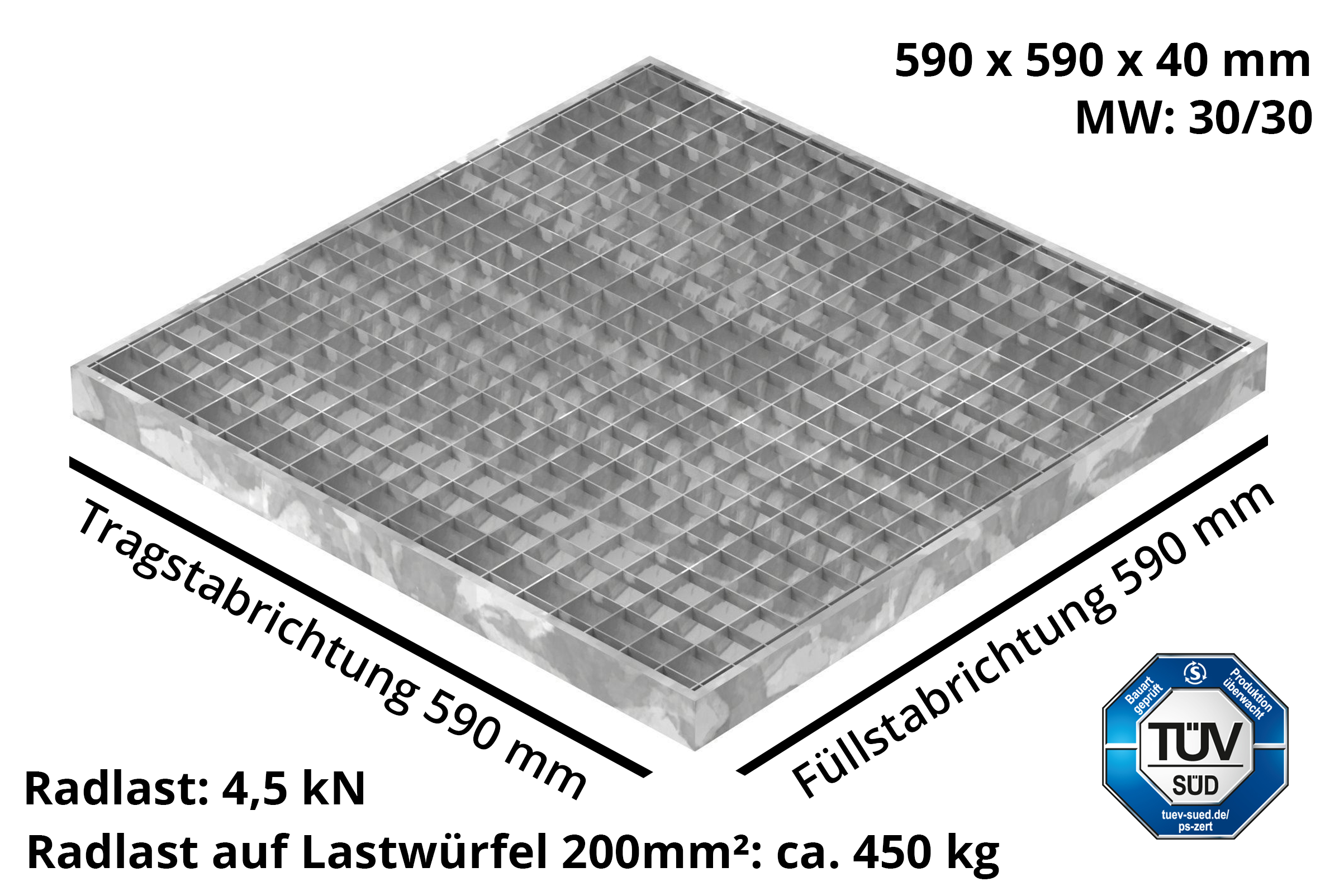

Garage grating | Dimensions: 590x590x40 mm, 30/30 mm | Made from S235JR (St37-2), hot-dip galvanised

[ Technical details ] S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (crossbar direction): 590 mm; Width (cross-bar direction): 590 mm; Grating height: 40 mm; Cross-bar (height/material thickness): 40/1.5 mm; Mesh size: 30/30 mm
[ Further specific details ] Permissible wheel load: 4.50 kN
[ Application note ] Caution: Cross-bar ends must be supported!

Properties
Höhe: 20 mm
Länge: 590 mm
Maschenweite | Steps | Drahtgewebe: 30/30 mm
Oberfläche: Feuerverzinkt
Breite: 590 mm

Product safety (GPSR)

Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230

Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.

All product safety information →  ·  Your legal guarantee rights →

Skip the product gallery

Accessories

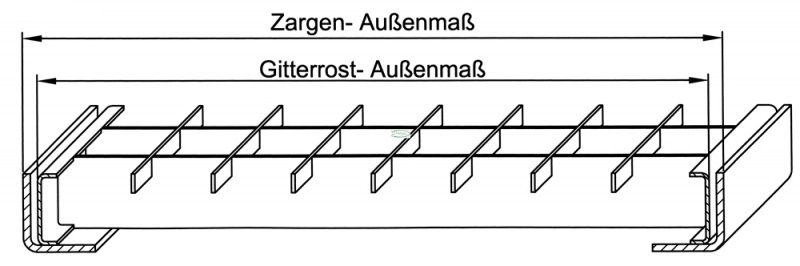

Zarge - Masse- 600x600x43 mm - fuer Rosthoehe 40 mm - aus S235JR -St37-2- bandverzinkt-23-606040.7
Stk
23.606040.7
Frame | Dimensions: 600x600x43 mm | for grating height 40 mm | made of S235JR (St37-2), hot-dip galvanised
Frame | Dimensions: 600x600x43 mm | for grating height 40 mm | made from S235JR (St37-2), hot-dip galvanised [ Technical details ] S235JR (St37-2), hot-dip galvanised [ Specific details ] Length: 600 mm; Width: 600 mm; Height: 43 mm for grating height: 40 mm [ Further specific details ] Angle steel dimensions: 43/16/2 mm; with 2 small recesses (wall anchors) on each side

Available, : 1-3 days

£17.18*
Gitterrostklemme fuer Rosthoehe 40-50 mm MW 30-30 mm aus St37- feuerverzinkt-26-KLEMME0180.7 Gitterrostklemme fuer Rosthoehe 40-50 mm MW 30-30 mm aus St37- feuerverzinkt-26-KLEMME0180.7
Stk
26.KLEMME0180.7
Grating clamp for grating height 40–50 mm, MW 30/30 mm, made of St37 steel, hot-dip galvanised
Grating clamp (complete set) | for grating height: 40–50 mm | mesh size 30/30 mm | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised; for grating height: 40–50 mm; for mesh size: 30/30 mm [ Specific details ] comprising: upper bracket (swallowtail), lower clamp, M8 x 80 mm hexagon head screw and M8 square nut

Available, : 1-3 days

£1.21*
Doppelklemme fuer Rosthoehe 40-50 mm MW 30-30 mm aus St37- feuerverzinkt-26-DKLEMME0180.7 Doppelklemme fuer Rosthoehe 40-50 mm MW 30-30 mm aus St37- feuerverzinkt-26-DKLEMME0180.7
Stk
26.DKLEMME0180.7
Double clamp for grating height 40–50 mm, MW 30/30 mm, made of St37 steel, hot-dip galvanised
Double grating clamp (complete set) | for grating height: 40–50 mm | MW 30/30 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised; for grating height: 40–50 mm; for mesh size: 30/30 mm [ Specific details ] comprising: 2 upper brackets (swallow-tail brackets), lower clamp section (160/140 mm) with 2 slotted holes (45 mm), 2 M8 x 80 mm hexagon head bolts and 2 M8 square nuts

Available, : 1-3 days

£1.95*
Schwalbenlasche MW 30-30 mm Stahl- feuerverzinkt-26-SCHWALBEN.7 Schwalbenlasche MW 30-30 mm Stahl- feuerverzinkt-26-SCHWALBEN.7
Stk
26.SCHWALBEN.7
Swallow-tail bracket, 30/30 mm, steel, hot-dip galvanised
Swallow-tail bracket | loose | for MW 30/30 mm | made from S235JR / ST37 – hot-dip galvanised [ Technical details ] made from S235JR / ST37 - hot-dip galvanised [ Specific details ] Standard top section for 33/34 mm spacing; minimum web width 27 mm; use of M8 hexagon head bolts – DIN 933 for assembly [ further specific details ] web thickness for web spacing 33.33 mm: 2 to 4 mm; web thickness for web spacing 34.33 mm: 2 to 5 mm

Available, : 1-3 days

£0.31*
Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7 Sicherheitsketten fuer Gitterroste fuer MW 30-30 30-10 34-38 mm aus Stahl- feuerverzinkt- 1 Paar-26-S-KETTE-M.7
Stk
26.S-KETTE-M.7
Safety chains for grating, suitable for MW 30/30, 30/10 and 34/38 mm, made of steel, hot-dip galvanised, 1 pair
Safety chains | 1 pair | for grating with 30/30 mm mesh, and more | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 800 mm long, with mounting brackets, screws and wall plugs [ Further specific details ] for mesh sizes: 30/30 mm | 34/38 mm | 30/10 mm

Available, : 1-3 days

£13.35*
1 Paar Sicherheitsketten fuer Gitterroste MW 30-30 mm aus St37 feuerverzinkt-26-S-KETTE.7 1 Paar Sicherheitsketten fuer Gitterroste MW 30-30 mm aus St37 feuerverzinkt-26-S-KETTE.7
Paar
26.S-KETTE.7
1 pair of safety chains for MW 30/30 mm grating made from St37 hot-dip galvanised steel
Safety chains | 1 pair | for grating with 30/30 mm mesh, and more | made from St37, hot-dip galvanised [ Technical details ] made from St37, hot-dip galvanised [ Specific details ] consisting of two chains, each 700 mm long, with mounting brackets, mounting brackets, split pins, screws and dowels [ Further specific details ] for mesh sizes: 20/20 – 20/50 mm | 30/20 – 30/60 mm | 40/30 – 40/60 mm

Available, : 1-3 days

£10.94*
