Glass sliding door system with top-mounted track and soft-stop mechanism, anodised aluminium, 3000 mm, 8–12 mm glass
Product information "Glass sliding door system with top-mounted track and soft-stop mechanism, anodised aluminium, 3000 mm, 8–12 mm glass"
The FeNau sliding glass door system, featuring an overhead track and soft-stop mechanism, offers an elegant and functional solution for modern interior design. This high-quality system is specifically designed for glass doors and enables smooth, controlled movement of the door leaf, significantly enhancing ease of use and ensuring the door is treated with care. Ideal for metalworkers, locksmiths and construction companies that value quality and aesthetics.
Technical details and materials
The sliding door system is made of robust, anodised aluminium, which not only offers an attractive appearance but also guarantees high corrosion resistance and durability. The running rail is 3000 mm long and is designed for wall mounting. It is compatible with glass doors with a thickness of 8 to 12 mm. The recommended maximum leaf weight is 80 kg, whilst the system’s maximum load capacity is 90 kg.
Function and application
The integrated soft-stop mechanism ensures that the glass door is gently slowed down when opening and closing and held in the end position. This prevents the door from slamming shut and enhances safety and comfort in daily use. The system is versatile and suitable for use in offices, medical practices, living areas or other premises where a space-saving and aesthetically pleasing door solution is required. No glass drilling is required for glass doors up to 60 kg; for door leaf weights over 60 kg, glass drilling is necessary.

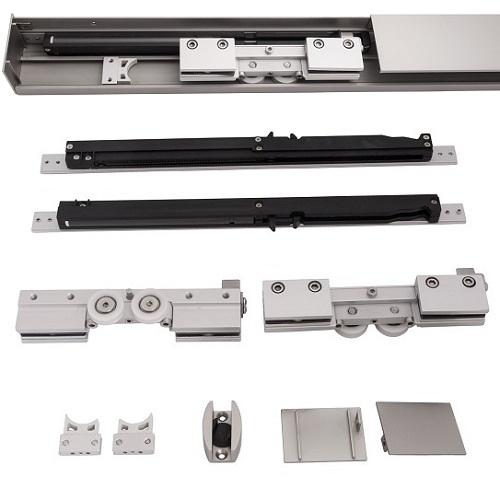

Scope of delivery
- 1x aluminium top rail, length 3000 mm
- 2x roller carriages for the door guide
- 2x end caps for the profile
- 2x stoppers for the soft-stop mechanism
Please note that the glass is not included in the scope of delivery.
| Länge: | 3000 mm |
|---|---|
| Oberfläche: | eloxiert |
| Werkstoff: | Aluminium |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
