Glass support bracket, Ø 30 mm, V2A, connection: pipe Ø 48.3 mm

£4.30*

Prices include VAT, plus delivery charges

Available: 1-3 days

Stk

Stock: 167

Product number: 88.1160191.240.48

EAN: 4067014007599

Weight: 0.08 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

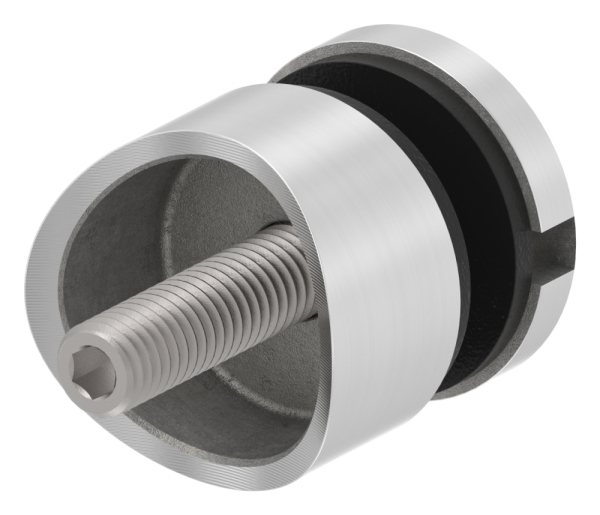

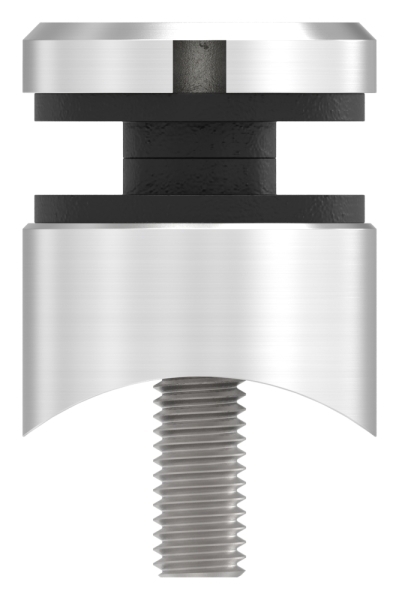

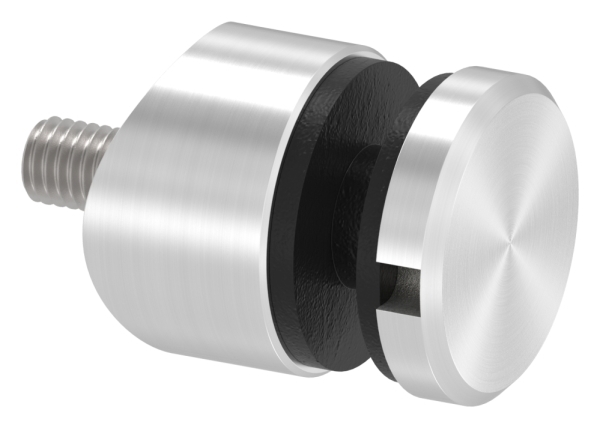

Product information "Glass support bracket, Ø 30 mm, V2A, connection: pipe Ø 48.3 mm"

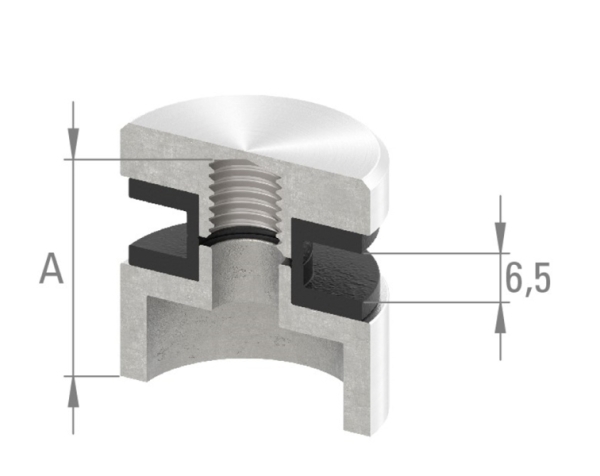

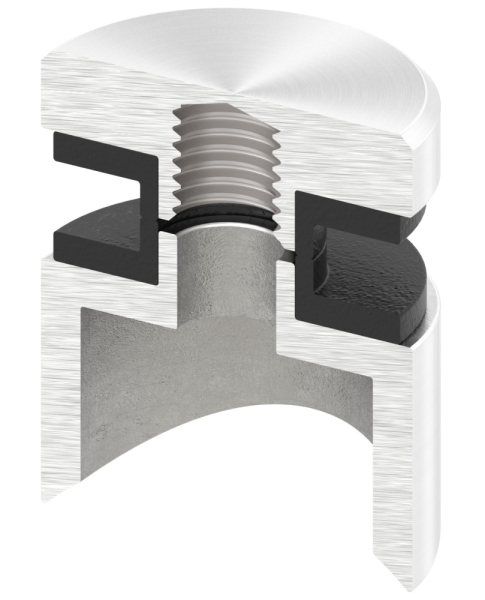

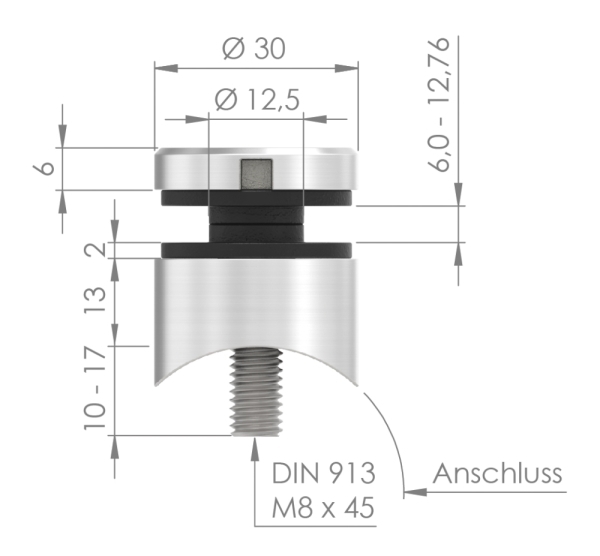

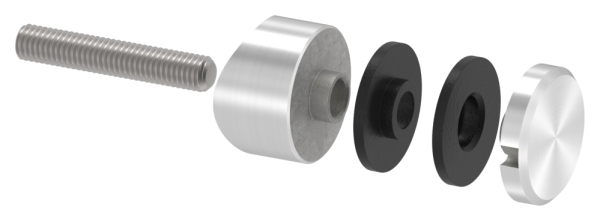

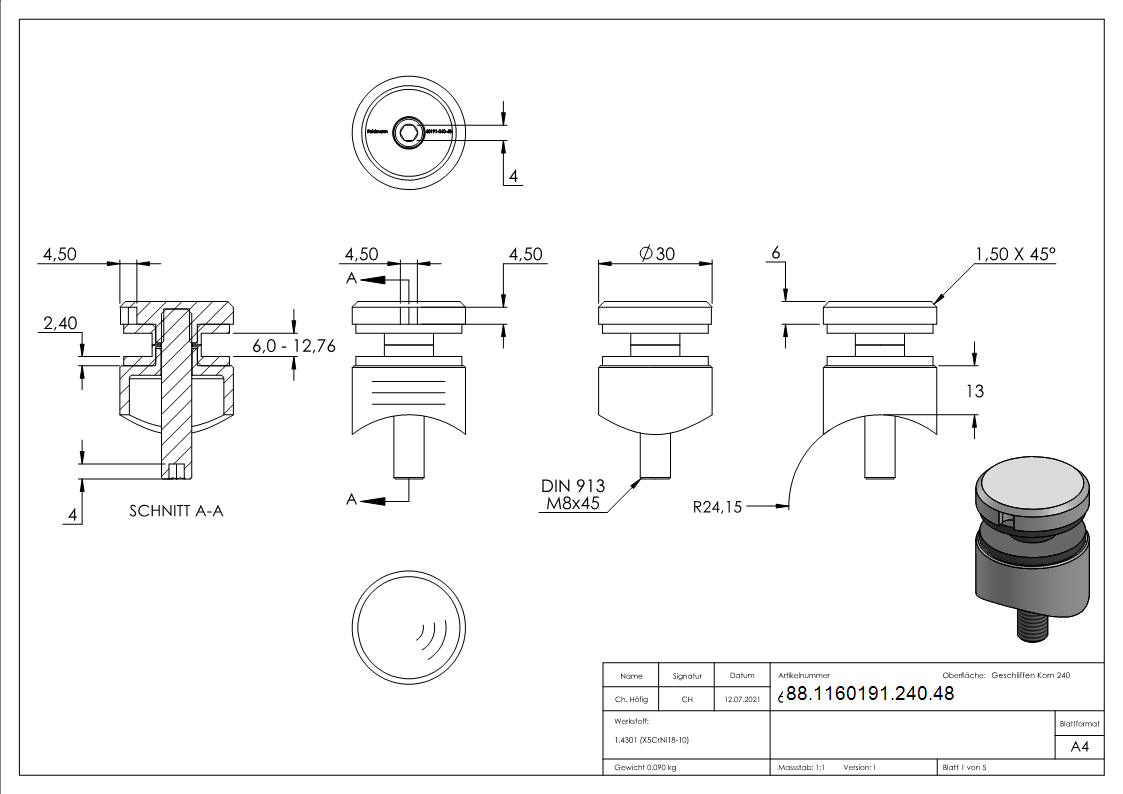

Glass mounting bracket, Ø 30 mm, connection: 42.4 mm, M8 thread, V2A, glass bore: min. 15 mm, clamping range: 6.0–12.76 mm

Durchmesser:	30mm
Werkstoff:	V2A (AISI304) 1.4301
Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	Ø 48.3mm (11⁄2″)

Accessories

1 Paar Ersatzgummis fuer Glaspunkthalter Ø 30 mm – Gummieinlage - Dichtung-10-5000.0

Stk

10.5000.0

1 pair of replacement rubber inserts for glass holders (Ø 30 mm) – rubber insert & seal

1 pair of rubber pads (Ø 30 mm) for 30 mm glass point fixings

£0.67*

Hakenschluessel fuer Glaspunkthalter Ø 30 mm-10-5001.4

Stk

10.5001.4

Hook wrench for glass point holders, Ø 30 mm

Available, : 1-3 days

£5.19*

10.50M830.4

Tapped pin Thread: M8 with hexagon socket Length: 30–100 mm V2A

Tapped stud | Thread: M8 | with hex socket | Length: 30–100 mm | V2A [ Technical details ] made of stainless steel 1.4301/V2A/AISI 304

Variants from £0.71*

Available, : 1-3 days

£0.76*

10.50M835.4

Tapped pin Thread: M8 with hexagon socket Length: 30–100 mm V2A

Tapped stud | Thread: M8 | with hex socket | Length: 30–100 mm | V2A [ Technical details ] made of stainless steel 1.4301/V2A/AISI 304

Available, : 1-3 days

£0.71*

10.50M840.4

Tapped pin Thread: M8 with hexagon socket Length: 30–100 mm V2A

Tapped stud | Thread: M8 | with hex socket | Length: 30–100 mm | V2A [ Technical details ] made of stainless steel 1.4301/V2A/AISI 304

Variants from £0.71*

Available, : 1-3 days

£0.78*

10.50M850.4

Tapped pin Thread: M8 with hexagon socket Length: 30–100 mm V2A

Tapped stud | Thread: M8 | with hex socket | Length: 30–100 mm | V2A [ Technical details ] made of stainless steel 1.4301/V2A/AISI 304

Variants from £0.71*

Available, : 1-3 days

£0.90*

10.50M860.4

Tapped pin Thread: M8 with hexagon socket Length: 30–100 mm V2A

Tapped stud | Thread: M8 | with hex socket | Length: 30–100 mm | V2A [ Technical details ] made of stainless steel 1.4301/V2A/AISI 304

Variants from £0.71*

Available, : 1-3 days

£1.02*

10.50M870.4

Tapped pin Thread: M8 with hexagon socket Length: 30–100 mm V2A

Tapped stud | Thread: M8 | with hex socket | Length: 30–100 mm | V2A [ Technical details ] made of stainless steel 1.4301/V2A/AISI 304

Variants from £0.71*

Available, : 1-3 days

£1.41*

10.50M880.4

Tapped pin Thread: M8 with hexagon socket Length: 30–100 mm V2A

Tapped stud | Thread: M8 | with hex socket | Length: 30–100 mm | V2A [ Technical details ] made of stainless steel 1.4301/V2A/AISI 304

Variants from £0.71*

Available, : 1-3 days

£1.52*

10.50M8100.4

Tapped pin Thread: M8 with hexagon socket Length: 30–100 mm V2A

Tapped stud | Thread: M8 | with hex socket | Length: 30–100 mm | V2A [ Technical details ] made of stainless steel 1.4301/V2A/AISI 304

Variants from £0.71*

Available, : 1-3 days

£2.34*
