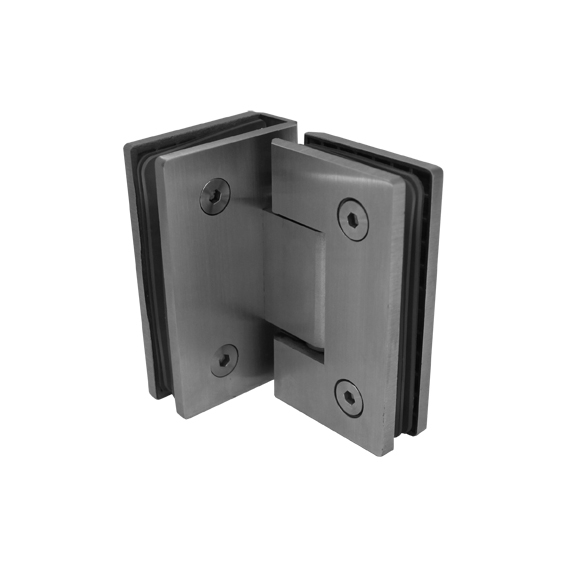

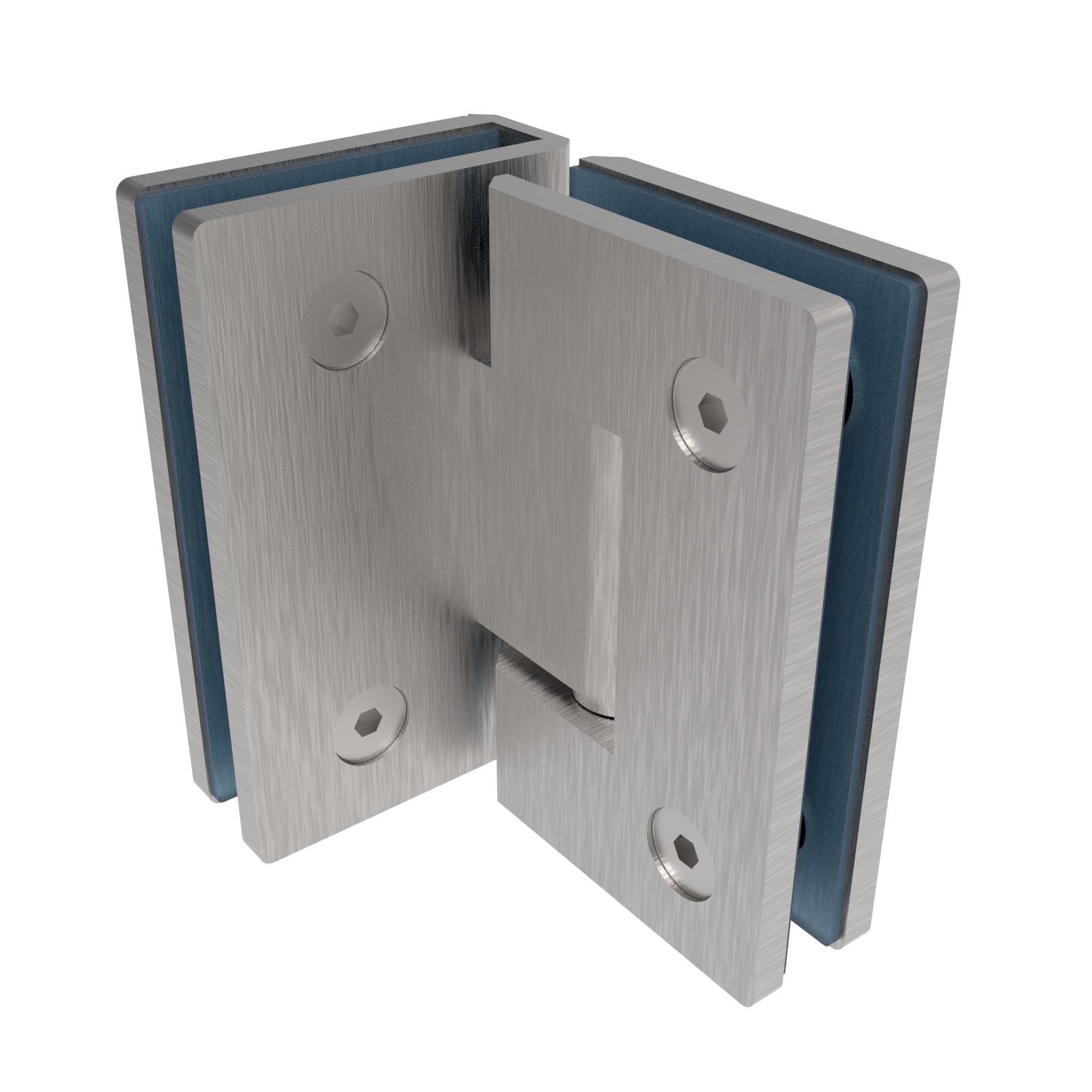

Glastürscharnier Edelstahl V2A Glas-Glas 8-10mm selbstschließend

20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Glastürscharnier Edelstahl V2A Glas-Glas 8-10mm selbstschließend"

Das hochwertige Glastürscharnier aus Edelstahl V2A ist die ideale Lösung für die elegante und funktionale Montage von Glastüren an feststehenden Glaspaneelen. Speziell für den Einsatz in modernen Innenräumen konzipiert, bietet dieses Scharnier eine zuverlässige Performance und eine ansprechende Optik.

Robuste Konstruktion und präzise Funktion

Gefertigt aus massivem Edelstahl AISI 304 (V2A) mit einer edlen geschliffenen Oberfläche, überzeugt dieses Glastürscharnier durch seine Langlebigkeit und hohe Korrosionsbeständigkeit. Es ist speziell für Glasstärken von 8 bis 10 mm ausgelegt und trägt Glastüren bis zu einem Gewicht von 45 kg pro Scharnierpaar.

Ein integrierter Selbstschließmechanismus sorgt dafür, dass die Tür ab einem Öffnungswinkel von +/- 15° sanft und kontrolliert schließt. Die präzise Stopp-Funktion bei 0° und +/- 90° gewährleistet eine exakte Positionierung der Tür und verhindert ein ungewolltes Weiterdrehen.

Einfache Montage und vielseitige Anwendung

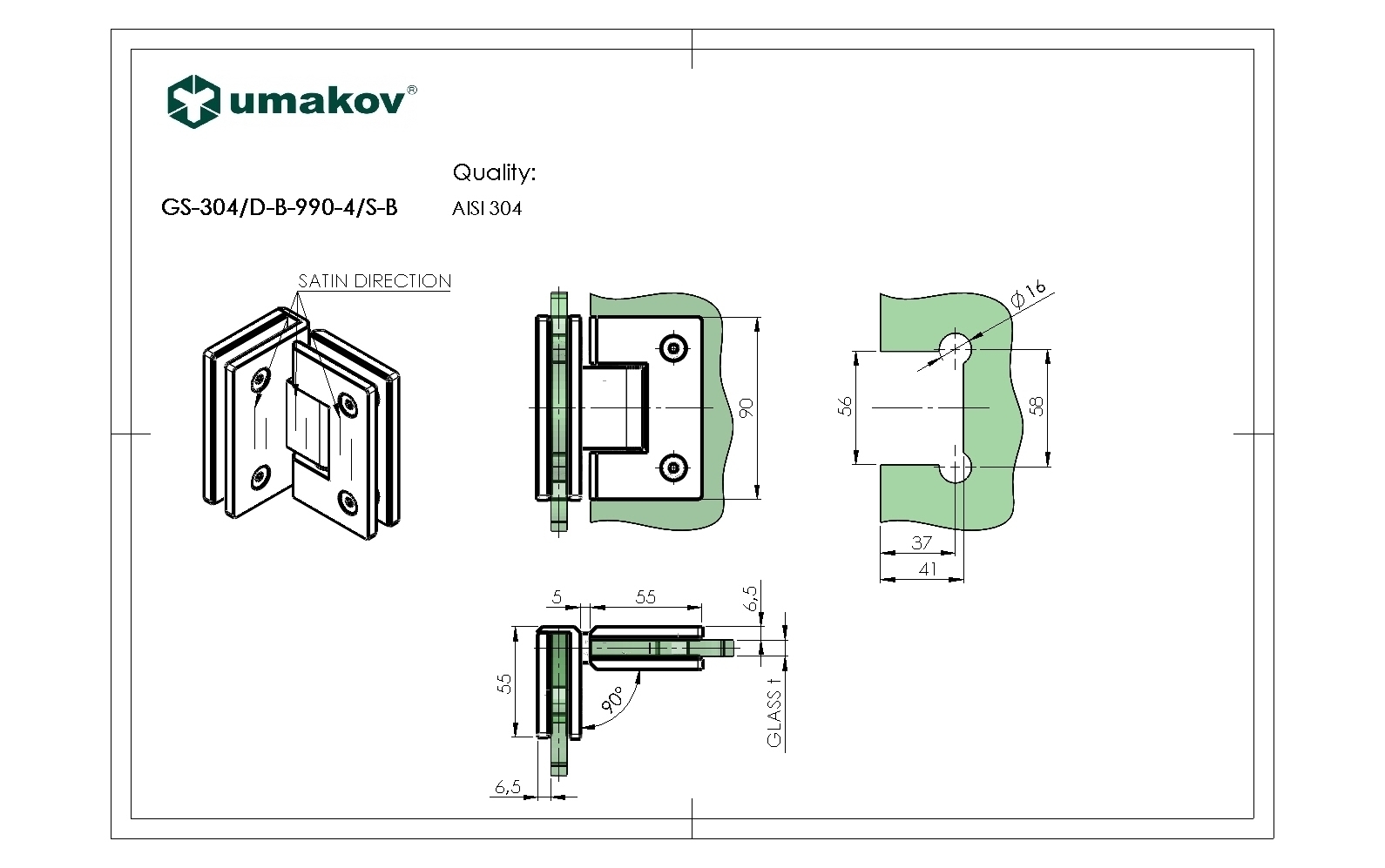

Die Montage erfolgt als Glas-zu-Glas-Verbindung, wobei eine entsprechende Bohrung im Glas für die Befestigung erforderlich ist. Mit seinen kompakten Abmessungen von 90 mm Höhe und 55 mm Breite fügt sich das Scharnier dezent in jede Glasarchitektur ein.

Dieses Scharnier ist perfekt geeignet für den Einsatz in:

  • Badezimmern und Duschkabinen
  • Bürogebäuden und Konferenzräumen
  • Wohnbereichen und Trennwänden
  • Geschäftsräumen und Ausstellungsbereichen

Vertrauen Sie auf die Qualität und Funktionalität dieses Glastürscharniers von FeNau, um Ihre Glasprojekte professionell und sicher umzusetzen.

Properties
Oberfläche: Geschliffen
Werkstoff: Edelstahl V2A (AISI 304)
