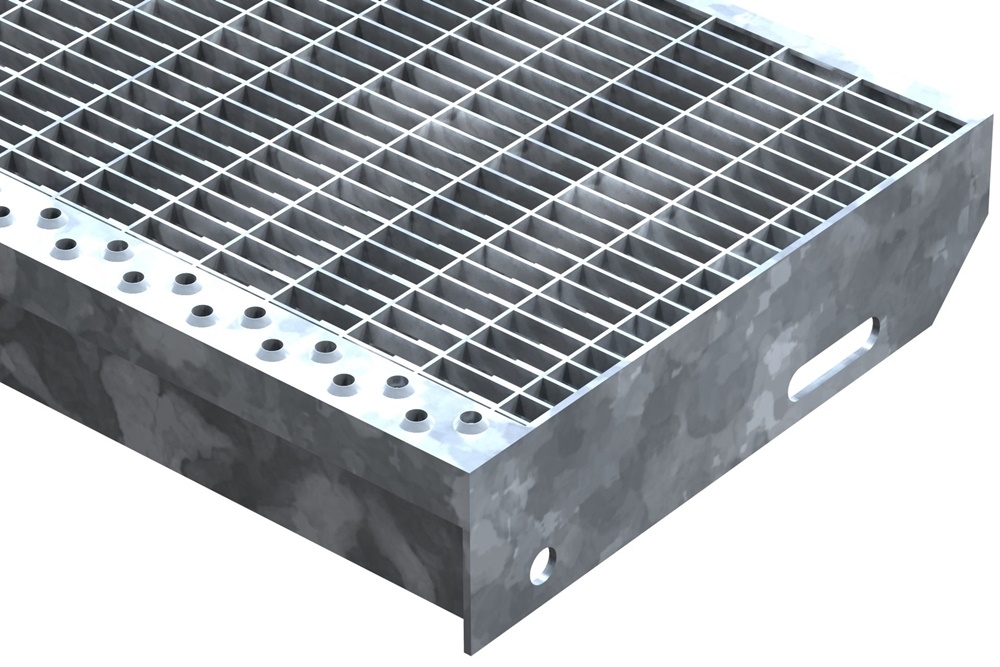

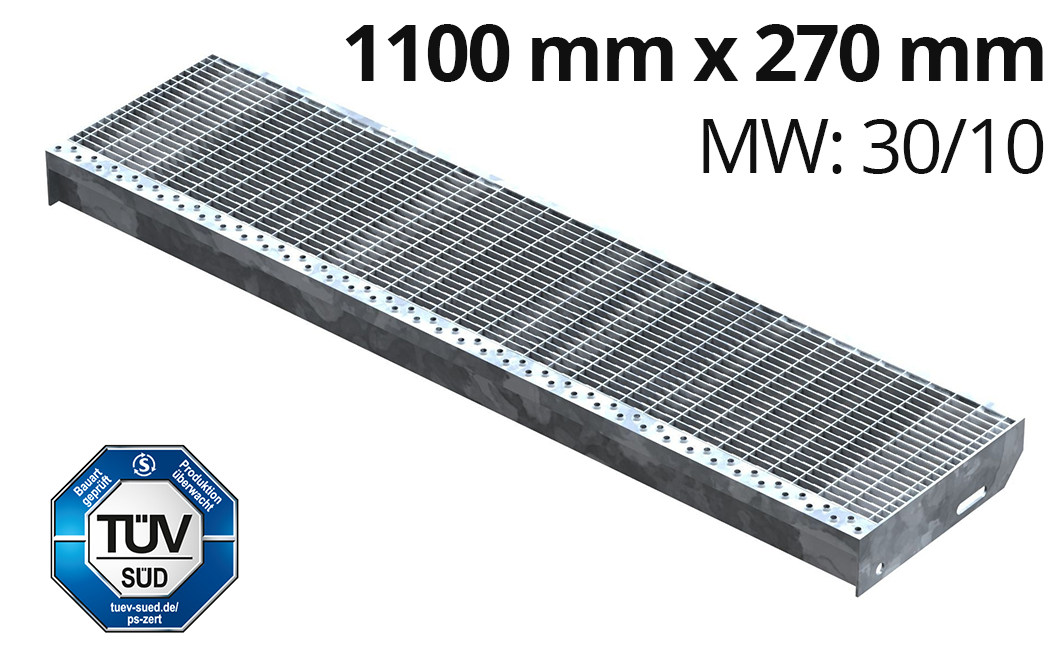

Grating stair tread, dimensions: 1100 x 270 mm, 30/10 mm S235JR (St37-2), hot-dip galvanised
Product information "Grating stair tread, dimensions: 1100 x 270 mm, 30/10 mm S235JR (St37-2), hot-dip galvanised"
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised in accordance with DIN EN ISO 1461
[ Specific details ] Depth (bearing bar direction): 270 mm; Width (filler bar direction): 1100 mm; Mesh size: 30/10 mm; Support bar: 20/1.5 mm

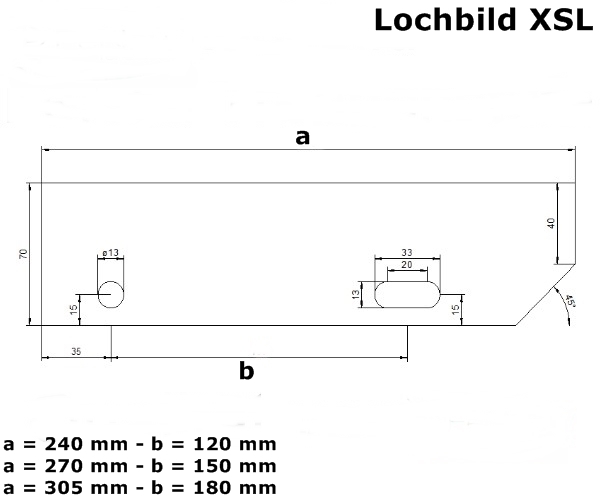

[ Further specific details ] Slip resistance class: R11; with flanges and nosing; drilling in accordance with DIN 24531
[ Certificate ] Load capacity in accordance with DIN 1055-3: 2.0 kN on a 50x50 mm² load cube or 5.00 kN/m²; Suitable for escape staircases in accordance with DIN 1055-3 (categories T1 and T2)
[ Application note ] Note: Due to hot-dip galvanising, galvanising residues may remain in the mesh!; Suitable for access to industrial and machinery facilities in accordance with DIN 24531-1 or DIN EN ISO 14122-31
| Breite: | 1100mm |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 30/10mm |
| Rutschhemmung | Steps: | R11 |
| Stufenbreite | Steps | Stufenlänge: | 1100mm |
| Stufentiefe | Steps | Auftritt : | 270mm |
