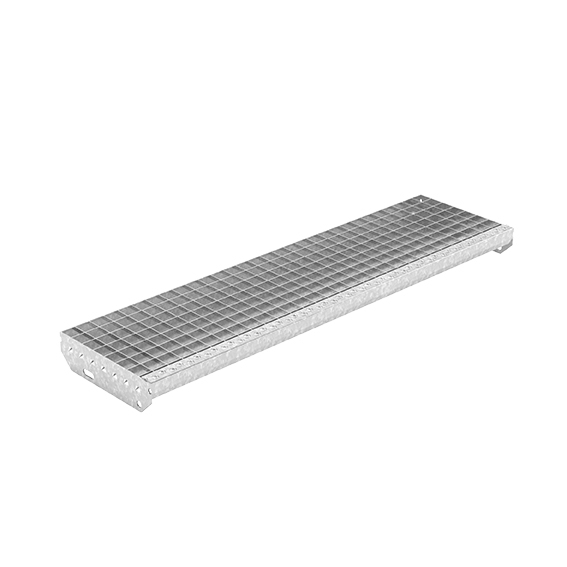

Grating step 700 x 240 mm, mesh size 30/30, thickness 30 mm, slip resistance class R10
FeNau GmbH
Stock:
106
Product number:
24.702430302.7
EAN:
4001990114599
Weight:
4.485 kg
Description
Product information "Grating step 700 x 240 mm, mesh size 30/30, thickness 30 mm, slip resistance class R10"
Grating step, stair tread, expanded metal step | Dimensions: 700 x 240 mm, 30/30 mm | S235JR (St37-2)
[ Technical details ] Made from S235JR (St37-2), hot-dip galvanised
[ Specific details ] Length (support bar direction): 700 mm; Width (filler bar direction): 240 mm; Mesh size: 30/30 mm; Support bar: 30/2 mm
[ Certificate ] Slip resistance class: R10; with flanges and toe-up edge; drilling in accordance with DIN 24531; permissible single force 1.5 kN on a 100 x 100 mm load cube with a maximum deflection of 1/300 mm or 6 mm in accordance with DIN EN ISO 14122-3.
[ Application note ] Due to hot-dip galvanising, zinc residues may remain in the mesh!
[ Manufacturer ] MEA Group GmbH, product MEASTEP standard step
Properties
| Maschenweite | Steps | Drahtgewebe: | 30/30mm |
|---|---|
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 700mm |
| Stufentiefe | Steps | Auftritt : | 240mm |
