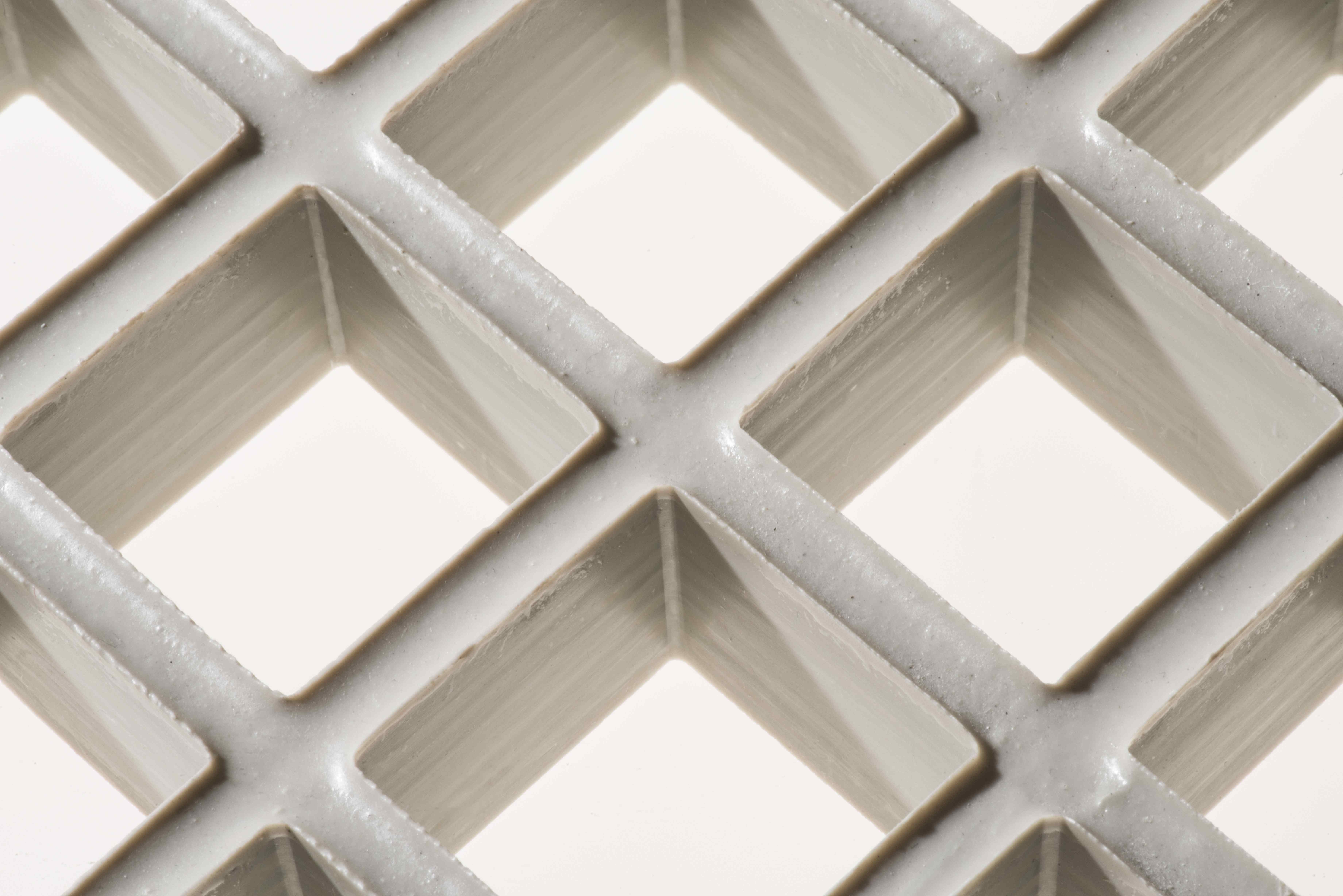

GRP grating 1987 x 997 mm | MT 38 x 38 mm | Height 38 mm | concave | R13
FeNau GmbH
Stock:
34
Product number:
GFK-R3838KN-01
EAN:
4060272634019
Weight:
37.6 kg
Description
Product information "GRP grating 1987 x 997 mm | MT 38 x 38 mm | Height 38 mm | concave | R13"
The cast GRP grating, with a 38 x 38 mm mesh size and a height of 38 mm, replaces steel grating wherever moisture, chemicals or salty air are a factor. The support bars run in both directions over the full height – the grating provides equal load-bearing capacity in every direction. Concave (K) surface with R13 slip resistance.
Technical data
| Design | cast, support bars in both directions |
|---|---|
| Grating size | 1987 x 997 mm |
| Overall height | 38 mm |
| Mesh size | 38 x 38 mm |
| Clear mesh size | ~31 x 31 mm |
| Surface | concave (K) |
| Slip resistance | R13 in accordance with DIN 51130 |
| Resin matrix | OPR NFH (orthophthalic acid polyester resin, non-fire-retardant) |
| Reinforcement | E-glass |
| Colour | grey, similar to RAL 7043 |
| Weight | 37.60 kg |
Your benefits
- Corrosion-resistant – no rust, no re-galvanising, no maintenance
- Resistant to numerous acids and alkalis
- Around 75 per cent lighter than a comparable steel grating – can be installed without lifting equipment
- Non-conductive and non-magnetic
- Slip resistance class R13 in accordance with DIN 51130
- Can be cut to customer specifications at short notice from stock
Typical applications
- Sewage treatment works and water management
- Electroplating and surface treatment
- Chemical, pharmaceutical and process plants
- Walkways, platforms and stages
- Offshore, port and swimming pool technology
Installation and notes
- Please note: This version is not fire-retardant. If fire safety requirements apply, please select the IPR version.
- In accordance with BGI/GUV 588/1 and DIN 24537-3, every grating must be secured by positive locking at at least four corner points; where there is a risk of falling, it must also be secured against lifting.
- Seal any cut edges on site with MEISER TopSeal.
Properties
| Form: | rechteckig |
|---|---|
| Höhe: | 38 |
| Länge: | 1987 |
| Maschenweite | Steps | Drahtgewebe: | 38 x 38 mm |
| Oberfläche: | konkav (K) |
| Rutschhemmung | Steps: | R13 |
| Werkstoff: | GFK / OPR NFH (nicht feuerhemm |
| Breite: | 997 |
