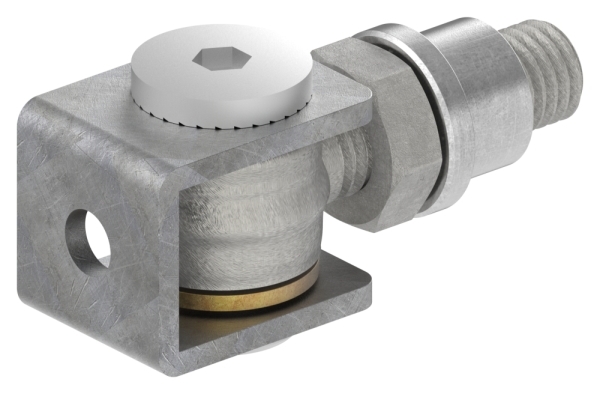

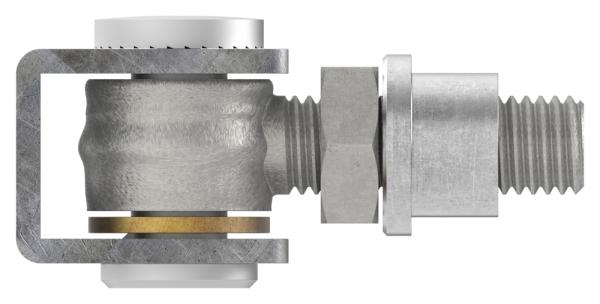

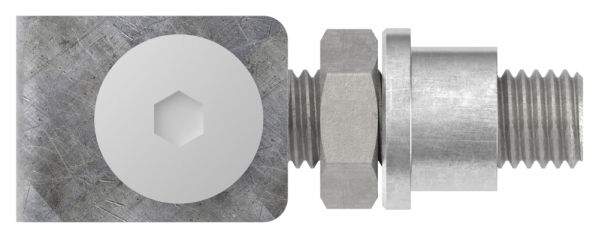

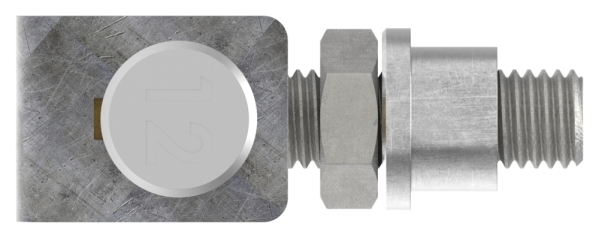

M12 adjustable weldable steel (uncoated) S235JR door hinge
Product information "M12 adjustable weldable steel (uncoated) S235JR door hinge"
[ Technical details ] S235JR steel, raw
[ Specific details ] Dimension A: 25 mm; Dimension B: 33 mm; Dimension C: 25 mm; Dimension E: 15 mm; Dimension F: Ø 18 mm; Dimension G: 20 mm; Dimension H: 22 mm; Dimension L: 65 mm; Dimension M: M12; Dimension R: 38–53 mm; Dimension S: 3 mm; Load capacity per pair: 50 kg

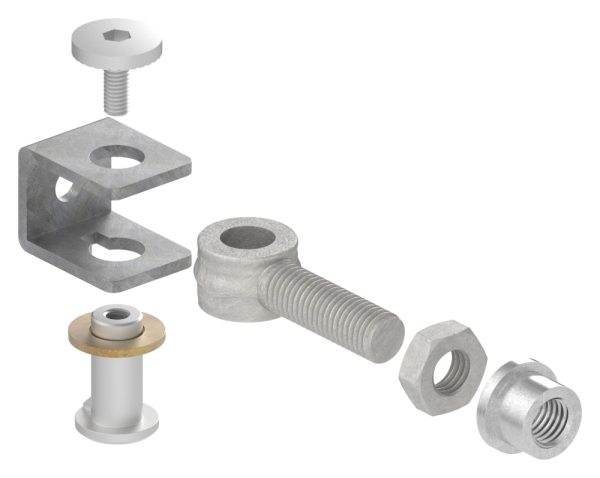

[ Further Specific Details ] Adjustable gate hinge with U-bracket / hot-dip galvanised eye bolts and pins / with a brass washer / pin rotation stop and locking screw
[ Application ] Position the gate hinge where required and adjust using the U-bracket
| Gewinde : | M12 |
|---|---|
| Werkstoff: | Stahl roh |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
