M22 adjustable door hinge, steel (unfinished) S235JR
Product information "M22 adjustable door hinge, steel (unfinished) S235JR"
[ Technical details ] S235JR steel, raw
[ Specific details ] Eye bolt and pins hot-dip galvanised; Dimension A: 40 mm; Dimension B: 47 mm; Dimension C: 53 mm; Dimension E: 10 mm; Dimension G: 27 mm; Dimension H: 64 mm; Dimension L: 187 mm; Dimension M: M22; Dimension S: 8 mm; Load capacity per pair: 220 kg

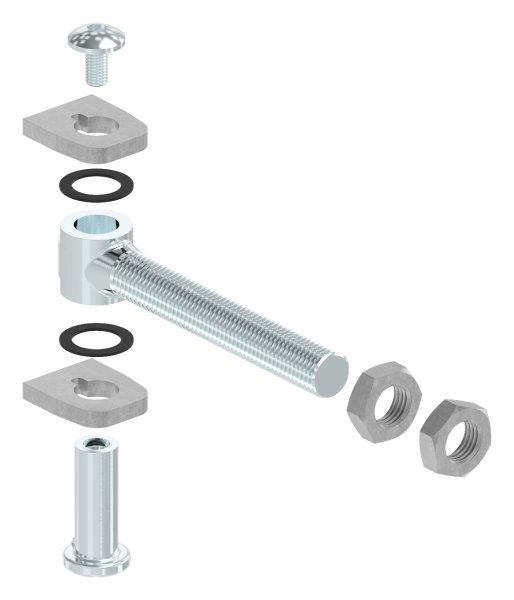

[ Further Specific Details ] Gate hinge with long thread, adjustable / hot-dip galvanised eye bolts and pins / with 2x flat hex nuts and 2x washers / pin rotation stop and locking screw
[ Application ] Position the gate hinge where required, adjust at the lower end of the eye bolt
| Gewinde : | M22 |
|---|---|
| Werkstoff: | Stahl roh |
