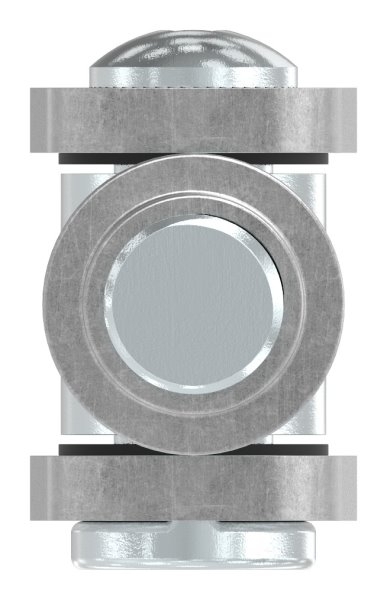

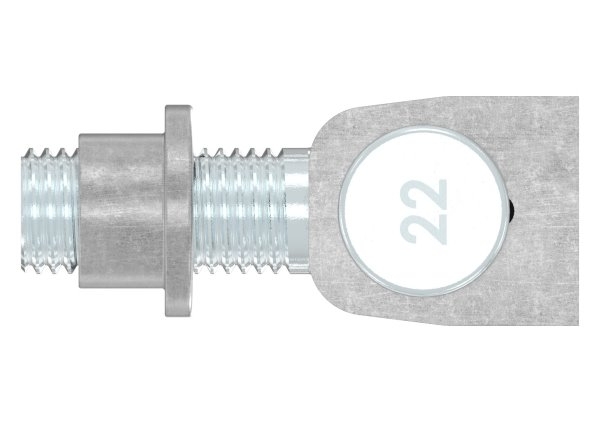

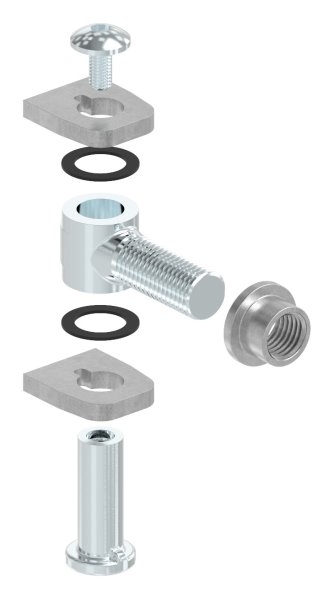

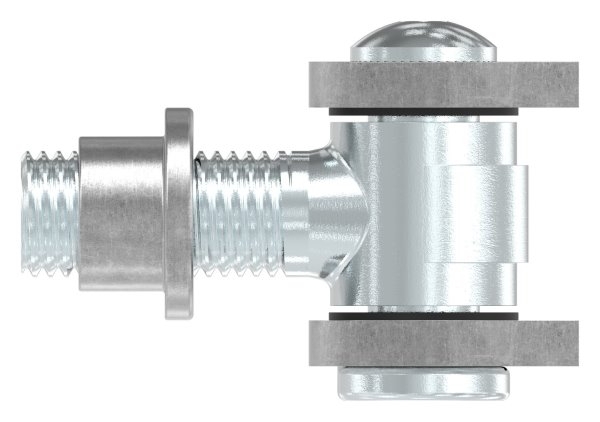

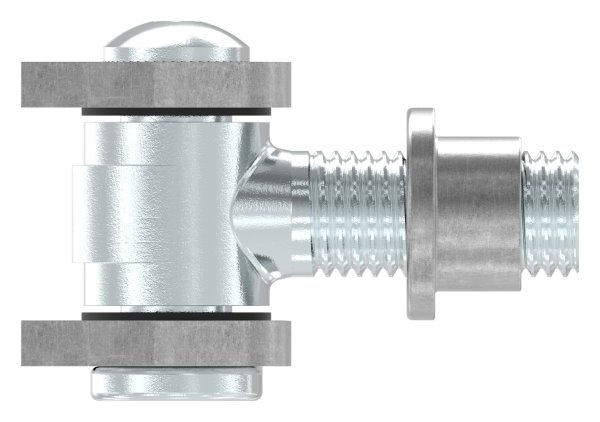

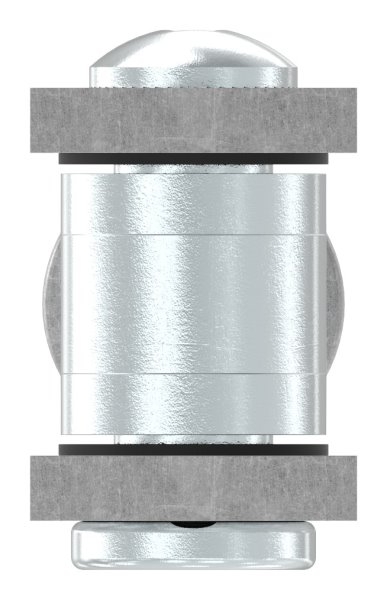

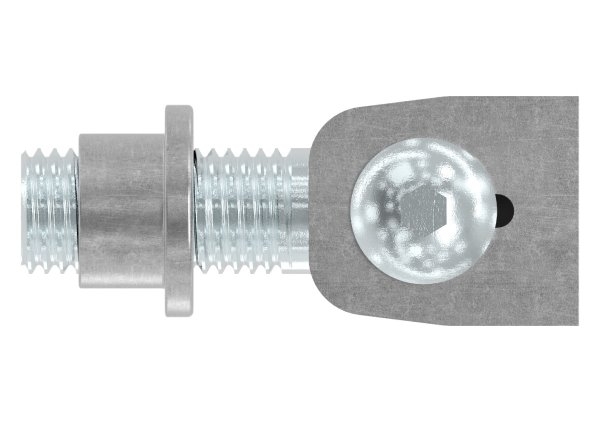

M22 adjustable weldable steel (uncoated) S235JR door hinge
Product information "M22 adjustable weldable steel (uncoated) S235JR door hinge"
[ Technical details ] Steel S235JR, raw
[ Specific details ] Dimension A: 40 mm; Dimension B: 47 mm; Dimension C: 53 mm; Dimension E: 20 mm; Dimension F: Ø27 mm; Dimension G: 27 mm; Dimension H: 64 mm; Dimension L: 95 mm; Dimension M: M22; Dimension R: 55–80 mm; Dimension S: 8 mm; Load capacity per pair: 220 kg
[ Further Specific Details ] Weld-on gate hinge, adjustable, galvanised
[ Application ] Position the gate hinge where required and proceed with further processing at the appropriate point
| Gewinde : | M22 |
|---|---|
| Werkstoff: | Stahl roh |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
All product safety information → · Your legal guarantee rights →
