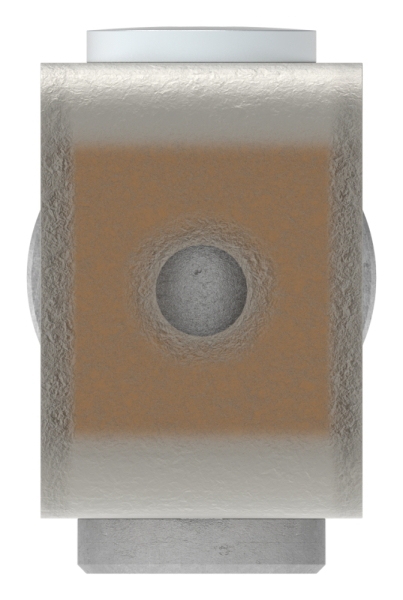

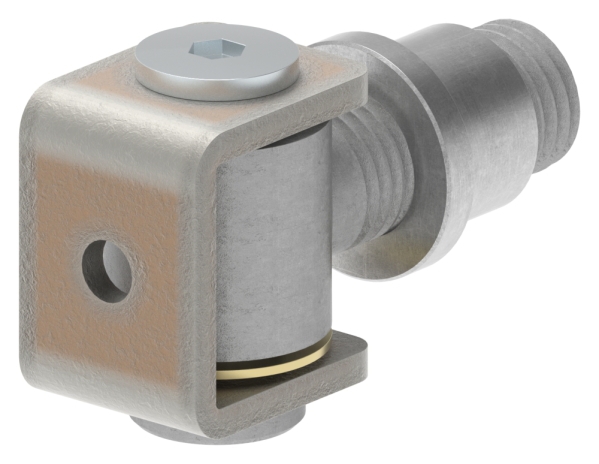

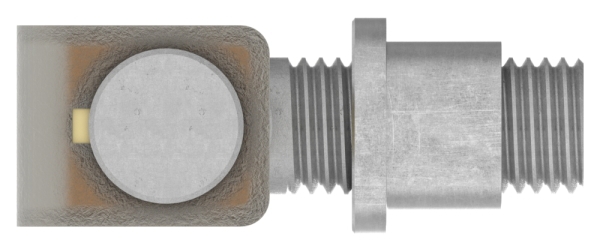

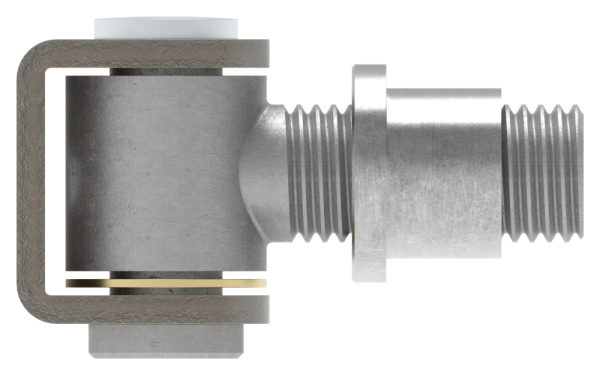

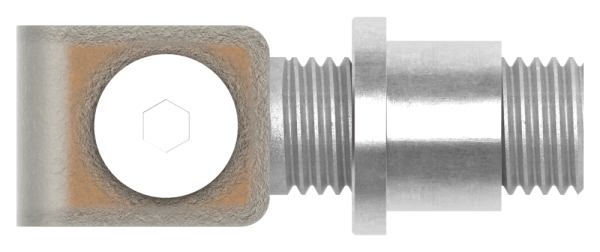

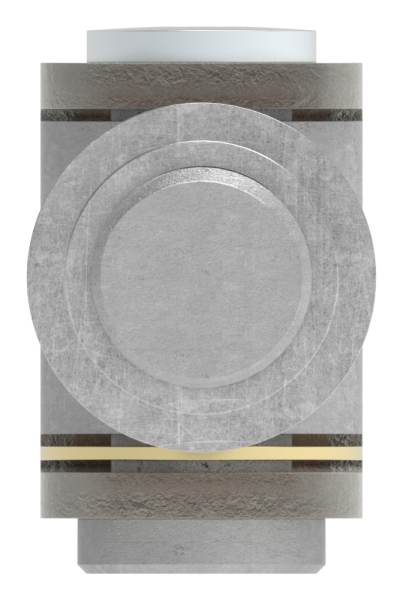

M24 adjustable weldable steel door hinge (unfinished) S235JR
Product information "M24 adjustable weldable steel door hinge (unfinished) S235JR"
[ Technical details ] Steel S235JR, raw
[ Specific details ] Dimension A: 35.5 mm; Dimension B: 43.5 mm; Dimension C: 50 mm; Dimension E: 26 mm; Dimension F: Ø 30 mm; Dimension G: 27 mm; Dimension H: 60 mm; Dimension L: 94 mm; Dimension M: M24; Dimension R: 55–75 mm; Dimension S: 6 mm; Load capacity per pair: 225 kg

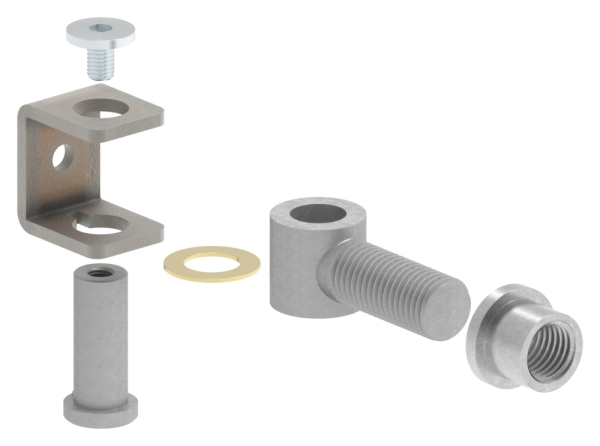

[ Further Specifications ] Adjustable gate hinge with U-bracket / hot-dip galvanised eye bolts and pins / with a brass washer / pin rotation stop and locking screw
[ Application ] Position the gate hinge where required and adjust using the U-bracket
| Gewinde : | M24 |
|---|---|
| Werkstoff: | Stahl roh |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
