Pipe connector | Articulated bracket | 173F | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised
Rohraußendurchmesser:
Ø 26,9 mm
FeNau GmbH
Stock:
311
Product number:
173FA27
EAN:
4251412903854
Weight:
0.22 kg
Description
Product information "Pipe connector | Articulated bracket | 173F | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised"
Pipe connector | Joint bracket | 173F | 26.9 mm – 60.3 mm | 3/4" – 2" | Malleable cast iron and electro-galvanised
[ Technical details ] Material: Malleable cast iron; hot-dip galvanised and electro-galvanised with stainless steel clamping and cutting screws
[ Technical details ] Material: Malleable cast iron; hot-dip galvanised and electro-galvanised with stainless steel clamping and cutting screws

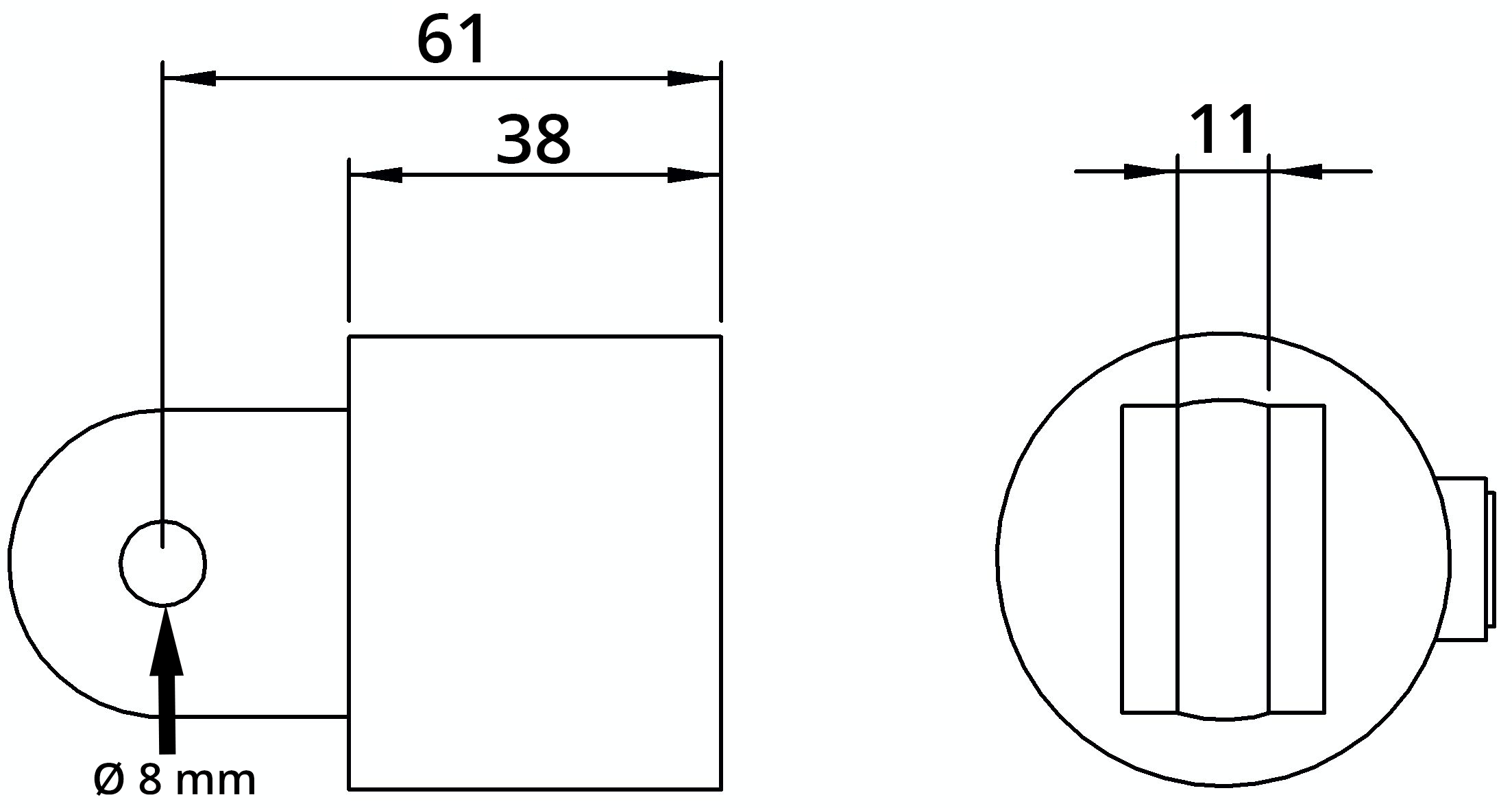

| For pipe | Dimension a | Dimension b | Dimension c | Allen |
|---|---|---|---|---|
| 26.9 mm | 61 mm | 38 mm | 11 mm | 301AB |
| 33.7 mm | 61 mm | 38 mm | 11 mm | 301AB |
| 42.4 mm | 69 mm | 46 mm | 11 mm | 301CDE |
| 48.3 mm | 77 mm | 55 mm | 11 mm | 301CDE |
| 60.3 mm | 91 mm | 63 mm | 11 mm | 301CDE |
Properties
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Ø 26.9mm (3⁄4″) |
|---|
