Pipe connector | T-piece for support pipe | 176 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised
Product information "Pipe connector | T-piece for support pipe | 176 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised"

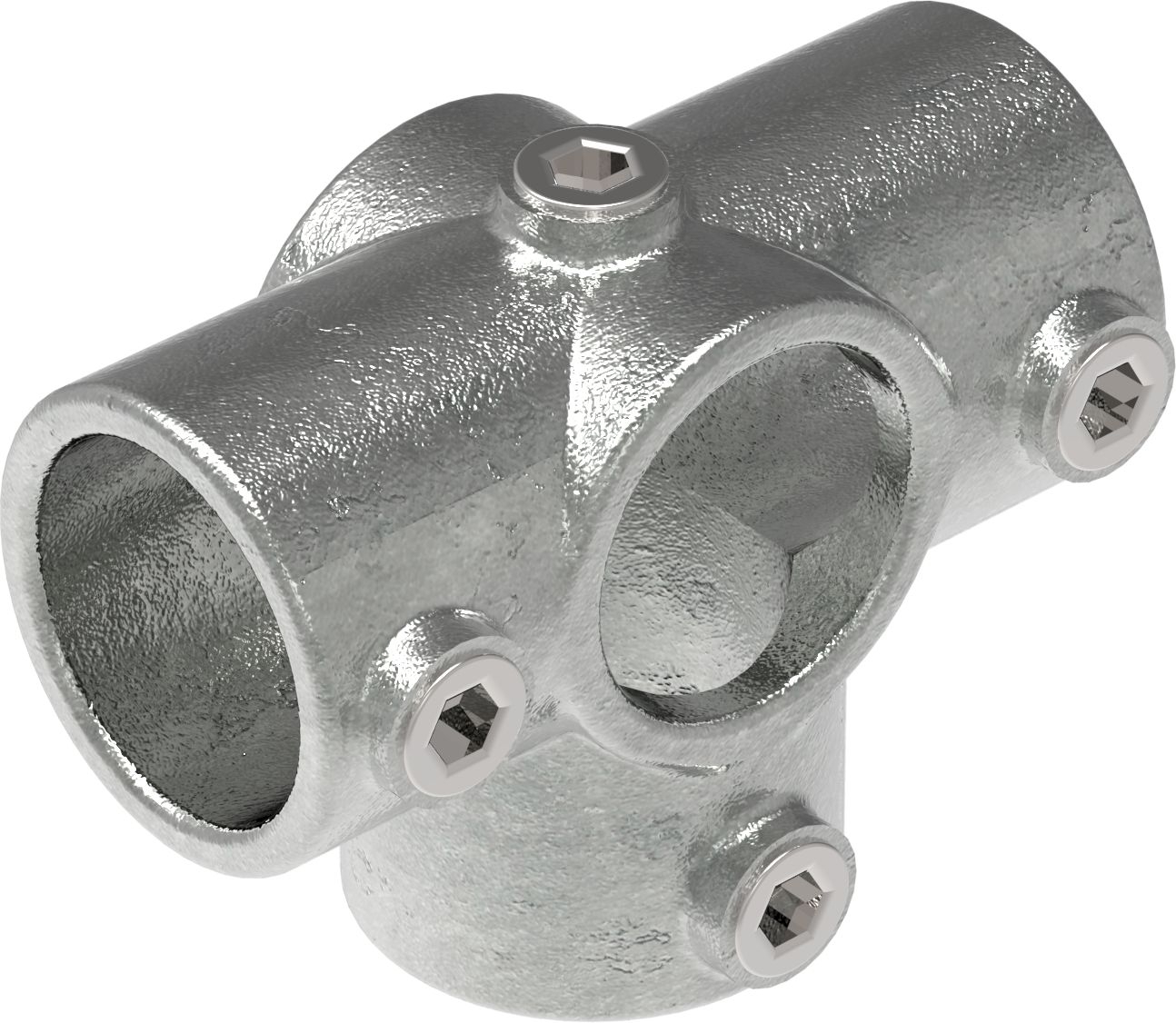

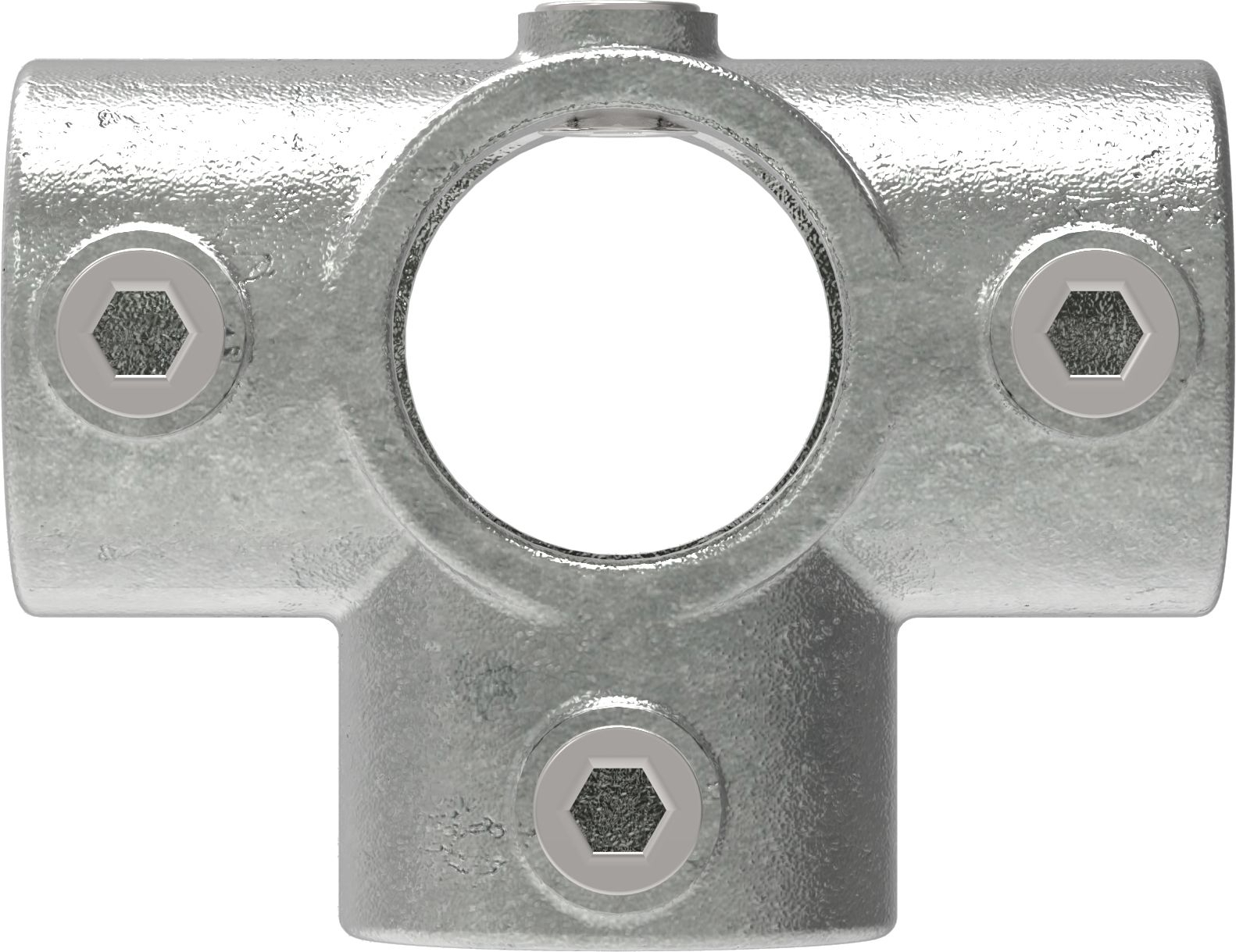

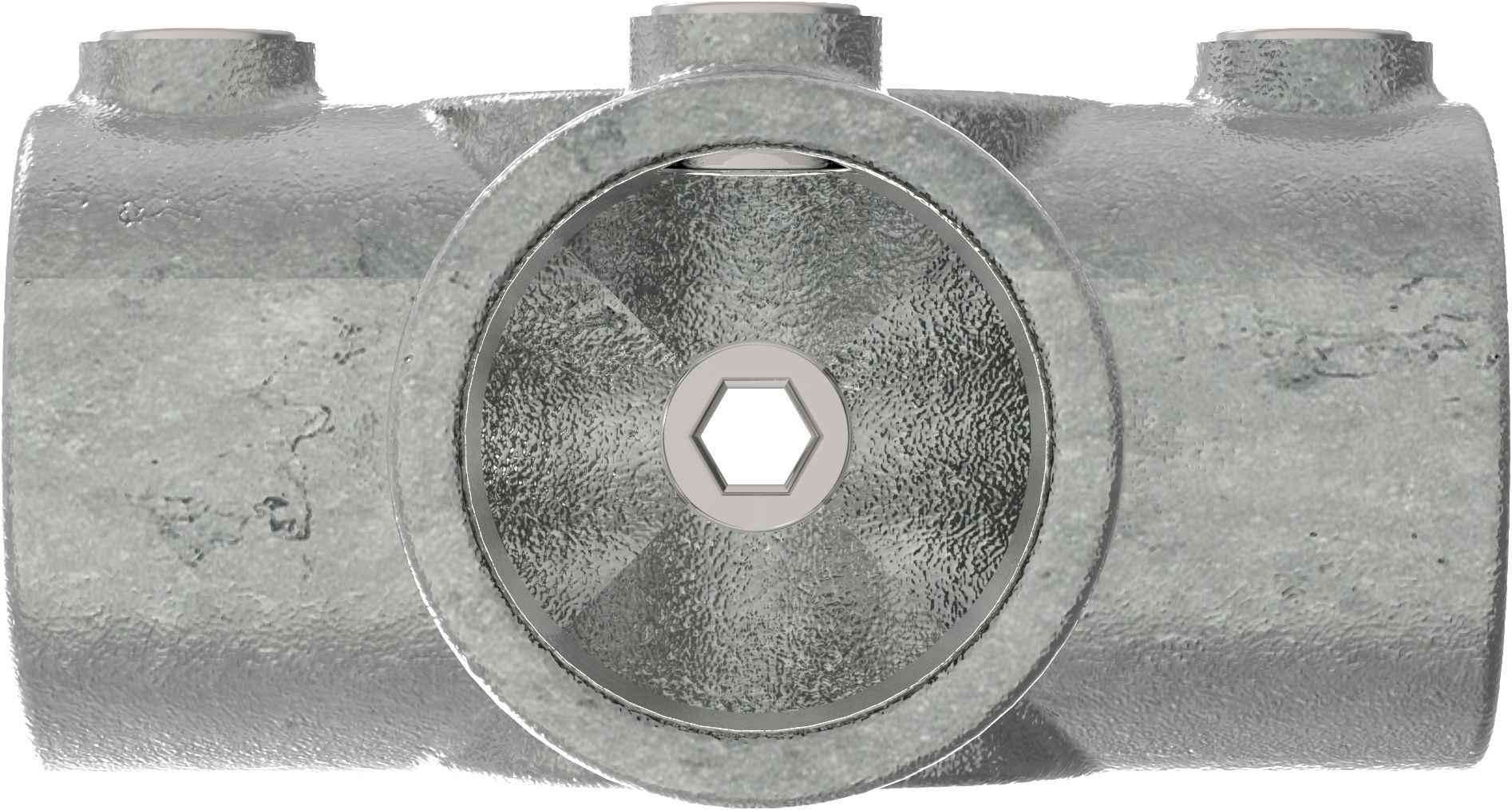

[ Scope of delivery ] 1x three-way cross connector for support pipe (angle: 90 degrees) incl. stainless steel clamping and cutting screws - (Item no.: 176A27) | Optimal corrosion protection against weathering – durable, stable and universally applicable (outer diameter in accordance with DIN EN ISO 6708 and EN 10255)

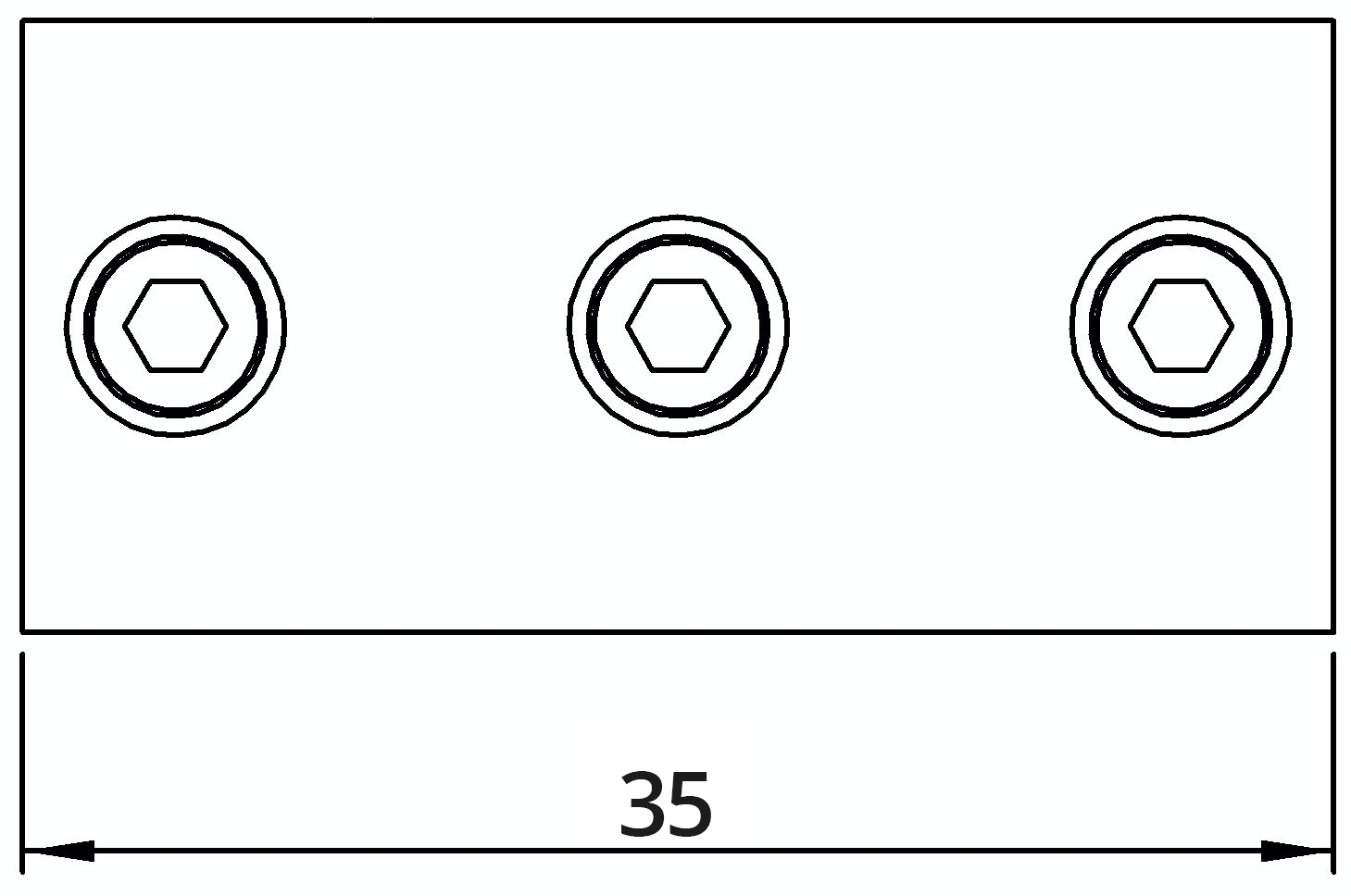

[ Technical details ] Dimensions (see illustration): For Ø 26.9 mm / ¾" Dimension (A): 40 mm / Weight: 0.34 kg | Professional quality thanks to electro-galvanisation and hot-dip galvanisation - Material: malleable cast iron
[ Wrong size? - Matching items ] (Item no.: 176T21) Dimensions: Ø 21.3 mm / ½" | (Item no.: 176A27) Dimensions: Ø 26.9 mm / ¾" | (Item no.: 176B34) Dimensions: Ø 33.7 mm / 1" | (Item no.: 176C42) Dimensions: Ø 42.4 mm / 1 ¼" | (Item No.: 176D48) Dimensions: Ø 48.3 mm / 1 ½" | (Item No.: 176E60) Dimensions: Ø 60.3 mm / 2"

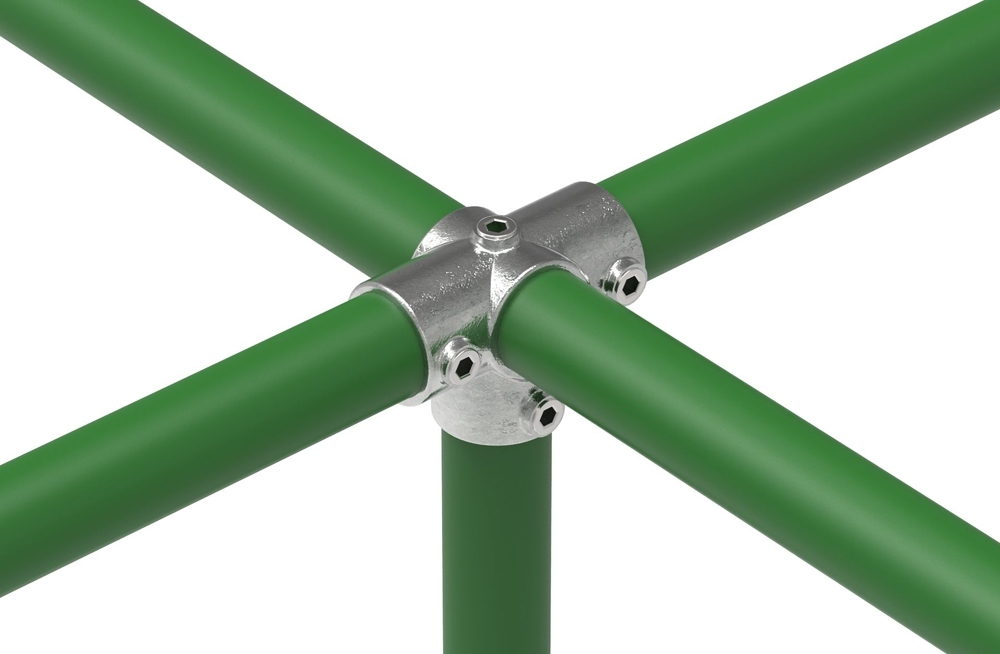

[ Application ] Wide range of applications | Support tube – frequently used for shelving | For steel structures, scaffolding, handrails, balustrades, shelving, etc. | Not the right tube connector? No problem, we stock a wide range of tube connectors in various shapes
For tube Dimension a Insertion depth Allen key 21.3 mm 35 mm 22 mm301T 26.9 mm 40 mm 25 mm301AB 33.7 mm 46 mm 29 mm301AB 42.4 mm 60 mm 38 mm301CDE 48.3 mm 68 mm 43 mm301CDE 60.3 mm 85 mm 55 mm301CDE
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Ø 21.3mm (1⁄2″) |
|---|
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
