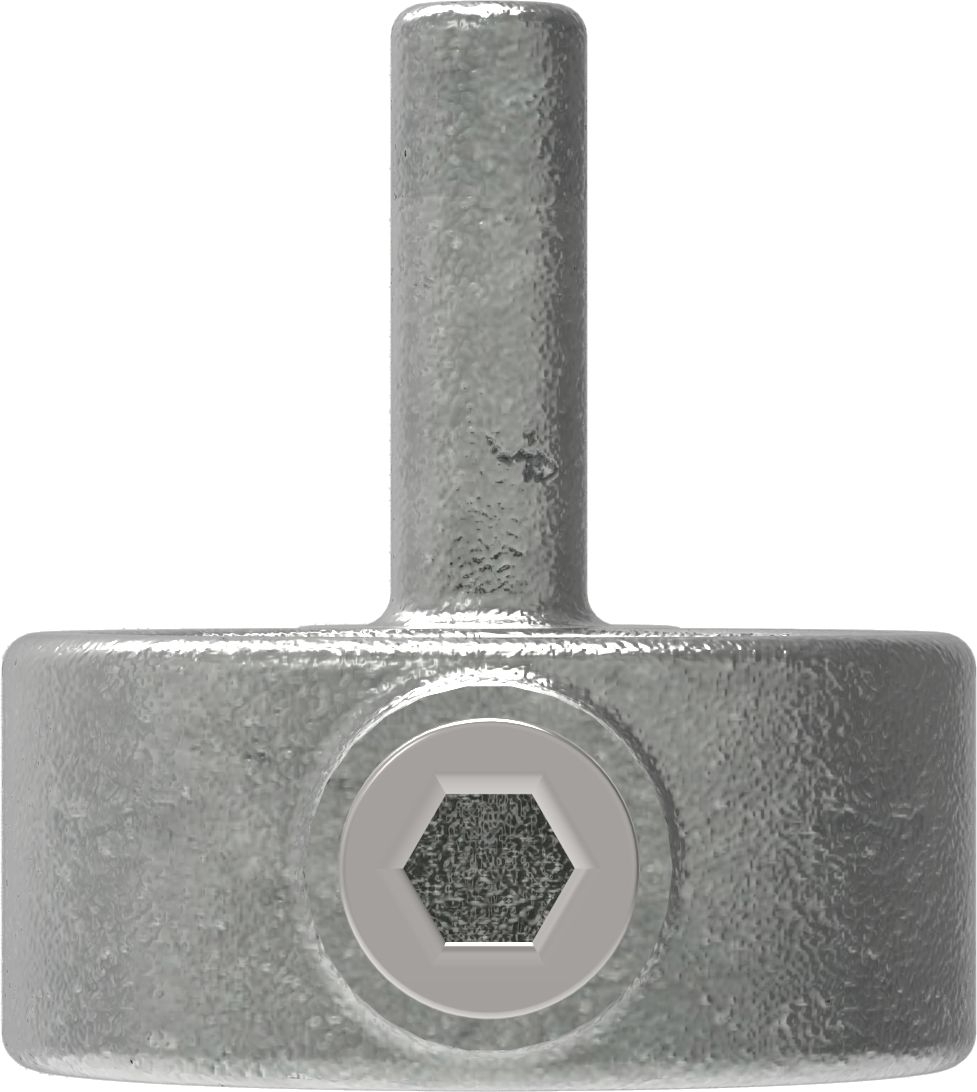

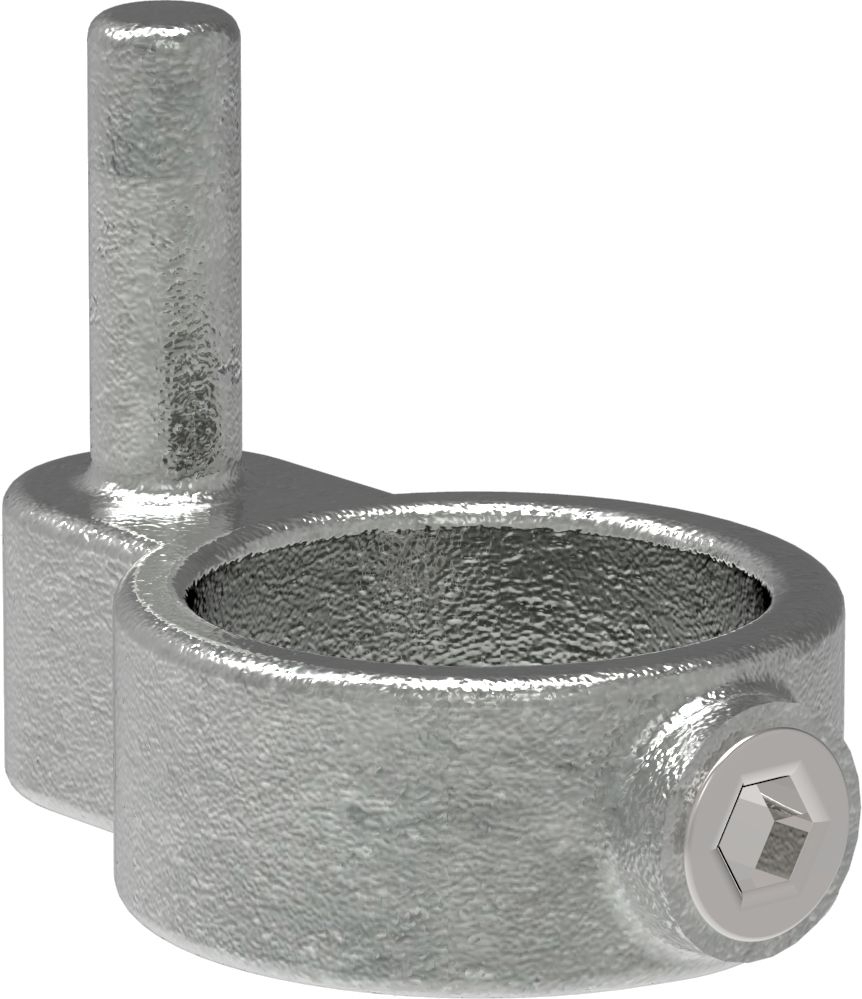

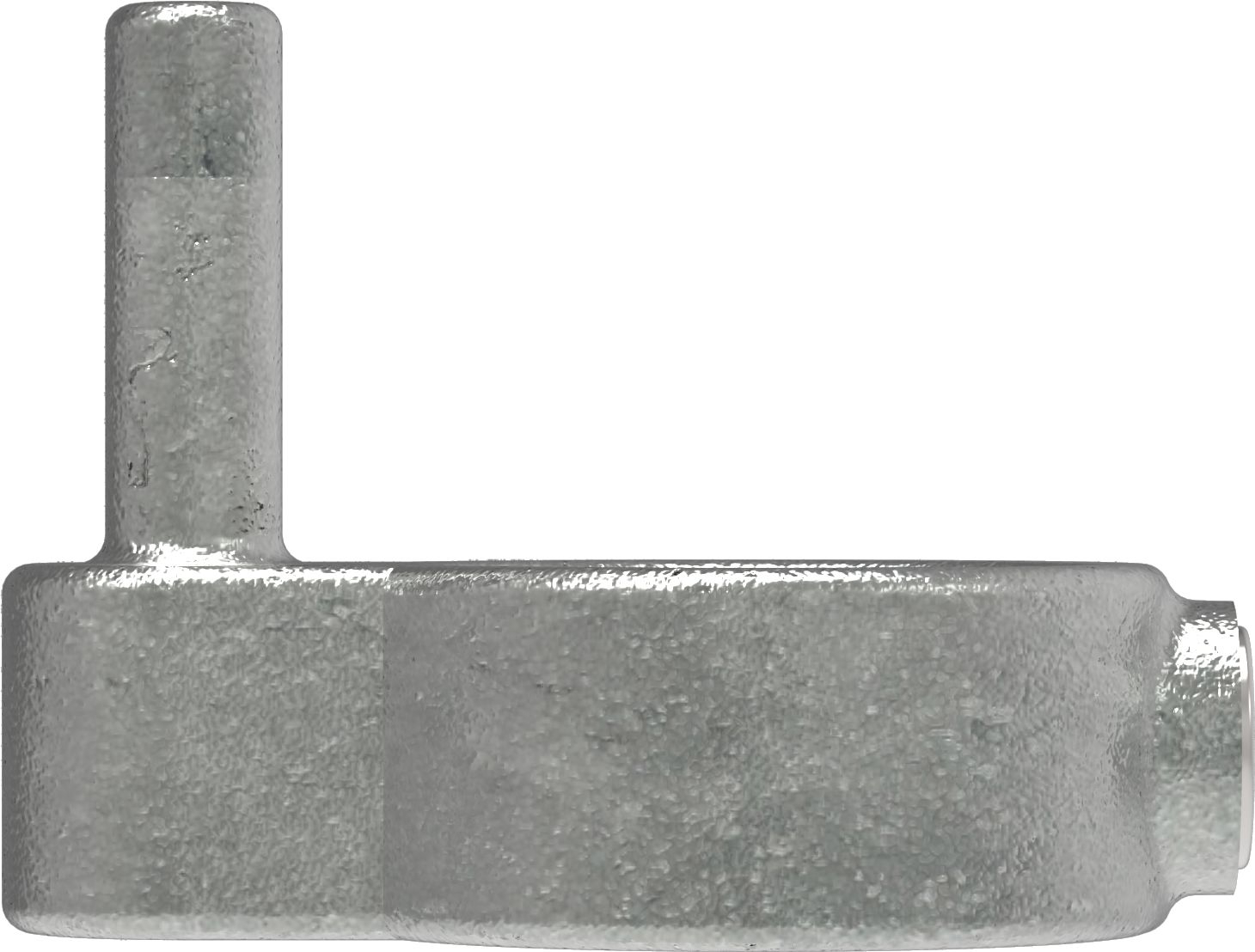

Pipe coupler | Adjustable ring spigot | 140 | 26.9 mm – 48.3 mm | 3/4" – 1 1/2" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 42,4 mm

FeNau GmbH

£3.43*

Prices exclude VAT and are subject to delivery charges

Available: 1-3 days

Rohraußendurchmesser

Ø 26,9 mm

Ø 33,7 mm

Ø 42,4 mm

Ø 48,3 mm

Stk

Stock: 94

Product number: 140C42

EAN: 4251412902284

Weight: 0.29 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Pipe coupler | Adjustable ring spigot | 140 | 26.9 mm – 48.3 mm | 3/4" – 1 1/2" | Hot-dip galvanised and electro-galvanised"

[ Contents ] 1x lower section including stainless steel clamping and cutting screws - (Item No.: 140A27) | Optimal corrosion protection against weathering - durable, stable and universally applicable (outer diameter in accordance with DIN EN ISO 6708 and EN 10255)

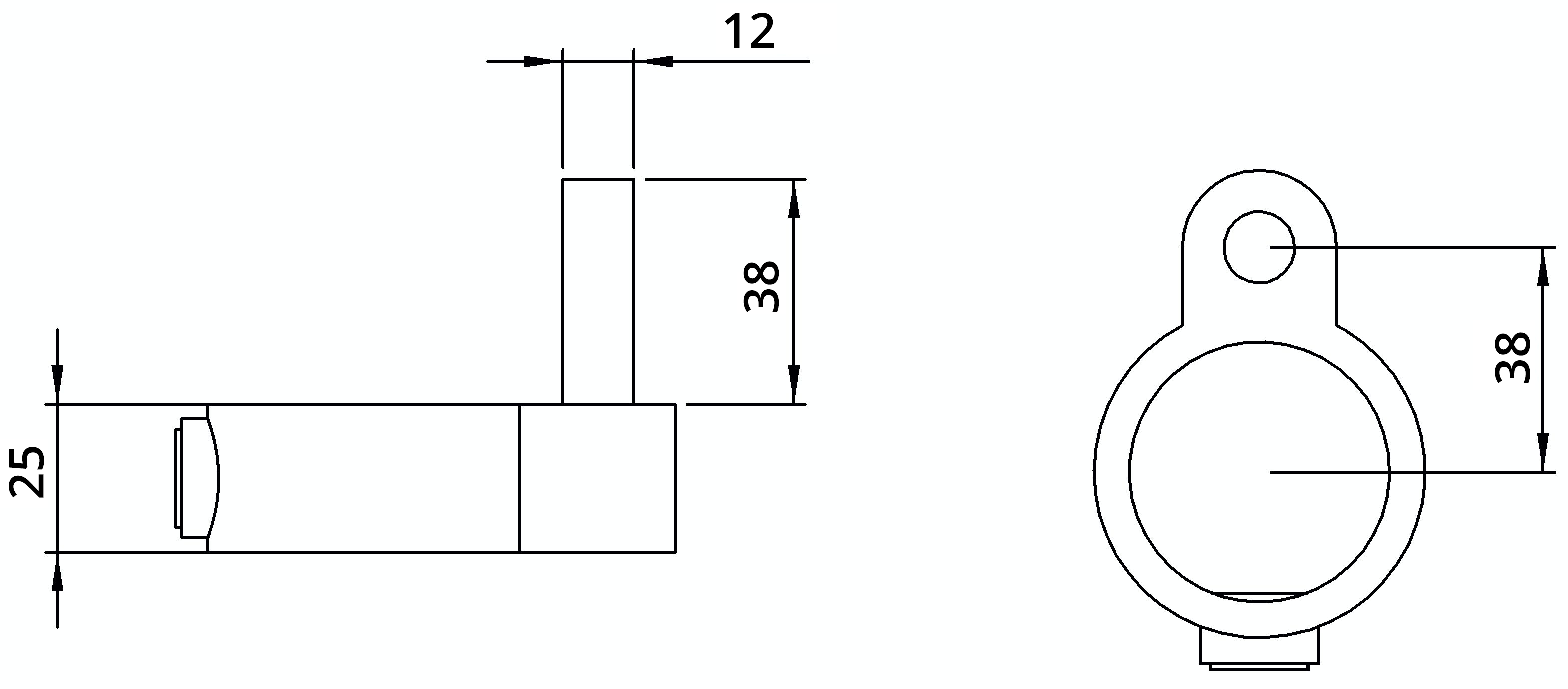

[ Technical details ] Dimensions (see illustration): For Ø 26.9 mm / ¾" Dimension (A): 30 mm / Dimension (B): 25 mm / Dimension (C): 13 mm / Dimension (D): 38 mm / Weight: 0.24 kg | Professional quality thanks to electro-galvanisation and hot-dip galvanisation - Material: malleable cast iron

[ Wrong size? - Suitable items ] (Item no.: 140A27) Dimensions: Ø 26.9 mm / ¾" | (Item no.: 140B34) Dimensions: Ø 33.7 mm / 1" | (Item No.: 140C42) Dimensions: Ø 42.4 mm / 1 ¼" | (Item No.: 140D48) Dimensions: Ø 48.3 mm / 1 ½"

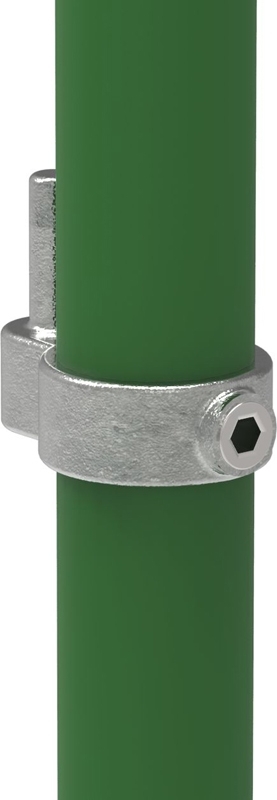

[ Application ] Wide range of applications | Gate and door hinge with swivel function in combination with (Item No.: cfg-138) | For steel structures, scaffolding, handrails, railings, shelving, etc. | Not the right tube connector? No problem, we stock a wide range of tube connectors in various shapes

For tube Dimension a Dimension b Dimension c Dimension d Allen key 26.9 mm 30 mm 25 mm 13 mm 38 mm 301AB 33.7 mm 33 mm 25 mm 13 mm 38 mm 301AB 42.4 mm 38 mm 25 mm 12 mm 38 mm 301CDE 48.3 mm 41 mm 25 mm 12 mm 38 mm 301CDE

Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	Ø 42.4mm (11⁄4″)

Product safety (GPSR)

Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230

Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.

All product safety information → · Your legal guarantee rights →
