Single pulley, size 1, MEA 10336310
FeNau GmbH
Stock:
1013
Product number:
60.0146.7
EAN:
4001990130858
Weight:
0.36 kg
Description
Product information "Single pulley, size 1, MEA 10336310"

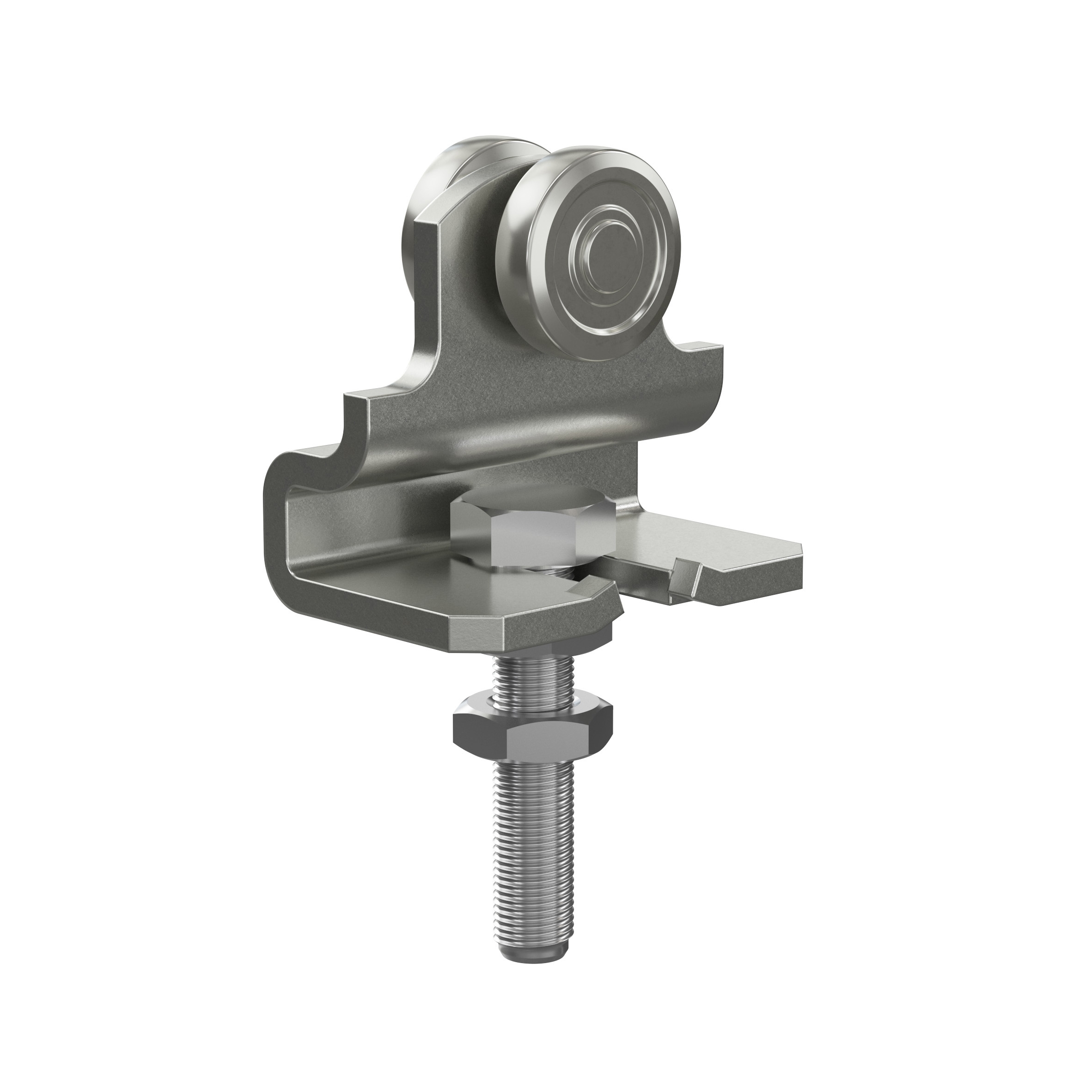

Single pulley, size 1
made of S235JR steel, electro-galvanised

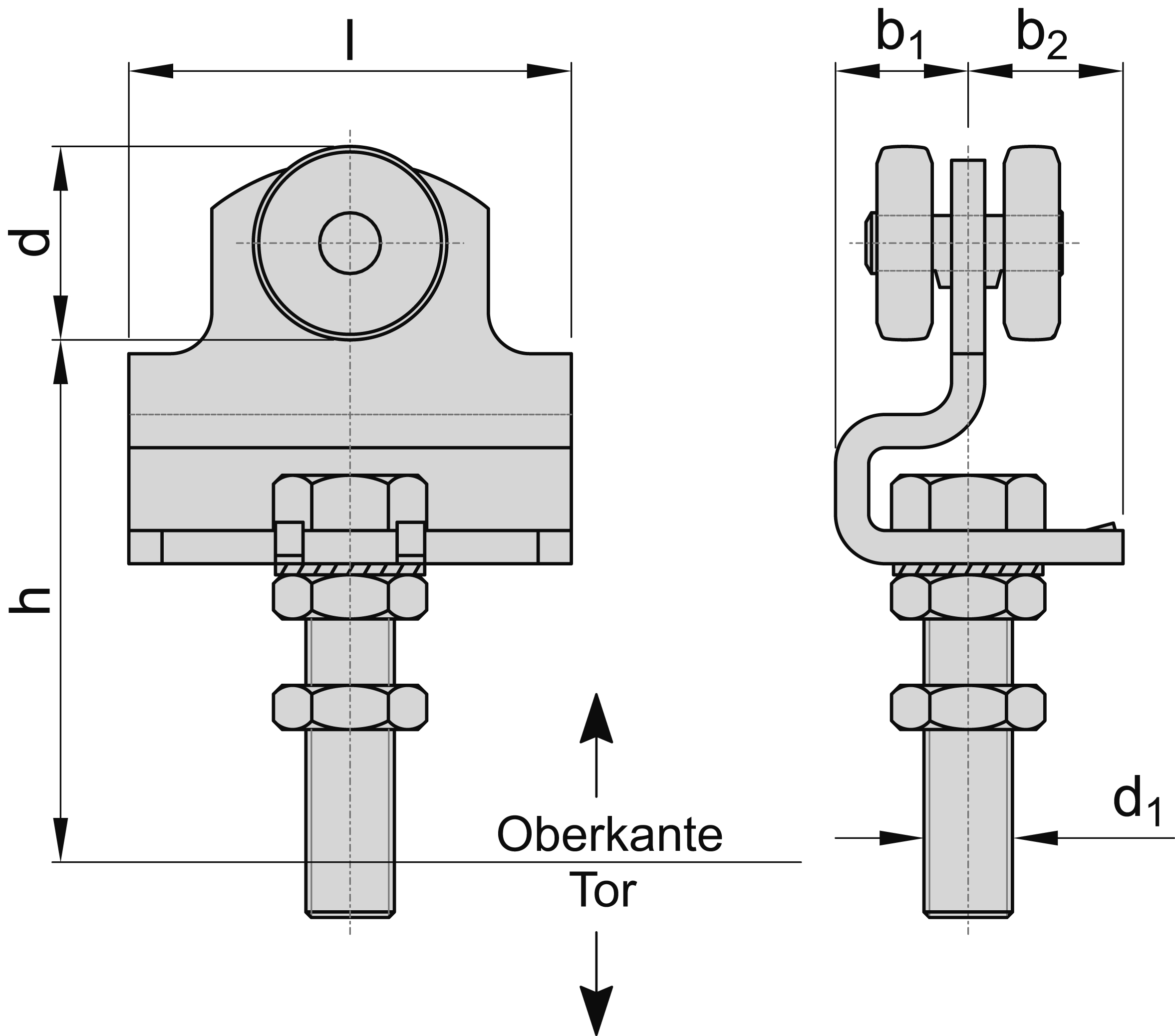

Dimension b1: 20 mm
Dimension b2: 24 mm
Dimension d: 28 mm
Thread: M 12
Dimension h: 57–78 mm
Dimension l: 60 mm
Dimension h = min./max. distance from bottom edge of roller to top edge of door
Properties
| Durchmesser: | Ø 28 mm |
|---|---|
| Form: | Einfachrolle |
| Gewinde : | M12 |
| Höhe: | 57-78 mm |
| Länge: | 60 mm |
| Oberfläche: | galvanisch verzinkt |
| Werkstoff: | Stahl |
