Single pulley, size 2, MEA 10336320
FeNau GmbH
Stock:
1002
Product number:
60.0147.7
EAN:
4001990130865
Weight:
0.7 kg
Description
Product information "Single pulley, size 2, MEA 10336320"

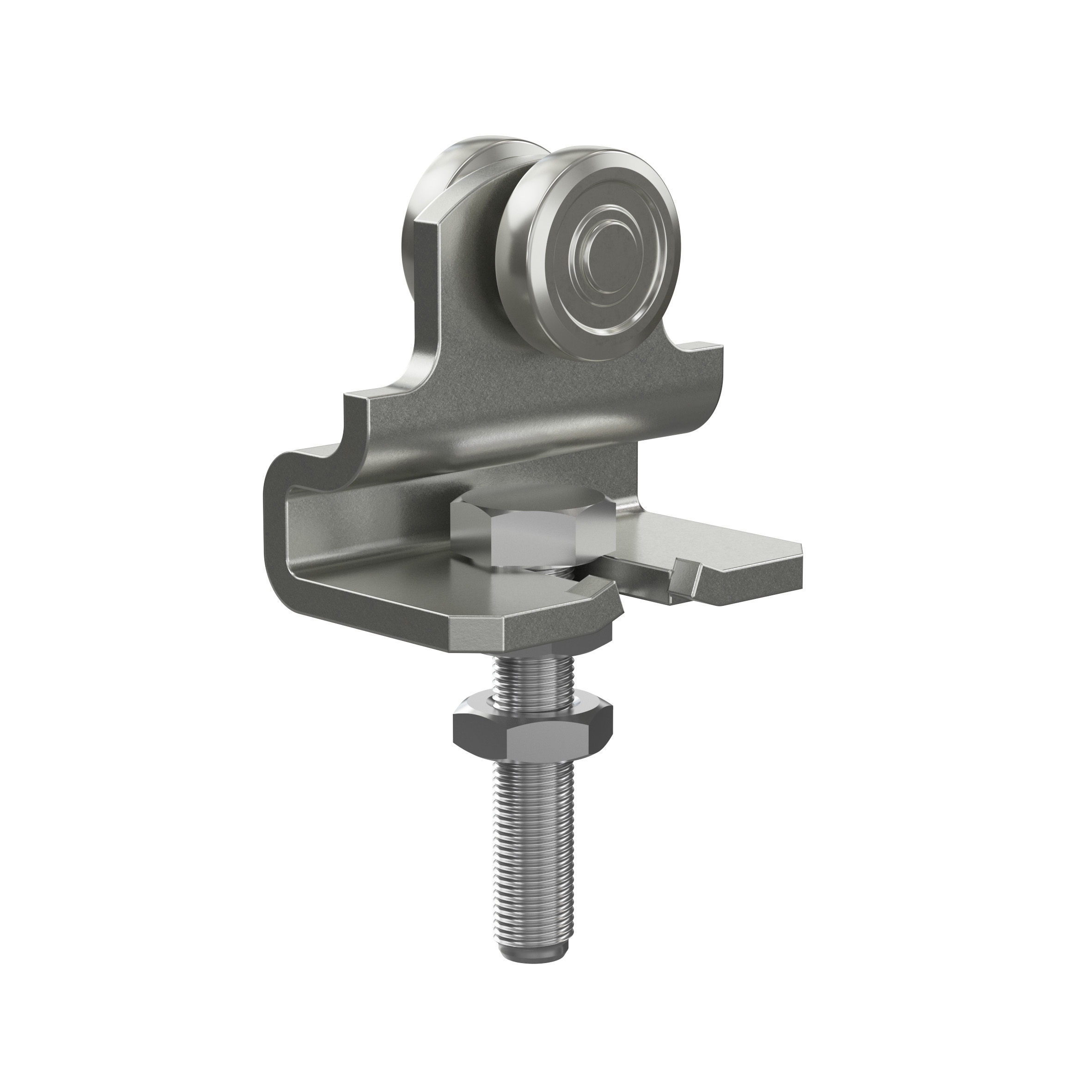

Single pulley, size 2
made of S235JR steel, electro-galvanised

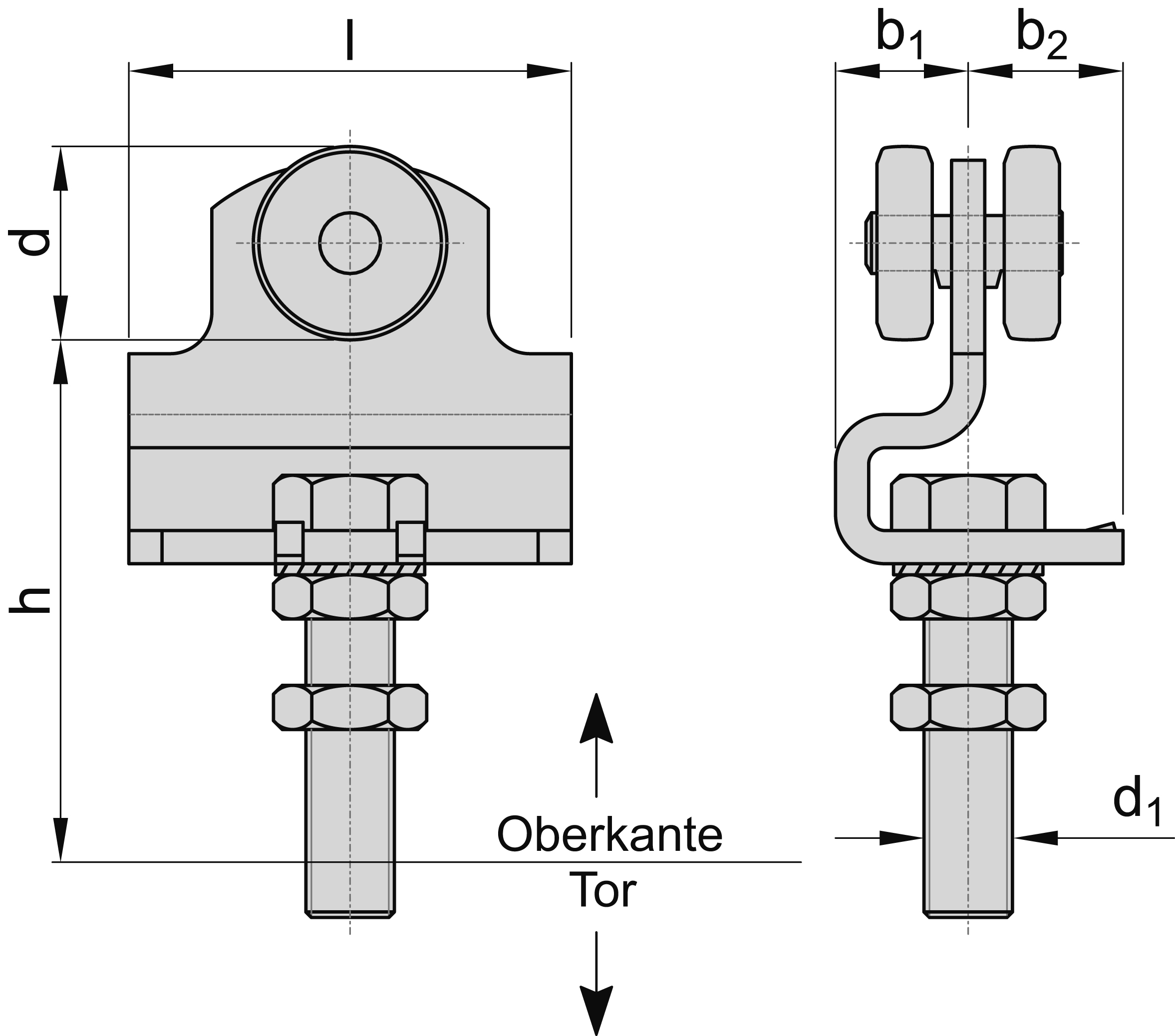

Dimension b1: 24 mm
Dimension b2: 28 mm
Dimension d: 35 mm
Thread: M 16
Dimension h: 65–90 mm
Dimension l: 80 mm
Dimension h = min./max. distance from bottom edge of roller to top edge of door
Properties
| Durchmesser: | Ø 35 mm |
|---|---|
| Form: | Einfachrolle |
| Gewinde : | M16 |
| Höhe: | 65-90 mm |
| Länge: | 80 mm |
| Oberfläche: | galvanisch verzinkt |
| Werkstoff: | Stahl |
