Single-sheave pulley, horizontally rotatable, size 1, MEA 10336342
FeNau GmbH
Stock:
992
Product number:
60.0155.7
EAN:
4251412906961
Weight:
0.36 kg
Description
Product information "Single-sheave pulley, horizontally rotatable, size 1, MEA 10336342"

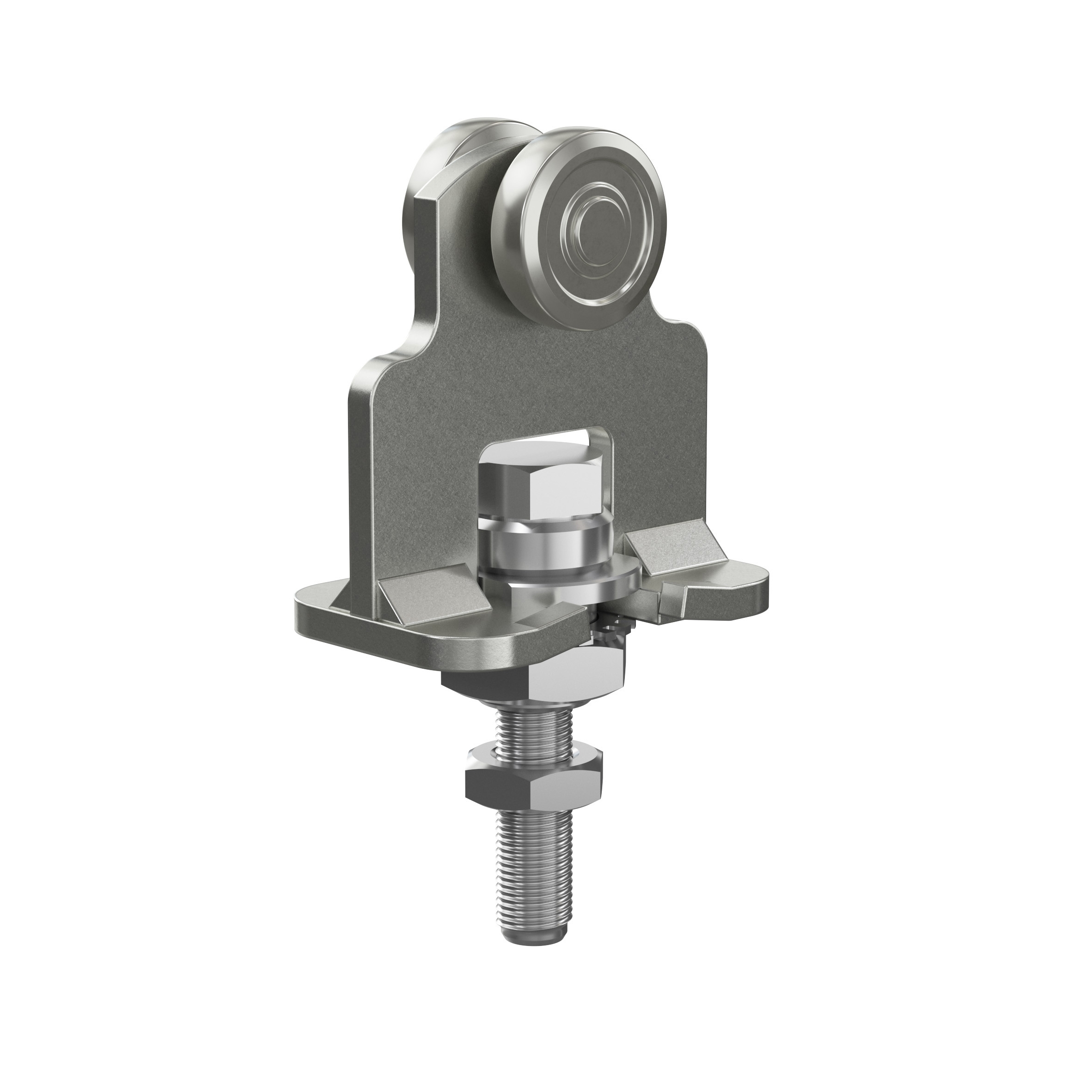

Single pulley, horizontally rotatable, size 1
Made of S235JR steel, electro-galvanised

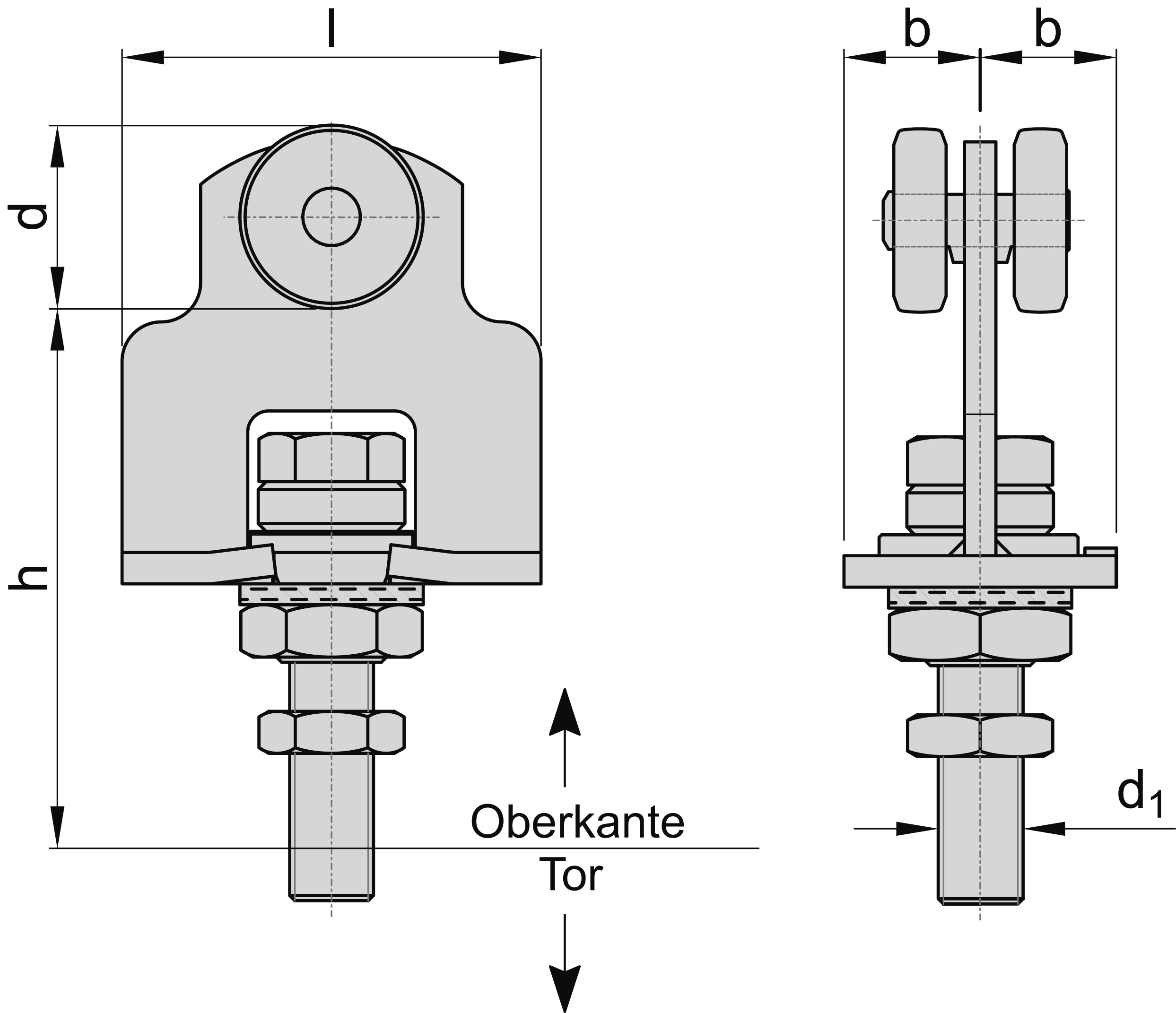

Dimension b: 22.5 mm
Dimension d: 28 mm
Thread: M 12
Dimension h: 59–80 mm
Dimension l: 60 mm
Dimension h = min./max. distance from bottom edge of roller to top edge of door
Properties
| Form: | Einfachrolle |
|---|
