Stainless steel V2A glass point holder, Ø 30 mm, flat – point holder

Skip the photo gallery
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4
Glaspunkthalter Edelstahl V2A Ø 30 mm flach – Punkthalter-10-5000.4

£3.69*

Prices include VAT, plus delivery charges

Available: 1-3 days

Stk
Stock: 8500
Product number: 10.5000.4
EAN: 4251412929861
Length: 30 mm
Weight: 0.09 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Stainless steel V2A glass point holder, Ø 30 mm, flat – point holder"

Glass point holder Ø 30 mm | for connection: flat | V2A

[ Technical details ] made of stainless steel 1.4301/V2A/AISI 304 – grain-finished

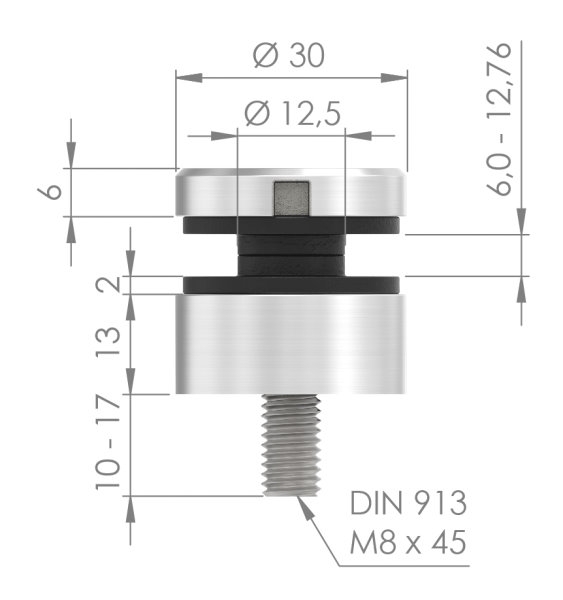

[ specific details ] Diameter: 30 mm; with threaded screw M8 x 45 mm; Clamping range: 6.0 – 12.76 mm
[ Further specific details ] Glass bore: min. 16 mm; Distance: wall to glass pane 15 mm; Rubber pad thickness 2 mm; Suitable for indoor and outdoor use

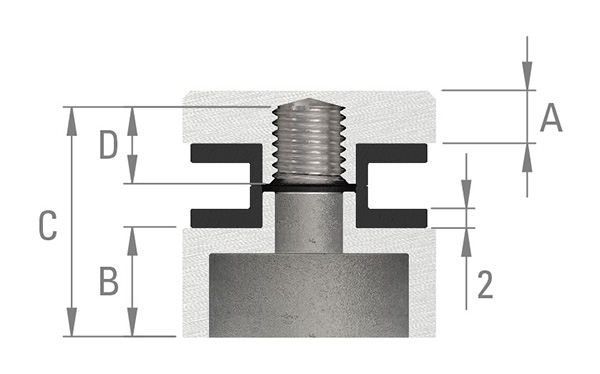

[ Dimensions ] Dimension D: 30 mm; Dimension h: 15 mm; Dimension M: 8 mm

Properties
Durchmesser: 30mm
Werkstoff: V2A (AISI304) 1.4301
Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: ■Flach
