T M0400 Direct Screw Connection | Grating height 30 mm | V2A (1.4301) | for GRP gratings
FeNau GmbH
Stock:
46
Product number:
GFK-B0400-302
EAN:
4060272117932
Description
Product information "T M0400 Direct Screw Connection | Grating height 30 mm | V2A (1.4301) | for GRP gratings"

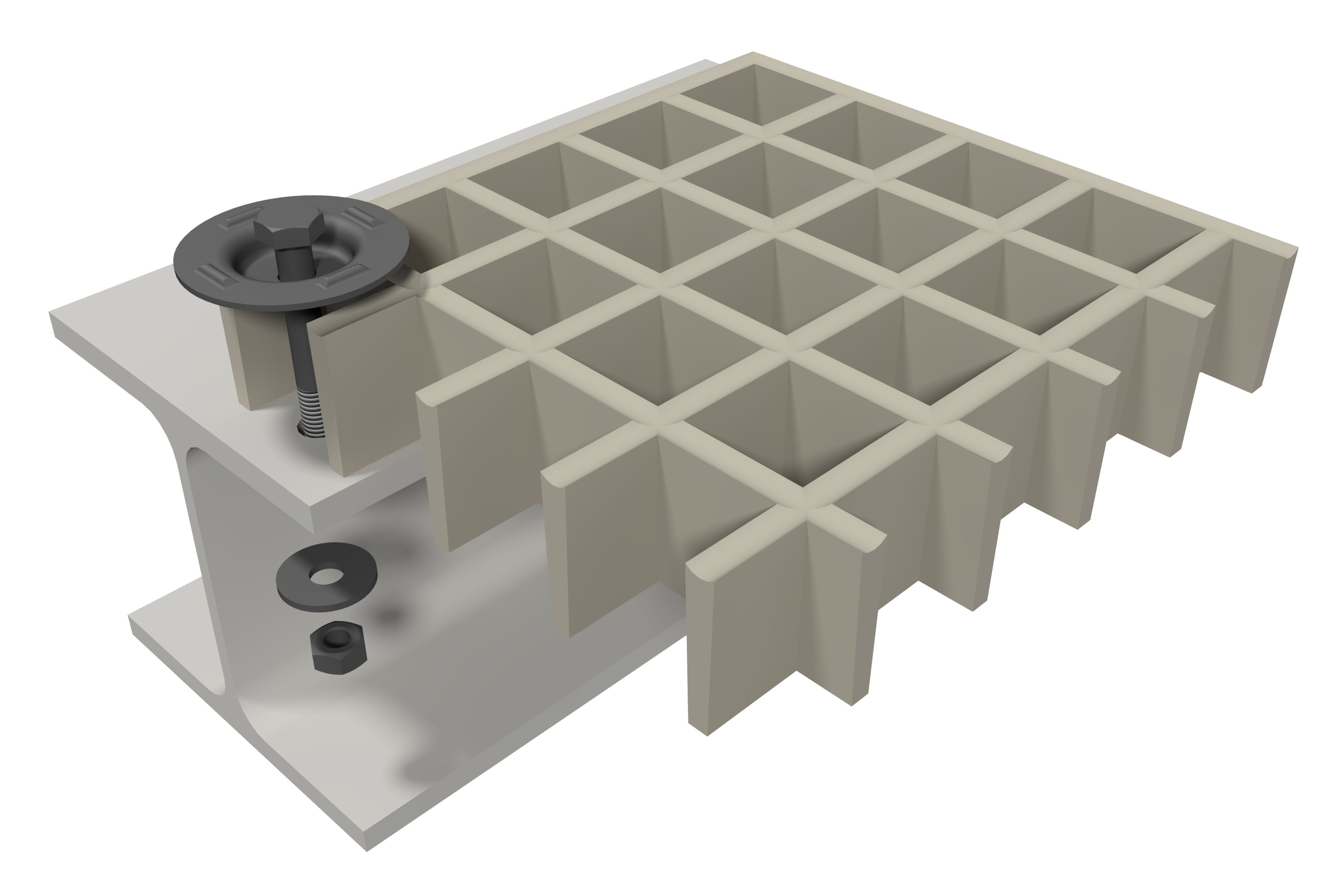

T M0400 direct-screw fastener for the positive-lock fastening of GRP gratings with a grating height of 30 mm, manufactured from V2A (1.4301). Suitable for MT 25x25, 26x26, 38x38, 40x40 mm; 13x13 and 20x20 mm with restrictions.
Technical data
| Type | Direct screw connection T M0400 |
|---|---|
| Grating height | 30 mm |
| Material | V2A (1.4301) |
| Suitable for | MT 25x25, 26x26, 38x38, 40x40 mm; 13x13 and 20x20 mm with restrictions |
| Standard | Corrosion protection in accordance with BGI/GUV 588/1 and DIN 24537-3 |
| Sales unit | 1 piece |
Your benefits
- Precisely fitted for a grating height of 30 mm
- Material: V2A (1.4301) – as corrosion-resistant as the grating itself
- Form-fit connection, no movement in the direction of support
- Supplied complete with bolt, washer and nut
- Fitting from above, without access to the underside
Typical applications
- Fastening of GRP gratings to steel and GRP substructures
Installation and notes
- In accordance with BGI/GUV 588/1 and DIN 24537-3, each grating must be secured by positive locking at at least four corner points; where there is a risk of falling, it must also be secured against lifting.
- V2A (1.4301) for normal environments, V4A (1.4571/1.4404) for chloride, seawater and chemicals.
- The mesh spacing and grating height must be suitable for the grating – if in doubt, please contact us.
Properties
| Höhe: | 30 |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 25 x 25 mm, 26 x 26 mm, 38 x 3 |
| Werkstoff: | Edelstahl V2A (1.4301) |
