T M0400 direct screw connection | Grating height 60 mm | V4A (1.4571/1.4404) | for GRP gratings
FeNau GmbH
Stock:
13
Product number:
GFK-B0400-604
EAN:
4060272629060
Description
Product information "T M0400 direct screw connection | Grating height 60 mm | V4A (1.4571/1.4404) | for GRP gratings"

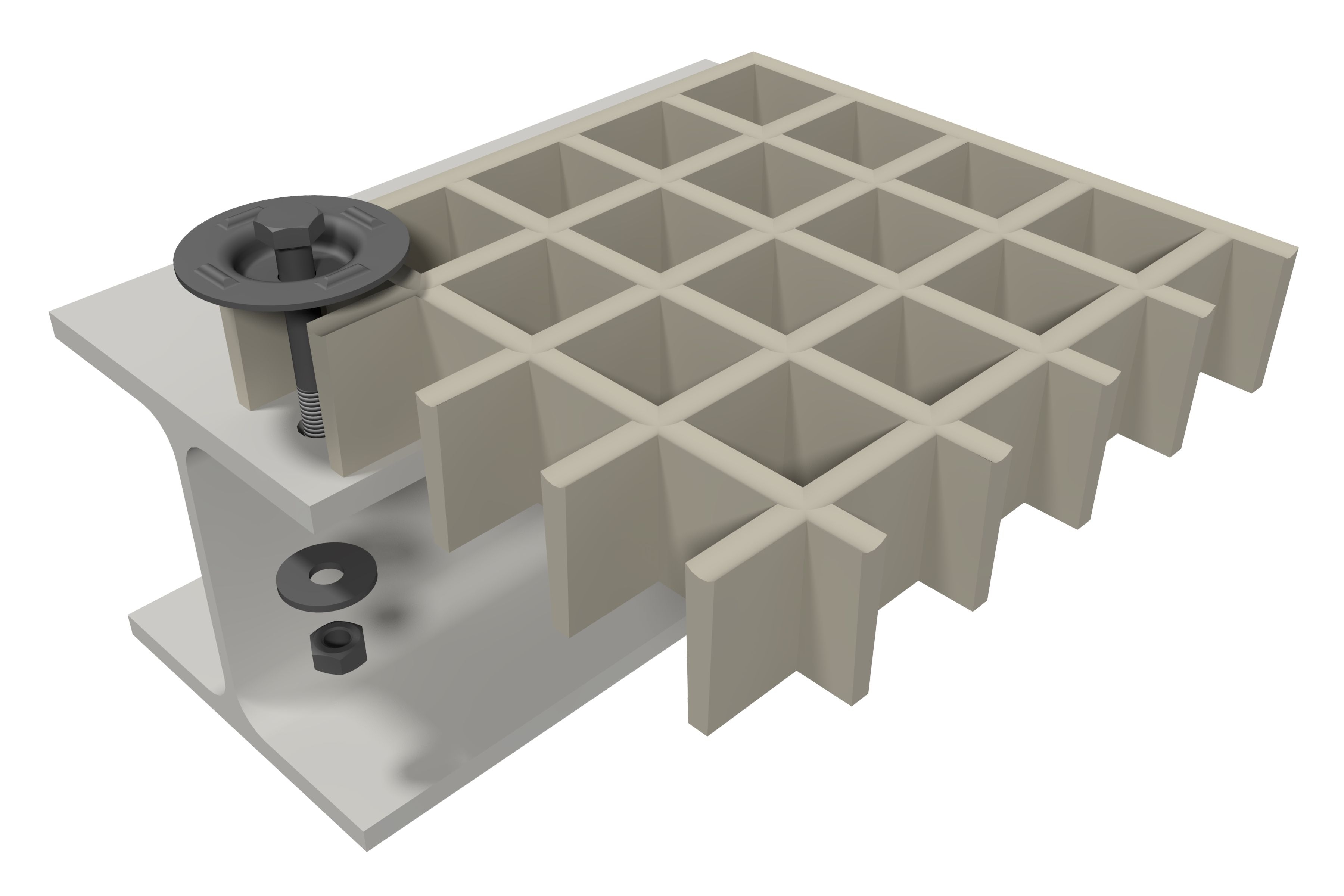

T M0400 direct screw-in fitting for the positive-lock fastening of GRP gratings with a grating height of 60 mm, manufactured from V4A (1.4571/1.4404). Suitable for MT 25x25, 26x26, 38x38, 40x40 mm; 13x13 and 20x20 mm with restrictions.
Technical data
| Type | Direct screw-in connection T M0400 |
|---|---|
| Grating height | 60 mm |
| Material | V4A (1.4571/1.4404) |
| Suitable for | MT 25x25, 26x26, 38x38, 40x40 mm; 13x13 and 20x20 mm with restrictions |
| Standard | Corrosion protection in accordance with BGI/GUV 588/1 and DIN 24537-3 |
| Sales unit | 1 piece |
Your benefits
- Precisely fitted for a grating height of 60 mm
- Material: V4A (1.4571/1.4404) – as corrosion-resistant as the grating itself
- Form-fit connection, no slippage in the direction of load-bearing
- Supplied complete with bolt, washer and nut
- Fitting from above, without access to the underside
Typical applications
- Fastening of GRP grating to steel and GRP substructures
Installation and notes
- In accordance with BGI/GUV 588/1 and DIN 24537-3, each grating must be fixed by positive locking at at least four corner points; where there is a risk of falling, it must also be secured against lifting.
- V2A (1.4301) for normal environments, V4A (1.4571/1.4404) for chloride, seawater and chemicals.
- The mesh spacing and grating height must be suitable for the grating – if in doubt, please ask us.
Properties
| Höhe: | 60 |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 25 x 25 mm, 26 x 26 mm, 38 x 3 |
| Werkstoff: | Edelstahl V4A (1.4571/1.4404) |
