Triple ceiling bracket | for up to three track runs | Size 3 MEA 10335833
Product information "Triple ceiling bracket | for up to three track runs | Size 3 MEA 10335833"

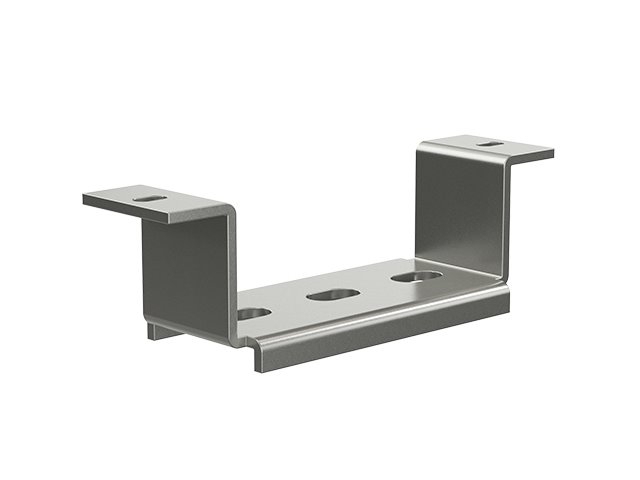

MEA triple ceiling bracket, size No. 3 | Item No. 10335833
The ceiling bracket supports the running pipe beneath the ceiling. When used in conjunction with H/S sockets, the system can be adjusted both vertically and laterally.
This original component from MEA Metal Applications is available in Size No. 3: hot-dip galvanised finish.
Why choose this component
- Electro-galvanised – protected against the elements for standard outdoor use
- Dimensionally compatible with all MEA components in size No. 3
Application and installation
The bracket is fixed to the ceiling; the fixing materials must be selected by the client according to the substrate. H/S sleeves must be ordered separately.
Technical data
| Manufacturer | MEA Metal Applications |
|---|---|
| MEA item number | 10335833 |
| Product type | Triple ceiling bracket |
| MEA size | No. 3 |
| Width | 104 mm |
| Height | 101 mm |
| Length | 322 mm |
| Material/wall thickness | 6 mm |
| Bore Ø | 21 mm |
| Material | Steel |
| Surface | electro-galvanised |
| Weight per piece | 2.1 kg |
| Further MEA dimensions (mm) | w 104 · d 21 · h 101 · l 322 · t 6 · v 30–105 |
Contents
1 ceiling bracket. H/S sleeves and fixing materials are not included.
Compatible components from the MEA system
To ensure the system operates correctly, all components must have the same MEA size. These items are compatible:
- H/S socket size No. 3 – Item No. 60.0025.7
- Pipe, size No. 3 – Item No. 60.0003.7
What to look out for when selecting components
All components of an MEA sliding gate system are designed to work together. Ensure that the guide tube, roller assembly, fixings and accessories are all the same MEA size. All dimensions are approximate figures according to MEA and may vary within the usual technical tolerances.
Not sure which size is right for your gate? Let us know the gate’s weight, width and installation type – we’ll put together the right components for you.
| Bohrung Ø in mm: | 21 |
|---|---|
| Form: | Deckenkonsole dreifach |
| Höhe: | 101 mm |
| Länge: | 322 mm |
| Oberfläche: | galvanisch verzinkt |
| Wandstärke | Materialstärke: | 6 mm |
| Werkstoff: | Stahl |
| Breite: | 104 mm |
