Triple wall bracket, sizes 1 and 2 | for up to three rail sets | MEA 10335440
Product information "Triple wall bracket, sizes 1 and 2 | for up to three rail sets | MEA 10335440"

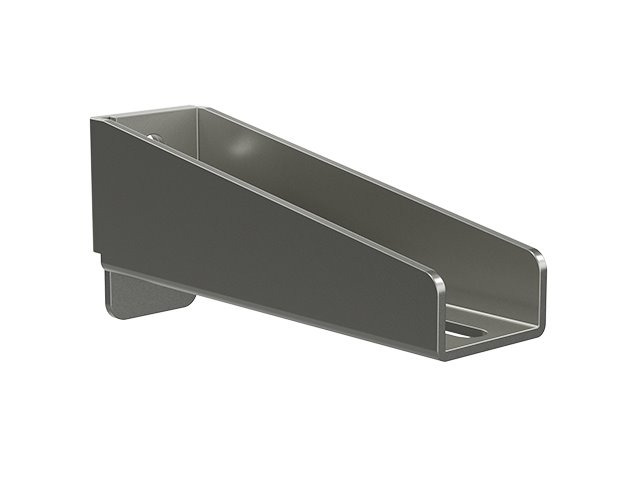

MEA triple wall bracket, sizes 1 and 2 | Item no. 10335440
The wall bracket supports the running pipe at a distance from the wall. When used in conjunction with H/S sockets, the system can be adjusted both vertically and horizontally after installation.
This original component from MEA Metal Applications is available in sizes No. 1 + 2: hot-dip galvanised finish.
Why choose this component
- Electro-galvanised – protected against the elements for standard outdoor use
- Dimensionally compatible with all MEA components in sizes No. 1 and 2
Application and installation
The bracket is anchored to the wall using wall plugs; the fixing materials must be selected by the customer to suit the substrate. H/S sleeves must be ordered separately.
Technical data
| Manufacturer | MEA Metal Applications |
|---|---|
| MEA item number | 10335440 |
| Product type | Triple wall bracket |
| MEA size | No. 1 + 2 |
| Width | 72 mm |
| Height | 111 mm |
| Length | 255 mm |
| Bore Ø | 17 mm |
| Material | S235JR steel |
| Surface | electro-galvanised |
| Weight per piece | 1.85 kg |
Contents
1 wall bracket. H/S sleeves and wall plugs or screws are not included.
Compatible components from the MEA system
To ensure the system operates correctly, all components must be of the same MEA size. These items are compatible:
- H/S coupling sizes 1 + 2 – Item No. 60.0023.7
- Pipe, sizes 1 + 2 – Item No. 60.0001.7
What to look out for when selecting components
All components of an MEA sliding gate system are designed to work together. Ensure that the guide rail, roller assembly, fixings and accessories are all the same MEA size. All dimensions are approximate figures according to MEA and may vary within the usual technical tolerances.
Not sure which size is right for your gate? Tell us the gate’s weight, width and installation type – we’ll put together the right components for you.
| Bohrung Ø in mm: | 17 |
|---|---|
| Form: | Wandkonsole dreifach |
| Höhe: | 111 mm |
| Länge: | 255 mm |
| Oberfläche: | galvanisch verzinkt |
| Werkstoff: | Stahl |
| Breite: | 72 mm |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
