V2A glass clamp for 42.4 mm diameter tubing, for 8–12.76 mm ground glass, set of 4
Product information "V2A glass clamp for 42.4 mm diameter tubing, for 8–12.76 mm ground glass, set of 4"
Set of glass clamps made from V2A stainless steel for round posts
This set contains four high-quality glass clamps, also known as glass infill holders, which are specially designed for mounting on round balusters. Manufactured from robust V2A stainless steel (AISI 304) with a finely polished finish, these clamps offer a secure and stylish solution for fixing glass panels to railings, balconies or staircases. They are an essential element for modern architectural projects that prioritise transparency, safety and clean lines.
Technical details and compatibility
The glass clamps are precisely designed for use with the most common dimensions in railing construction. They ensure a firm and reliable hold on the glass infill and contribute to the stability of the entire structure.
- Material: V2A stainless steel (AISI 304)
- Surface: Polished
- Suitable for posts: Round tube with Ø 42.4 mm
- Suitable glass thickness: 8 mm, 8.76 mm, 10 mm, 10.76 mm, 12 mm, 12.76 mm
- Model: 26
Important note: The rubber seals suitable for your glass thickness are not included in the delivery and must be ordered separately to ensure optimal clamping.

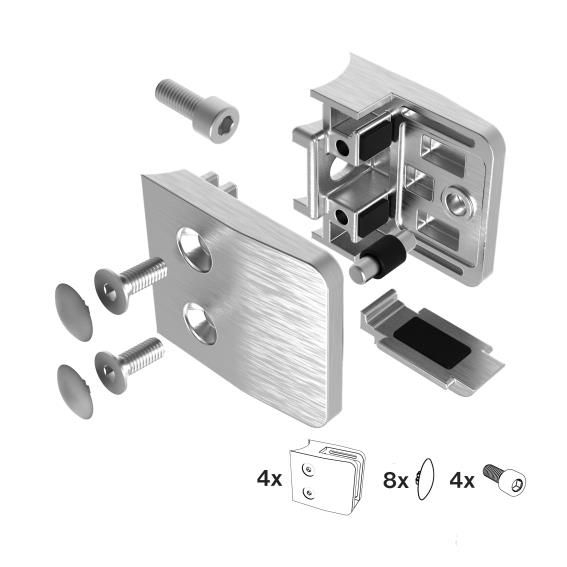

Contents of the set
The set is supplied ready for installation and contains all the necessary screws for fixing the clamps:
- 4x glass clamp (Model 26)
- 8x countersunk head screw A2 DIN7991 M6x16
- 8x PVC cover caps in grey
- 4x pan-head screw A2 DIN 7380 M8x20
| Höhe: | 52 mm |
|---|---|
| Länge: | 52 mm |
| Werkstoff: | V2A |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | 42,4 mm |
| Breite: | 32 mm |
