V4A glass clamp for 42.4 mm diameter tubing, polished, set of 4
Product information "V4A glass clamp for 42.4 mm diameter tubing, polished, set of 4"
Sturdy fixings for your glass balustrade – set of 4
This set contains four high-quality Model 22 glass clamps, made from durable V4A stainless steel (AISI 316). Thanks to their shiny, polished finish, the clamps give your railing a modern and elegant look. The V4A material is particularly corrosion-resistant and is therefore ideal for outdoor use, including in coastal areas or in environments with high humidity.
Technical details and compatibility
The glass clamps are specially designed for mounting on round balusters and ensure a secure and stable fixing of your glass or panel infills.
- Product type: Glass clamp (Model 22)
- Material: V4A stainless steel (AISI 316)
- Finish: Glossy / Polished
- Connection: For round posts Ø 42.4 mm
- Suitable panel thickness: 8 mm, 8.76 mm, 10 mm, 10.76 mm
- Fixing: Clamp connection (can be secured with optional dowels)

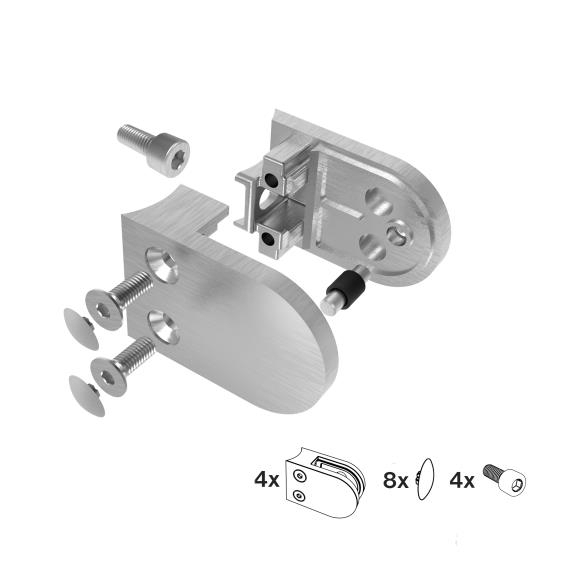

Comprehensive scope of delivery
The set is supplied ready for assembly and contains all the necessary screws for installation. Please note that the rubber seals for the glass infill are not included in the scope of delivery. These must be ordered separately according to the selected glass thickness.
- 4x glass clamp (unassembled)
- 8x countersunk head screw A2 (DIN 7991, M6x15)
- 8x PVC screw covers (glossy)
- 4x pan-head screw A2 (DIN 7380, M8x20) for post mounting
| Höhe: | 45 mm |
|---|---|
| Länge: | 63 mm |
| Werkstoff: | V4A |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | 42,4 mm |
| Breite: | 28 mm |
Accessories
Available, : Lieferzeit 5-10 Werktage
Available, : 1-3 days
