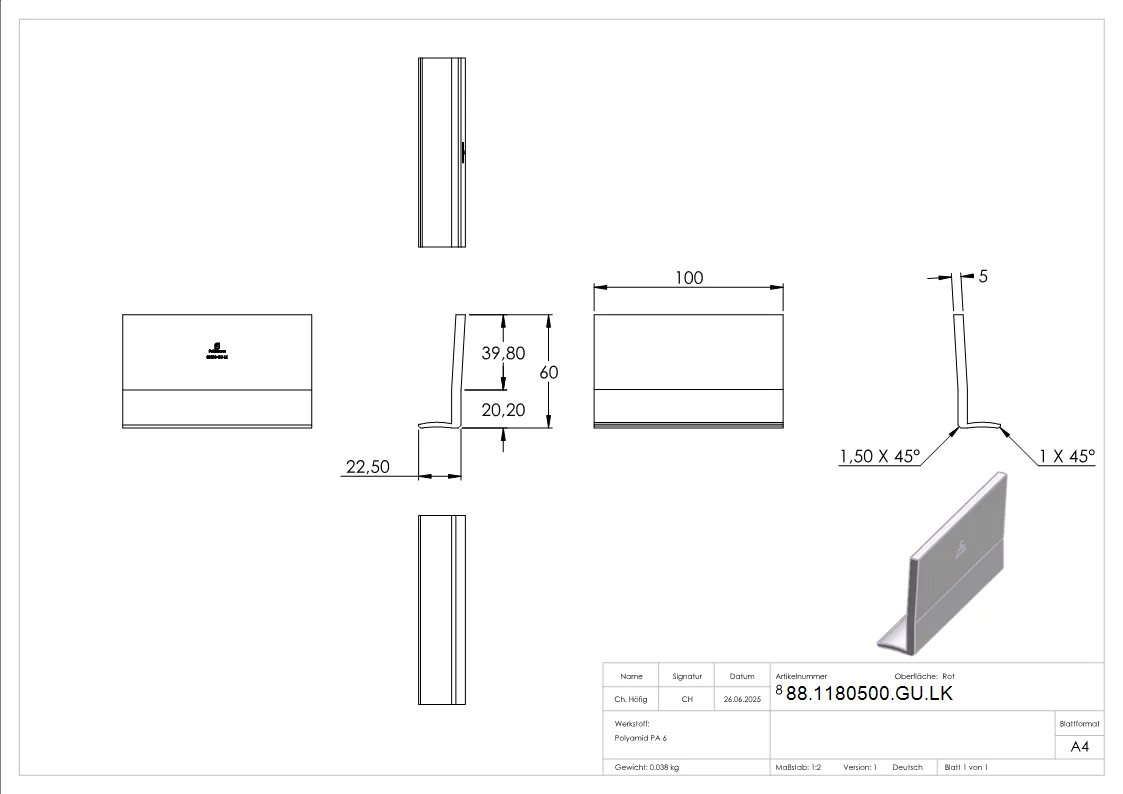

L-shaped wedge for insertion into the profile, for fitting kit 80500-GU

L-Keil zum Einlegen ins Profil- fuer Montage-Set 80500-GU-88-1180500-GU.LK

£3.00*

Prices include VAT, plus delivery charges

Available: Lieferzeit 5-10 Werktage

Stk

Stock: 288

Product number: 88.1180500.GU.LK

EAN: 4067727008425

Weight: 0.059 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "L-shaped wedge for insertion into the profile, for fitting kit 80500-GU"

L-shaped wedge for insertion into the profile, for glass panes 12.76–13.52 mm, red, for rubber set 80500-GU

Accessories

Alu-Profil - MASSIV2 - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2200.6

Stk

12.2200.6

Aluminium profile | MASSIV2 | Length: 6000 mm | Side mounting | Aluminium

Aluminium profile | MASSIV2 | Length: 6000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 11.21 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 5-10 Werktage

£942.13*

Alu-Profil - MASSIV2 - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2201.6

Stk

12.2201.6

Aluminium profile | MASSIV2 | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | MASSIV2 | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 11.21 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 5-10 Werktage

£483.96*

Alu-Profil - MASSIV2 - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2204.6

Stk

12.2204.6

Aluminium profile | MASSIV2 | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | MASSIV2 | Length: 6000 mm | Surface-mounted installation | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 7.08 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 5-10 Werktage

£612.66*

Alu-Profil - MASSIV2 - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2205.6

Stk

12.2205.6

Aluminium profile | MASSIV2 | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | MASSIV2 | Length: 3000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 7.08 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

£330.90*

Alu-Profil - KOMPAKT - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2213.6

Stk

12.2213.6

Aluminium profile | KOMPAKT | Length: 6000 mm | Side mounting | Aluminium

Aluminium profile | KOMPAKT | Length: 6000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 6000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 4.88 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 5-10 Werktage

£458.21*

Alu-Profil - KOMPAKT - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2212.6

Stk

12.2212.6

Aluminium profile | KOMPAKT | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | KOMPAKT | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 3000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 4.88 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 5-10 Werktage

£259.42*

Alu-Profil - KOMPAKT - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2214.6

Stk

12.2214.6

Aluminium profile | KOMPAKT | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | KOMPAKT | Length: 6000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 6000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 6.55 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 5-10 Werktage

£612.66*

Alu-Profil - KOMPAKT - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2215.6

Stk

12.2215.6

Aluminium profile | KOMPAKT | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | KOMPAKT | Length: 3000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 3000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 6.55 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 5-10 Werktage

£346.43*

Keil - fuer Aluprofil - fuer Glas 12-76-13-52 mm-12-3086.6

Stk

12.3086.6

Wedge | for aluminium profile | for glass 12.76–13.52 mm

Wedge | for aluminium profile | for glass 12.76–13.52 mm[specific details] for glass: 12.76–13.52; colour: red[further specific details] for rubber set 12.2220.0

Available, : Lieferzeit 5-10 Werktage

£2.41*
