Stainless steel swivel pin Ø 14 x 76 mm – adjustable | External and internal threads (V4A)

FeNau GmbH

Edelstahl Gelenkstift Ø 14 x 76 mm - verstellbar - Aussen - und Innengewinde -V4A-11-2182.1

£5.13*

Prices exclude VAT and are subject to delivery charges

Available: Lieferzeit 5-10 Werktage

Stk

Stock: 149

Product number: 11.2182.1

EAN: 4251412930096

Length: 94 mm

Weight: 0.09 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

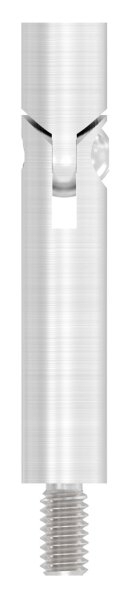

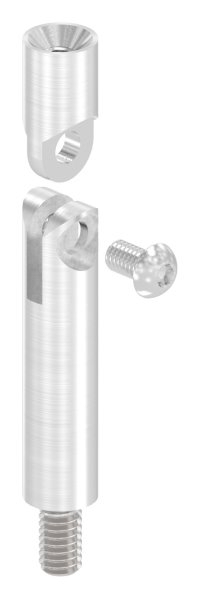

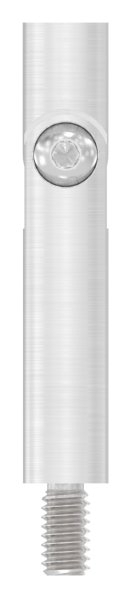

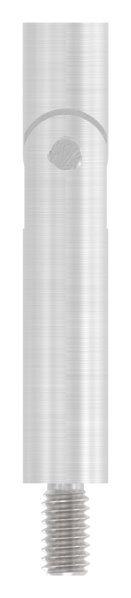

Product information "Stainless steel swivel pin Ø 14 x 76 mm – adjustable | External and internal threads (V4A)"

Pin | Dimensions: 76 x 14 mm | with joint | external and internal thread | V4A

[ Technical details ] made of stainless steel 1.4401/V4A/AISI 316 – 240-grit finish
[ Specific details ] Length (excluding thread): 76 mm; Diameter: 14 mm; External thread: M8 x 15 mm; Internal thread: M6 x 15 mm

Durchmesser:	Ø 14 mm
Form:	Stift
Gewinde :	Außen- & Innengewinde
Höhe:	76 mm
Werkstoff:	V4A

Product safety (GPSR)

Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230

Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.

All product safety information → · Your legal guarantee rights →

Accessories

Handlaufanschlussplatte 63x25x4 mm fuer Rohr Ø 42-4 mm V4A-11-2142.1

Stk

11.2142.1

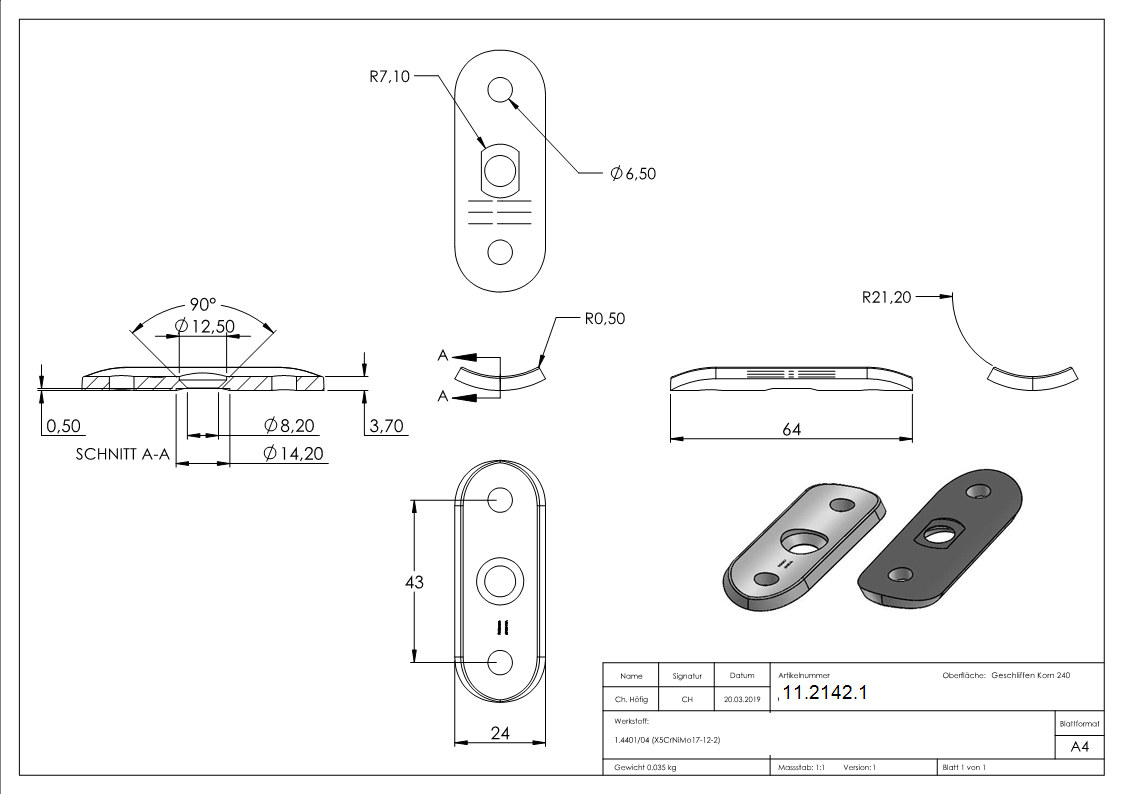

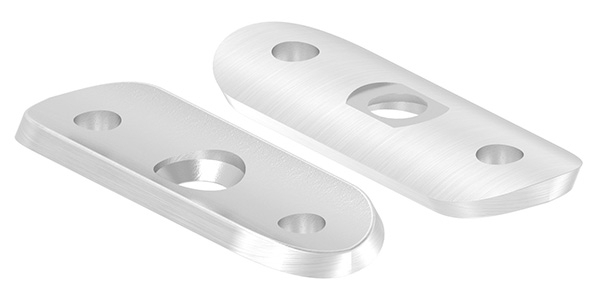

Handrail mounting plate 63x25x4 mm for Ø 42.4 mm V4A tubing

Handrail mounting plate 63x25x4 mm for Ø 42.4 mm pipe, V4A Made of stainless steel 1.4401/V4A/AISI 316 3 holes: 2 x Ø 6.5 mm, 1 x approx. Ø 8 mm Centre hole countersunk for M6 countersunk screw

Available, : Lieferzeit 5-10 Werktage

£1.88*

Senkkopfschraube V4A M6x10 Innensechskant ISO 10642-88-1158315-V4A.10

Stk

88.1158315.V4A.10

Countersunk screw M6 x 10, A4, ISO 10642

M6 x 10 countersunk screw with hexagon socket, A4, ISO 10642

Available, : Lieferzeit 5-10 Werktage

£0.39*

Einsteckkappe V4A Edelstahl fuer Rohr Ø 42-4 x 2-0 mm mit M8 Gewinde gewoelbt zum Einschlagen-11-5231.1

Stk

11.5231.1

Pipe plug for Ø 42.4 x 2.0 mm, slightly domed, with M8 thread for driving in, V4A

Slightly domed pipe plug, cast V4A with M8 thread for Ø 42.4 x 2.0 mm Made of V4A stainless steel (1.4401/04), cast/hollow – 240-grit polished with knurling for driving in , with M8 internal thread for pipe outer diameter 42.4 mm with wall or material thickness 2.0 mm Dimension A: 6 mm Dimension B: 13.5 mm Weight: 0.06 kg

Available, : Lieferzeit 5-10 Werktage

£3.11*

Kugelring V4A fuer Rohr Ø 42-4 mm- Ø 55 mm fuer Handlaufhalter-88-1150241.V4A

Stk

88.1150241.V4A

Ball ring for handrail bracket for 42.4 mm pipe, V4A

Ball ring for handrail bracket for 42.4 mm pipe, Ø 55 mm, V4A

Available, : Lieferzeit 5-10 Werktage

£6.06*
